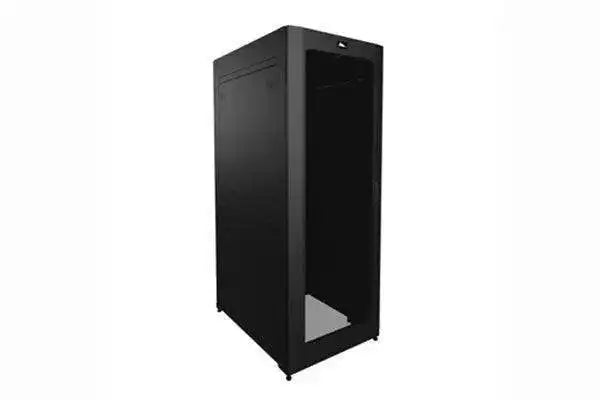

Middle Atlantic SNE27D-4242-P1 – 42U Security Network Enclosure, 27W x 42D

Product Overview

The Middle Atlantic SNE27D-4242-P1 is a fully configured 42U security network enclosure built for digital, IP-based security systems with high-density cabling, network equipment, and servers. Its 27-inch width and 42-inch overall depth give installers extra room for deep network hardware and structured cabling. The SNE Series Digital configuration ships with passive front-to-rear ventilation, locking panels, and rackrail pre-installed, so commercial deployment teams can rack equipment on day one. It is a strong fit for IT rooms, security head-ends, and data center installations across corporate and government facilities.

Product Description

This SNE Series Digital enclosure arrives configured for IP-based security and network infrastructure rather than as a bare frame. The 70% open area vented front door and 70% open area split rear door support passive front-to-rear cooling for network switches, recorders, and servers without adding fan noise or powered ventilation. A solid top with brush cable pass-through manages overhead cable entry while keeping dust intrusion down.

Inside, two pairs of adjustable cage-nut rackrail accept standard 19-inch equipment, and Middle Atlantic includes 100 6mm cage nuts and rack screws in the box. The enclosure is Lever Lock compatible, accepting all 21-inch vertical Lever Lock accessories for tool-free mounting of small devices such as encoders, power supplies, and access control system components — a meaningful labor saver during security system integration. A pair of split, flush-mount locking side panels restricts physical access to the equipment, which matters for surveillance and access control installations.

The enclosure is UL/ETL listed and seismic certified, supporting specification in government and institutional projects with code requirements. Four leveling feet and four casters are included, so the rack can be loaded, rolled into position, and leveled in place. For matching racks, power distribution, and accessories, browse the Middle Atlantic collection at Creation Networks.

Key Features

• 42U x 27"W x 42"D Capacity — Extra width and depth handle deep servers, network gear, and high-density cabling in one enclosure.
• Passive Front-to-Rear Cooling — 70% open area front door and 70% open split rear door move air through equipment without powered fans.
• Lever Lock Compatible — Accepts all 21-inch vertical Lever Lock accessories for tool-free mounting of encoders, power supplies, and access control devices.
• Locking Side Panels — A pair of split, flush-mount locking side panels secures equipment for security and surveillance applications.
• Pre-Installed Rackrail with Hardware — Two pairs of adjustable cage-nut rackrail plus 100 6mm cage nuts and rack screws are included.
• Solid Top with Brush Pass-Through — Manages overhead cable entry while limiting dust into the enclosure.
• UL/ETL Listed and Seismic Certified — Supports specification in government, institutional, and code-driven installations.
• Casters and Leveling Feet Included — Four casters and four leveling feet make positioning and final installation straightforward.

Typical Applications

• Government space
• Commercial meeting space (network and security head-end)
• Broadcast studio
• House of worship
• Auditorium

Technical Specifications

Frequently Asked Questions

What systems is the SNE27D-4242-P1 designed for?
The SNE Series Digital configuration is built for digital, IP-based security systems — network video recorders, switches, servers, and high-density structured cabling — as well as general network equipment rooms.

Does it accept standard 19-inch rack equipment?
Yes. The two pairs of adjustable cage-nut rackrail accept standard EIA 19-inch rack-mount equipment, and 100 6mm cage nuts and rack screws are included.

How does the enclosure handle cooling?
It uses passive front-to-rear airflow through a 70% open area vented front door and a 70% open area split rear door, so equipment can breathe without powered fans.

What is Lever Lock compatibility?
Lever Lock is Middle Atlantic's tool-free mounting system. This enclosure accepts all 21-inch vertical Lever Lock accessories for mounting small devices such as encoders, power supplies, and access control components without drilling or hardware.

Is it suitable for code-driven or government projects?
Yes. The enclosure is UL/ETL listed and seismic certified, which supports specification in government, institutional, and other compliance-sensitive installations.

How is it installed?
The enclosure ships fully configured with four casters for positioning and four leveling feet for final placement. Integrators can roll it into the equipment room, level it, and begin racking gear immediately.

What warranty and support apply?
Middle Atlantic enclosures carry the manufacturer's warranty through Legrand AV. Creation Networks can confirm current warranty terms and help with configuration or volume quotes before you order.
