Middle Atlantic SNE24H-4536-A2 – 24" 45U Hybrid Network Enclosure

Product Overview

The Middle Atlantic SNE24H-4536-A2 is a 24-inch wide, 45-rack-unit, 36-inch deep Slim Network Enclosure pre-configured for hybrid AV/IT deployments that mix analog and digital equipment. With a shallower 36-inch depth compared to the 42-inch variant, this model is optimized for installations where rack depth is limited but high equipment capacity is still required. It is an ideal commercial AV rack solution for technology closets, smaller equipment rooms, and hybrid analog/digital system builds where floor footprint is a constraint.

Product Description

The SNE24H-4536-A2 ships pre-configured with active rear ventilation, dual rackrail types, and a complete accessory package, reducing integration time on commercial AV projects. The 36-inch depth accommodates the majority of rack-mount AV and IT equipment while fitting in shallower alcoves, wall niches, and equipment rooms where a 42-inch deep rack would not clear pathways or doorways.

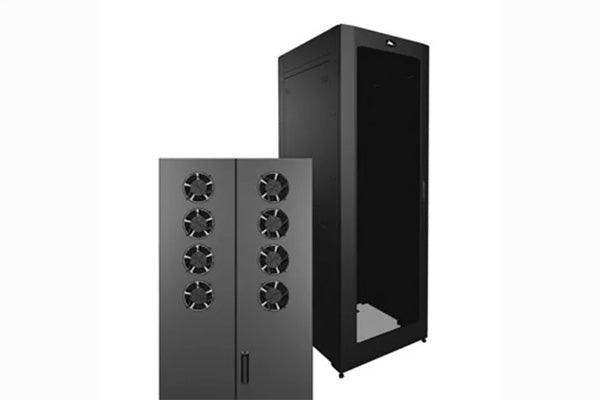

The hybrid rackrail configuration pairs two sets of adjustable 10-32 tapped rackrail with a four-space cagenut adaptor, supporting professional AV processors, amplifiers, media players, and IT network gear in a single enclosure without field hardware modifications. The split fan rear door delivers 1,760 CFM of active cooling through eight 6-inch fans, keeping heat-producing equipment within safe operating temperature ranges. A 70% open front door supports front-to-rear airflow. Lever Lock accessory mounting plates, flush-mount locking side panels, vertical wire management, leveling feet, and casters are included as standard. The enclosure is UL listed and seismic certified, qualifying it for use in facilities with strict safety and compliance requirements.

Key Features

• 24" Wide, 45RU, 36" Deep — Shallower depth variant for space-constrained installations requiring high rack unit capacity without a deep footprint.
• Hybrid Rackrail Configuration — Two pairs of adjustable 10-32 tapped rackrail plus a four-space cagenut adaptor pair accommodate both AV and IT equipment.
• 1,760 CFM Split Fan Rear Door — Eight 6-inch fans provide active rear ventilation; expandable for higher thermal loads.
• Lever Lock Compatible — Includes two vertical 10-inch Lever Lock accessory mounting plates for integrated cable and accessory management.
• UL Listed & Seismic Certified — Meets safety and seismic compliance standards for commercial AV installations.
• Complete Out-of-Box Package — 70% open front door, solid top, side panels, wire management lace, leveling feet, and casters all included.
• Space-Efficient Footprint — 36" depth fits in shallower equipment rooms and alcoves without sacrificing 45RU capacity.

Typical Applications

• Technology closets and shallow equipment rooms
• Enterprise AV racks with depth restrictions
• Conference room and boardroom AV infrastructure
• Higher education AV distribution racks
• Hybrid analog/digital broadcast and production installations
• Government and institutional AV system builds

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the SNE24H-4536-A2 and the SNE24H-4542-A2?

A: The primary difference is depth. The SNE24H-4536-A2 is 36 inches deep; the SNE24H-4542-A2 is 42 inches deep. Both are 24 inches wide, 45RU tall, with the same A2 hybrid rackrail configuration. Choose the 36-inch model when installation depth is restricted.

Q: Will standard rack-mount equipment fit in both front and rear rail positions?

A: Yes. The adjustable 10-32 tapped rackrail allows the front rail position to be set to match equipment mounting requirements. Most standard 1U to 4U rack-mount equipment mounts to the front rails only.

Q: Is the fan rear door thermostatic on the A2 configuration?

A: The A2 configuration includes a split fan rear door for active ventilation. Thermostatic proportional control is a feature of A1 configuration models. Refer to Middle Atlantic documentation for fan speed control details on A2 variants.
