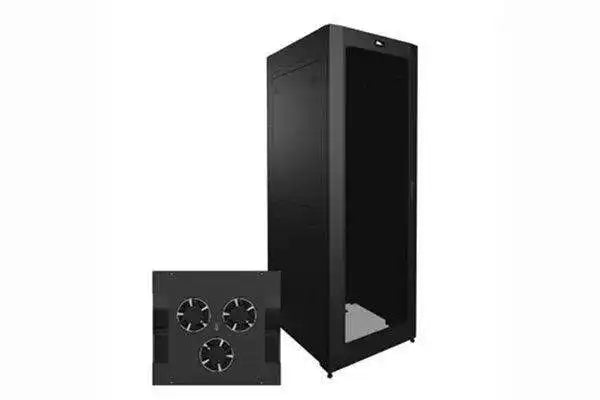

Middle Atlantic SNE24H-4236-A1 – 42U Hybrid Security Network Enclosure

Product Overview

The Middle Atlantic SNE24H-4236-A1 is a 42U security network enclosure built for commercial installations that combine analog and digital equipment in a single rack. As part of the SNE Series of hybrid pre-configured enclosures, it pairs 10-32 tapped adjustable rackrail with a four-space cage-nut adaptor, so integrators can mount traditional AV gear and network hardware side by side. At 24 inches wide and 36 inches deep, it provides the footprint and active thermal management needed for dense head-end and equipment room deployments.

Product Description

The SNE24H-4236-A1 addresses a common challenge in commercial AV and security integration: housing a mix of analog and digital components in one enclosure without compromising mounting flexibility or cooling. It ships with two pairs of adjustable 10-32 tapped rackrail for standard rack-mount equipment, plus a unique 4RU cage-nut adaptor pair for hardware that requires cage-nut mounting, such as network switches and servers. The enclosure is Lever Lock compatible and includes two vertical 10-inch wide Lever Lock accessory mounting plates, giving installers Zero-U space for power supplies, encoders, and other small devices that would otherwise consume rack spaces.

Thermal management is handled actively. The enclosure is configured for top active ventilation and includes a 660 CFM fan top with a proportional thermostatic controller that scales airflow to the heat load, paired with a 70 percent open front door, solid top, and flush-mount split locking side panels that maintain a controlled airflow path. Cable management is supported by an included 6-inch wide vertical wire grid lace. The unit is UL listed and seismic certified, making it suitable for government and institutional projects with code-driven requirements. Four casters simplify loading and positioning during installation, and four leveling feet secure the enclosure in its final location. For integrators standardizing on Middle Atlantic infrastructure, this 42-space enclosure slots directly into existing rack elevation standards and accessory ecosystems.

Key Features

• Hybrid Mounting System — Two pairs of adjustable 10-32 tapped rackrail plus a 4RU cage-nut adaptor pair support both analog AV gear and cage-nut IT equipment in one enclosure.
• 42U Capacity in a 24" x 36" Footprint — Forty-two rack spaces with 36-inch depth accommodate full equipment stacks, deep amplifiers, and network hardware.
• Active Thermal Management — The included 660 CFM fan top with proportional thermostatic controller adjusts cooling output to the actual heat load, reducing noise and energy use.
• Lever Lock Compatibility — Two vertical 10-inch Lever Lock accessory mounting plates provide tool-free Zero-U mounting for power supplies, encoders, and control modules.
• UL Listed and Seismic Certified — Certification supports specification in government, education, and other code-sensitive commercial deployments.
• Controlled Airflow Design — A 70 percent open front door, solid top, and flush-mount split locking side panels establish a defined front-to-top ventilation path.
• Integrated Cable Management — An included 6-inch wide vertical wire grid lace keeps signal and power cabling organized for cleaner service access.
• Casters and Leveling Feet Included — Four casters allow the loaded rack to be rolled into position; four leveling feet stabilize it for final installation.

Typical Applications

• Government spaces requiring seismic-certified equipment enclosures
• Broadcast studios housing mixed analog and digital signal chains
• Auditoriums and houses of worship with centralized AV head-end racks
• Commercial meeting spaces served by a central equipment room
• Training rooms with combined AV, network, and security infrastructure

Technical Specifications

Frequently Asked Questions

Can the SNE24H-4236-A1 hold both standard rack gear and cage-nut equipment?
Yes. It includes two pairs of 10-32 tapped adjustable rackrail for traditional AV equipment and a 4RU cage-nut adaptor pair for switches, servers, and other hardware that requires cage-nut mounting.

How is the enclosure cooled?
It is configured for top active ventilation and ships with a 660 CFM fan top controlled by a proportional thermostatic controller, drawing air through the 70 percent open front door and exhausting through the top.

Is this enclosure suitable for seismic-rated installations?
Yes. The SNE24H-4236-A1 is UL listed and seismic certified, which supports specification in government and institutional projects with seismic anchoring requirements.

What is Lever Lock mounting and what is included?
Lever Lock is Middle Atlantic's tool-free Zero-U mounting system for small devices such as power supplies and encoders. This enclosure includes two vertical 10-inch wide Lever Lock accessory mounting plates.

Can the rack be moved after it is loaded?
Yes. Four casters are included for rolling the enclosure into position, and four leveling feet are included to stabilize it at its final location.

What warranty applies to this product?
The SNE24H-4236-A1 is covered by Middle Atlantic's manufacturer warranty. Contact Creation Networks for current warranty terms and registration details.

Can Creation Networks help with rack configuration for a larger project?
Yes. Our team supports integrators and facilities staff with rack elevations, accessory selection, and volume pricing. Browse the full lineup at our Middle Atlantic collection or contact us for project assistance.
