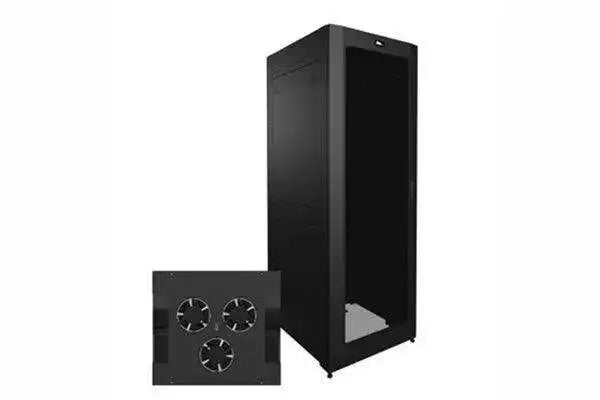

Middle Atlantic SNE24H-2442-A1 – 24U Hybrid Security Network Enclosure

Product Overview

The Middle Atlantic SNE24H-2442-A1 is a pre-configured 24U hybrid security network enclosure built for commercial AV installations that combine analog and digital equipment in a single rack. At 24 inches wide and 42 inches deep, it provides the mounting depth integrators need for DSPs, amplifiers, network switches, and recording hardware. Factory-configured thermal management, security side panels, and cable management ship in the box, reducing on-site assembly time. It is UL listed and seismic certified for code-driven commercial deployment.

Product Description

The SNE Series Hybrid enclosure addresses a common challenge in AV integration: racking a mixed load of analog and digital equipment without compromising on mounting hardware. The SNE24H-2442-A1 includes two pairs of adjustable 10-32 tapped rackrail for traditional rack-screw equipment, plus a unique four-space cage-nut adaptor pair for IT and network gear that requires cage nuts. This hybrid rail configuration lets a single enclosure serve both the AV signal chain and the network stack.

Active thermal management is built in. The enclosure is configured for top active ventilation and ships with a 660 CFM fan top driven by a proportional thermostatic controller, so fan speed tracks the actual heat load rather than running at a constant level. A 70 percent open front door supports intake airflow, while the solid top and split flush-mount locking side panels keep the airflow path controlled and the equipment secured.

Cable and accessory management is handled through Lever Lock compatibility. Two vertical 10-inch-wide Lever Lock accessory mounting plates are included for tool-free mounting of power and accessory components, and a 6-inch-wide vertical wire grid lace strip organizes vertical cable runs. Four leveling feet and four casters are included, so the rack can be loaded and rolled into position, then leveled for permanent installation. For rack accessories and complementary hardware, see the Middle Atlantic collection at Creation Networks.

Key Features

• Hybrid Rail Configuration — Two pairs of adjustable 10-32 tapped rackrail plus a four-space cage-nut adaptor pair support both AV and IT equipment in one enclosure.
• 660 CFM Fan Top Included — Proportional thermostatic controller scales fan speed to heat load for quieter operation and consistent equipment cooling.
• Top Active Ventilation Design — Pre-configured airflow path with 70 percent open front door and solid top moves heat up and out of the enclosure.
• Lever Lock Compatible — Includes two vertical 10-inch Lever Lock accessory mounting plates for tool-free installation of power and accessory modules.
• Security Side Panels — Split flush-mount locking side panels restrict physical access to installed equipment.
• UL Listed and Seismic Certified — Meets safety and seismic requirements for commercial and government installation environments.
• Integrated Cable Management — Includes a 6-inch-wide vertical wire grid lace strip for organized vertical cable runs.
• Casters and Leveling Feet Included — Roll the loaded rack into place, then level it for final installation.

Typical Applications

• Boardroom and conference room AV equipment racks
• Government space installations requiring seismic certification
• House of worship audio and video system head ends
• Training room and multi-purpose room AV closets
• Broadcast studio and auditorium equipment rooms

Technical Specifications

Frequently Asked Questions

What types of equipment is the SNE24H-2442-A1 designed for?
It is a hybrid enclosure for systems that mix analog AV equipment and digital or IP-based gear. The 10-32 tapped rails handle conventional rack equipment, while the included cage-nut adaptor supports network switches and servers that require cage-nut mounting.

Does this rack require assembly before installation?
It ships pre-configured with the fan top, front door, side panels, rackrail, and cable management already specified for the enclosure, which significantly reduces on-site build time compared with configuring a frame and accessories separately.

How does the thermal management work?
The included 660 CFM fan top uses a proportional thermostatic controller that adjusts fan speed based on internal temperature. Cool air enters through the 70 percent open front door and exhausts through the top.

Is this enclosure suitable for seismic-rated projects?
Yes. The SNE24H-2442-A1 is seismic certified and UL listed, making it appropriate for government, education, and healthcare projects where these certifications are specified.

Can I mount power distribution and accessories without tools?
Yes. The enclosure is Lever Lock compatible and includes two vertical 10-inch Lever Lock accessory mounting plates for tool-free mounting of compatible power and accessory components.

Can the rack be moved after it is loaded?
Yes. Four casters are included for repositioning, and four leveling feet are included for stabilizing the rack in its final installed location.

What warranty and support are available?
Middle Atlantic racks and enclosures are covered by the manufacturer's warranty. Creation Networks can assist with product selection, rack accessories, and pre-sale configuration questions for your commercial deployment.
