Middle Atlantic SNE24H-2436-A2 – 24U Hybrid Security Network Enclosure

Product Overview

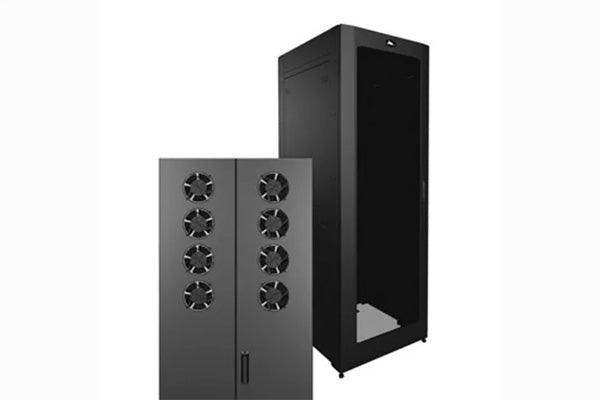

The Middle Atlantic SNE24H-2436-A2 is a 24U hybrid security network enclosure designed for commercial systems that mix analog and digital equipment in a single rack. Its 24-inch width and 36-inch depth suit compact equipment rooms, while two pairs of 10-32 tapped adjustable rackrail and a 4RU cage-nut adaptor let integrators mount AV gear and network hardware together. The A2 configuration delivers high-output rear active ventilation through a 1,760 CFM split fan rear door for heat-dense equipment loads.

Product Description

The SNE24H-2436-A2 belongs to Middle Atlantic's SNE Series of hybrid pre-configured enclosures, built for installations transitioning between analog and IP-based systems or running both permanently. The dual mounting approach is the core of the design: two pairs of adjustable 10-32 tapped rackrail handle traditional AV and security components, while the included four-space cage-nut adaptor pair accepts network switches, servers, and other equipment that requires cage-nut mounting. This removes the need to choose between rail types when planning a mixed equipment stack.

Thermal management is active and rear-focused. The enclosure is configured for rear active ventilation and includes a 1,760 CFM split fan rear door with eight 6-inch fans, expandable for higher heat loads. Intake air enters through the 70 percent open front door, passes across the equipment, and is exhausted by the fan door, with a solid top and flush-mount split locking side panels maintaining the airflow path. The enclosure is Lever Lock compatible and ships with two vertical 10-inch wide Lever Lock accessory mounting plates, providing tool-free Zero-U mounting for power supplies, encoders, and access control modules outside the rackspaces. UL listing and seismic certification support government and institutional specifications. An included 6-inch wide vertical wire grid lace organizes cabling, four casters ease positioning during installation, and four leveling feet secure the enclosure in place. For integrators standardizing on Middle Atlantic racks across commercial deployments, the 24U format works well where ceiling height or room footprint rules out taller enclosures.

Key Features

• Hybrid Mounting System — Two pairs of adjustable 10-32 tapped rackrail plus a 4RU cage-nut adaptor pair mount analog AV components and cage-nut IT hardware in the same enclosure.
• High-Output Rear Active Ventilation — The included 1,760 CFM split fan rear door uses eight 6-inch fans and is expandable to match growing heat loads.
• Compact 24U Format — A 24-inch wide, 36-inch deep, 24-space footprint fits equipment closets and rooms where full-height racks are impractical.
• Lever Lock Compatibility — Two vertical 10-inch Lever Lock accessory mounting plates enable tool-free Zero-U mounting of power supplies, encoders, and control devices.
• UL Listed and Seismic Certified — Certifications support specification in government and other code-sensitive commercial installations.
• Defined Airflow Path — A 70 percent open front door, solid top, and flush-mount split locking side panels channel intake air to the rear fan door.
• Included Cable Management — A 6-inch wide vertical wire grid lace keeps power and signal cabling organized for cleaner installations and faster service.
• Casters and Leveling Feet Included — Four casters allow the loaded enclosure to be rolled into place; four leveling feet stabilize the final installation.

Typical Applications

• Conference rooms and boardrooms with in-room or adjacent equipment racks
• Government spaces requiring seismic-certified enclosures
• Houses of worship with mixed analog and digital AV systems
• Training rooms and multi-purpose rooms with compact equipment closets
• Commercial meeting spaces consolidating AV, network, and security gear

Technical Specifications

Frequently Asked Questions

What equipment types does the SNE24H-2436-A2 support?
It is a hybrid enclosure: 10-32 tapped rackrail mounts traditional analog AV and security gear, while the included 4RU cage-nut adaptor pair accepts network switches, servers, and other cage-nut equipment.

How much cooling does the fan rear door provide?
The included split fan rear door moves 1,760 CFM using eight 6-inch fans and is expandable, supporting heat-dense equipment stacks in the 24U format.

Is this enclosure certified for seismic installations?
Yes. The SNE24H-2436-A2 is UL listed and seismic certified, supporting government and institutional projects with seismic anchoring requirements.

What is included for Zero-U accessory mounting?
The enclosure is Lever Lock compatible and includes two vertical 10-inch wide Lever Lock accessory mounting plates for tool-free mounting of power supplies, encoders, and access control components.

How do I position and secure the rack during installation?
Four included casters let installers roll the loaded enclosure into place, and four leveling feet stabilize and level it at its final position.

Does it include cable management?
Yes. One 6-inch wide vertical wire grid lace is included for organizing vertical cable runs inside the enclosure.

What warranty and project support are available?
The enclosure is covered by Middle Atlantic's manufacturer warranty. For warranty details, rack elevations, or volume quotes, contact Creation Networks or browse our Middle Atlantic collection.
