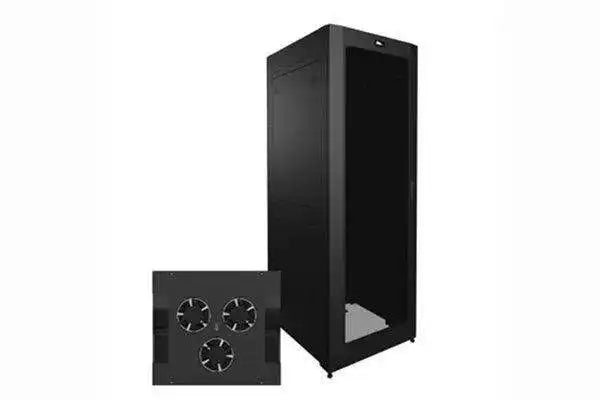

Middle Atlantic SNE24H-2436-A1 – 24U 36"D Hybrid AV Enclosure

Product Overview

The Middle Atlantic SNE24H-2436-A1 is a 24-inch wide, 24-space, 36-inch deep hybrid pre-configured enclosure built for AV systems that combine analog and digital equipment in a single rack. The hybrid configuration pairs 10-32 tapped rackrail with a 4RU cage nut adaptor, so traditional AV gear and cage-nut-mounted network hardware install side by side. Active thermal management is built in, with a 660 CFM fan top, proportional thermostatic controller, and flush-mount side panels managing heat from mixed equipment loads. It is a ready-to-deploy choice for integrators outfitting conference rooms, training facilities, and institutional equipment closets.

Product Description

The SNE Series Hybrid Pre-Configured enclosure removes the guesswork from racking mixed analog and digital systems. Two pairs of adjustable 10-32 tapped rackrail handle conventional rackmount AV equipment, while the included four-space cage nut adaptor pair accommodates servers, switches, and other hardware that requires cage nut mounting. Thermal management is configured for top active ventilation: the included 660 CFM fan top with proportional thermostatic controller ramps airflow to match the heat load, drawing air through the 70 percent open front door and exhausting it through the top of the enclosure. The pair of split flush-mount locking side panels secures side access while preserving the airflow path. Installers gain additional mounting real estate through Lever Lock compatibility, with two vertical 10-inch wide Lever Lock accessory mounting plates included for tool-free side mounting of power and signal accessories. A 6-inch wide vertical wire grid lace strip organizes cable bundles inside the enclosure, and both leveling feet and casters are included, so the rack can be loaded at the bench, rolled into position, and leveled in place. UL listing and seismic certification support specification in government and institutional AV integration projects. Explore companion enclosures and accessories in our Middle Atlantic collection.

Key Features

• Hybrid Mounting System — Two pairs of 10-32 tapped adjustable rackrail plus a unique 4RU cage nut adaptor pair let analog AV gear and cage-nut network equipment share one enclosure.
• Active Thermal Management — The included 660 CFM fan top with proportional thermostatic controller scales cooling to the actual heat load of the installed system.
• Configured Airflow Path — A 70 percent open front door and top active ventilation configuration move air front-to-top through the equipment stack.
• Lever Lock Side Mounting — Lever Lock compatibility with two included vertical 10-inch accessory mounting plates adds tool-free mounting space for small devices without consuming rackspaces.
• UL Listed and Seismic Certified — Certifications support code-driven specifications in government, education, and enterprise projects.
• Secure Side Access — Split flush-mount locking side panels protect equipment while allowing service access in sections.
• Integrated Cable Management — A 6-inch wide vertical wire grid lace strip keeps internal cable bundles dressed and serviceable.
• Bench-Build Friendly — Included casters and four leveling feet allow the rack to be loaded offsite, rolled into the room, and leveled at final position.

Typical Applications

• Boardroom and conference room equipment closets
• Training room AV head-ends
• House of worship audio and video racks
• Government space AV and network enclosures
• Multi-purpose room and commercial meeting space systems

Technical Specifications

Frequently Asked Questions

What makes this a hybrid enclosure?
The H designation means the enclosure is pre-configured for mixed analog and digital systems, combining 10-32 tapped rackrail for traditional AV equipment with a 4RU cage nut adaptor for hardware that requires cage nut mounting.

How does the thermal management work?
The included 660 CFM fan top uses a proportional thermostatic controller to adjust fan speed to the heat load, pulling air through the 70 percent open front door and exhausting through the top.

Can I mount accessories without using rackspaces?
Yes. The enclosure is Lever Lock compatible and includes two vertical 10-inch wide Lever Lock accessory mounting plates for tool-free side mounting of power supplies and small devices.

Can the rack be pre-built and rolled into place?
Yes. Four casters are included for moving the loaded enclosure, and four leveling feet secure and level it at the final installation point.

Is it certified for regulated projects?
The enclosure is UL listed and seismic certified, which supports specification in government and institutional AV installations with compliance requirements.

What cable management is included?
One 6-inch wide vertical wire grid lace strip is included for dressing and supporting cable bundles inside the enclosure.

What warranty and support apply?
Middle Atlantic products purchased through Creation Networks, an authorized reseller, carry the manufacturer warranty. Our team can assist with configuration questions, accessory selection, and project quotes.
