Middle Atlantic SNE24F-CN-4242 SNE24W FR,CN RAIL 42UX42D
Product Overview

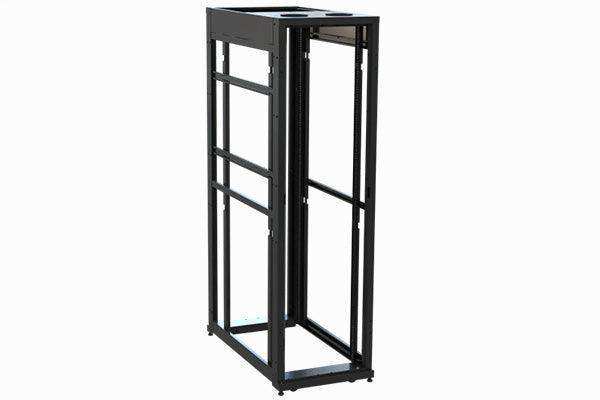

The Middle Atlantic SNE24F-CN-4242 is a 24-inch wide, open-frame rack providing 42U of rack space and 42 inches of usable depth. Cage-nut rails on all four posts enable universal equipment mounting, making it suitable for IT and AV installations that require flexibility across hardware from multiple manufacturers.
Product Description
The SNE24F-CN-4242 sits at the intersection of mid-depth capacity and universal mounting hardware. The 42U height provides substantial installation space, and the 42-inch depth accommodates full-depth enterprise servers, large network appliances, and AV processing equipment simultaneously. Cage-nut rails on all four posts accept standard 10-32 and 12-24 hardware, giving integrators the flexibility to mount any standard rack equipment without rail changes. The SNE24 welded steel frame ensures long-term stability under fully populated load conditions.
Key Features
- 42U rack space with 42-inch usable depth
- Cage-nut rails on all four posts for universal compatibility
- 24-inch wide open-frame design for airflow management
- Accommodates full-depth enterprise servers and large network appliances
- Supports standard 10-32 and 12-24 cage nut hardware
- Welded steel construction for long-term structural stability
Typical Applications
- IT server rooms with mixed hardware from multiple manufacturers
- AV/IT hybrid infrastructure requiring cage-nut flexibility
- Enterprise network rooms with full-depth servers and network appliances
- Broadcast facilities with diverse equipment mounting requirements
- Government and education technology infrastructure projects
Technical Specifications
| Specification | Value |
|---|---|
| Model | SNE24F-CN-4242 |
| Frame Series | SNE24 |
| Rail Type | Cage-Nut |
| Rack Units | 42U |
| Usable Depth | 42 inches |
| Frame Width | 24 inches |
| Construction | Welded steel |
| Price | $2,192 |
FAQ
- How does the SNE24F-CN-4242 compare to the SNE24F-4242?
- The SNE24F-CN-4242 uses cage-nut rails for universal hardware compatibility, while the SNE24F-4242 uses 10-32 tapped rails. Choose cage-nut when mixing equipment from different manufacturers.
- Does this frame accommodate standard 1U and 2U servers?
- Yes. The 42-inch depth fits most enterprise servers with depths up to 36 inches, with rear cable clearance remaining.
- What cage nut hardware fits these rails?
- Both 10-32 and 12-24 cage nuts are compatible with the cage-nut rails on the SNE24F-CN-4242.
- Where can I purchase the SNE24F-CN-4242?
- Available at creationnetworks.net.
