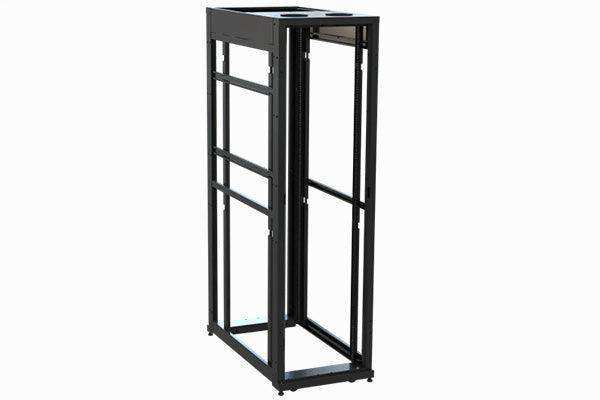

Middle Atlantic SNE24F-4542 SNE24W FR,10/32,45UX42D

Product Overview

The Middle Atlantic SNE24F-4542 is a 24-inch wide, 45U open rack frame with 10-32 tapped rails and a 42-inch usable depth, representing the standard configuration in the SNE24F series for professional AV integration environments. It provides full-height rack density, the industry-standard 10-32 AV rail system, and ample depth for the majority of AV and networking equipment deployed in corporate, education, entertainment, and house of worship installations. The open-frame design ensures thermal performance and unrestricted access for installation and ongoing maintenance.

Product Description

The SNE24F-4542 is the baseline high-density configuration of the SNE24F open-frame series, pairing a 45U height with a 42-inch depth that accommodates virtually all standard AV and networking equipment without excess overhead. The 24-inch interior width provides standard EIA 19-inch equipment compatibility with moderate side clearance for cabling and airflow. This configuration is widely specified in AV system integration projects for corporate boardrooms, higher education facilities, broadcast environments, and hospitality venues where a high equipment count must be organized within a single, accessible enclosure. The 10-32 tapped rail system requires no cage nuts, enabling faster equipment installation and a cleaner rack assembly — a practical advantage during commissioning and on-site system builds. The 42-inch depth handles deep AV receivers, patch panels with rear-loaded connectors, power conditioners, and short-to-medium-depth servers without requiring extension brackets. The SNE24F-4542 ships fully assembled from Middle Atlantic with leveling feet installed. Open-frame architecture permits airflow from all four sides, supporting passive cooling strategies in moderate-density deployments. The frame integrates with Middle Atlantic's full accessory portfolio — horizontal cable managers, lacing bars, rack-mount PDU brackets, and vented blanks — providing a complete infrastructure platform. Available through authorized resellers including Creation Networks.

Key Features

• 24-inch interior width — Standard EIA 19-inch compatible with moderate side clearance.
• 45U height — Full-height rack capacity for high-density AV and IT systems.
• 42-inch usable depth — Accommodates the majority of AV and networking equipment.
• 10-32 tapped rails — Professional AV standard; no cage nuts required for mounting.
• Open-frame design — Unrestricted four-sided airflow for passive thermal management.
• Welded steel construction — Structural rigidity for heavy equipment loads.
• Leveling feet included — Stable installation on concrete or raised-floor surfaces.
• Middle Atlantic accessory compatible — Supports cable managers, PDU brackets, and lacing bars.

Typical Applications

• Corporate AV system head-end closets and equipment rooms
• Broadcast and production facility rack systems
• Higher education technology infrastructure rooms
• House of worship media, lighting, and audio control racks
• Hospitality AV back-of-house equipment installations
• Government and municipal AV and network infrastructure rooms

Technical Specifications

Frequently Asked Questions

How does the SNE24F-4542 differ from the SNE27F-4542?

The SNE24F-4542 has a 24-inch interior width; the SNE27F-4542 provides a wider 27-inch interior. Both share the same 45U height and 42-inch depth. The SNE27F is better suited to installations with wide AV chassis or extensive side-mount cable management needs.

Is 42 inches of depth sufficient for modern server equipment?

Most 1U and 2U rack servers fit within 30 to 34 inches of depth, making 42 inches more than adequate for standard server hardware. For high-density blade server enclosures or large UPS systems exceeding 40 inches, consider the SNE24F-4548.

Does the open-frame design create a security concern?

Open-frame racks do not provide physical access security. For installations requiring locked enclosures, consider Middle Atlantic's enclosed cabinet product lines. The SNE Series is intended for secured equipment rooms where physical access is already controlled.

Where can I purchase the SNE24F-4542?

The SNE24F-4542 is available through Creation Networks, an authorized Middle Atlantic reseller.
