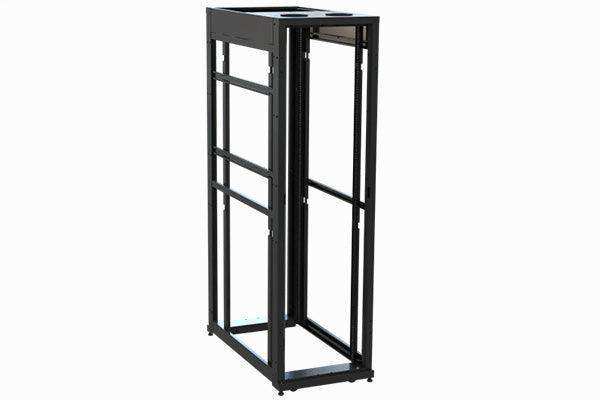

Middle Atlantic SNE24F-4248 SNE24W FR,10/32,42UX48D

Product Overview

The Middle Atlantic SNE24F-4248 is a 24-inch wide, 42U open rack frame with 10-32 tapped rails and a 48-inch usable depth, designed for AV integrators and IT managers who need the extra depth margin of a 48-inch rack without the added height of a full 45U enclosure. This configuration handles deep servers, large-format UPS systems, and oversized AV chassis while keeping the frame height to 42U — a practical choice for rooms with overhead clearance constraints or projects where a slightly smaller frame footprint matters.

Product Description

The SNE24F-4248 provides the depth advantage of the SNE24F-4548 in a 42U height profile, creating a rack frame optimized for deployments where equipment depth is the primary engineering challenge rather than vertical density. The 24-inch interior width is compatible with the EIA 19-inch equipment standard and provides moderate side clearance for cable routing and airflow management. The 48-inch usable depth accommodates equipment chassis that exceed the capacity of standard 36- or 42-inch racks — including high-density 2U servers, large-format AV matrix switchers, extended-depth patch panels, and enterprise UPS systems. At 42U, the frame delivers high rack density while remaining below the full 45U height, which can simplify ceiling clearance compliance in some facilities. The 10-32 tapped rail system is the standard for professional AV equipment and eliminates the cage-nut installation step during rack build, reducing commissioning time on complex system integrations. The SNE24F-4248 ships fully assembled with leveling feet and is ready for immediate rack population. The open-frame design provides unrestricted airflow on all four sides, supporting passive cooling in moderate heat density environments. Compatibility with the full Middle Atlantic accessory line ensures the frame supports complete system builds with cable managers, PDU brackets, and lacing bars. Available through authorized resellers including Creation Networks.

Key Features

• 24-inch interior width — EIA 19-inch compatible with moderate side clearance for cabling.
• 42U height — High-density rack space with reduced height over full 45U frames.
• 48-inch usable depth — Accommodates extra-deep servers, UPS units, and large AV switchers.
• 10-32 tapped rails — AV industry standard; direct screw-in mounting without cage nuts.
• Open-frame design — Unrestricted four-sided airflow for passive thermal management.
• Welded steel construction — Structural rigidity for heavy equipment loads.
• Leveling feet included — Stable installation on concrete or raised-floor surfaces.
• Middle Atlantic accessory compatible — Supports cable managers, PDU brackets, and lacing bars.

Typical Applications

• Corporate AV head-end rooms with deep server and AV processing infrastructure
• Broadcast facility equipment rooms requiring deep chassis support
• Network operations center racks with full-depth switching and routing gear
• Higher education technology infrastructure rooms with ceiling height constraints
• Hospitality AV back-of-house equipment installations
• Data center colocation bays with mixed AV and IT equipment

Technical Specifications

Frequently Asked Questions

When would I choose the SNE24F-4248 over the SNE24F-4548?

Choose the SNE24F-4248 when you need 48-inch depth but your equipment room has an overhead clearance limit that prevents a full 45U frame. The SNE24F-4248 is three rack units shorter, which can make the difference in rooms with dropped ceilings or limited vertical clearance above the rack.

Does the 48-inch depth affect the floor footprint significantly compared to a 42-inch rack?

Yes. You will need an additional six inches of rear clearance and potentially more front clearance for cable management. Confirm that your equipment room layout accommodates the full 48-inch depth plus service clearance before specifying this configuration.

Are all 10-32 tapped holes in the SNE24F-4248 EIA-310 compliant?

Yes. Middle Atlantic SNE Series rails conform to EIA-310 rack unit spacing, ensuring all equipment with standard 10-32 rack mounting hardware installs correctly.

Where can I purchase the SNE24F-4248?

The SNE24F-4248 is available through Creation Networks, an authorized Middle Atlantic reseller.
