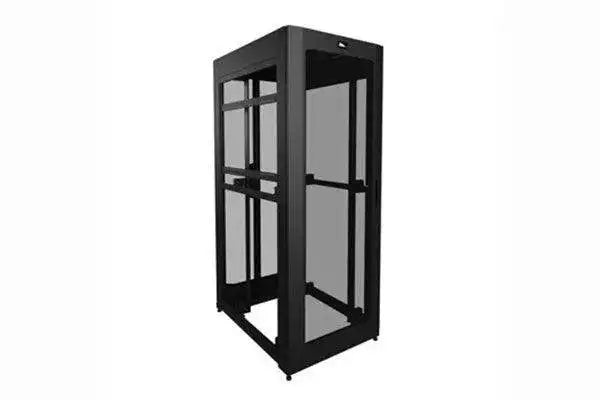

Middle Atlantic SNE24D-4548-P1AB – 24"W 45U 48"D Digital Enclosure Add-a-Bay

Product Overview

The Middle Atlantic SNE24D-4548-P1AB is a 24-inch wide, 45U, 48-inch deep Add-a-Bay digital enclosure built for AV integrators and system designers who need maximum depth expansion capacity within a narrower rack footprint. As an Add-a-Bay unit, it connects directly to a primary SNE24 enclosure to extend rack capacity without requiring a separate standalone cabinet. The 48-inch depth makes this one of the deepest configurations in the SNE24 series, accommodating large AV amplifiers, media servers, video routing equipment, and deep UPS units.

Product Description

The SNE24D-4548-P1AB expands an existing SNE24 primary enclosure by adding 45U of rack space in a 24-inch wide by 48-inch deep Add-a-Bay configuration. The 48-inch depth is the longest available in the SNE24 series and is intended for deployments with deep rackmount equipment that cannot be accommodated by 36- or 42-inch depth models. The D-series digital enclosed design provides solid side panels for a finished, professional appearance in performance venues, enterprise AV rooms, and broadcast facilities. Passive P1 airflow through the open rear supports natural convection cooling for amplifiers, media processing equipment, and other heat-generating gear without powered cooling accessories. Adjustable EIA-310 rails support standard 19-inch equipment across the full 45U height at variable mounting depths. Side panels are removable for gang attachment to the primary SNE24 enclosure and for lateral service access during installation. The SNE24D-4548-P1AB is appropriate for AV integrators managing complex equipment deployments where depth requirements exceed typical rack enclosure specifications.

Key Features

• Add-a-Bay (AB) Configuration — Attaches to an existing SNE24 primary enclosure for integrated rack expansion.
• 45U Capacity — High-density rack space for deep AV and processing equipment in the expansion bay.
• 24"W × 48"D Footprint — Maximum depth in the SNE24 series for the deepest rackmount equipment.
• D-Series Digital Enclosed Design — Enclosed side panels provide a finished look in customer-visible rooms.
• Passive Open-Rear Airflow (P1) — Natural convection cooling without fan accessories or additional power draw.
• Adjustable EIA-310 Rack Rails — Accommodates standard 19-inch equipment at variable depths up to 48 inches.
• Removable Side Panels — Allows seamless attachment to primary SNE enclosure and lateral access.
• Middle Atlantic SNE System Compatibility — Engineered to integrate with SNE24 primary enclosures.

Typical Applications

• Large-venue AV equipment room expansion for deep amplifiers and processors
• Broadcast facility equipment bay additions requiring maximum depth
• Enterprise AV closet expansion with deep video routing gear
• Performance venue audio and video infrastructure buildouts
• Houses of worship AV system equipment room expansion

Technical Specifications

Frequently Asked Questions

Q: What primary enclosure does the SNE24D-4548-P1AB attach to?

A: This Add-a-Bay unit is designed for the Middle Atlantic SNE24 primary enclosure series. It attaches side-by-side using removable side panels.

Q: Why would I choose the 48-inch depth model over 42-inch?

A: The 48-inch depth is appropriate when your equipment complement includes deep rackmount amplifiers, large UPS units, or video processors that exceed the mounting capacity of shallower models. If your equipment fits within 42 inches, the SNE24D-4542-P1AB may be a more appropriate choice.

Q: Does passive airflow work adequately at 45U fill density?

A: Passive P1 airflow is effective for most AV equipment operating within manufacturer thermal ratings. At very high fill densities with heat-intensive equipment, supplemental fan panels can be added within the available rack space.

Q: Can I use this as a standalone enclosure?

A: The Add-a-Bay configuration is designed for attachment to a primary SNE enclosure. Freestanding use is not the intended application and may affect structural performance.

Q: Are the rack rails adjustable for different equipment depths?

A: Yes, EIA-310 adjustable rails are included and can be positioned at various depths within the 48-inch interior to accommodate different equipment mounting requirements.

Q: Where can I order this enclosure?

A: The SNE24D-4548-P1AB is available at creationnetworks.net.
