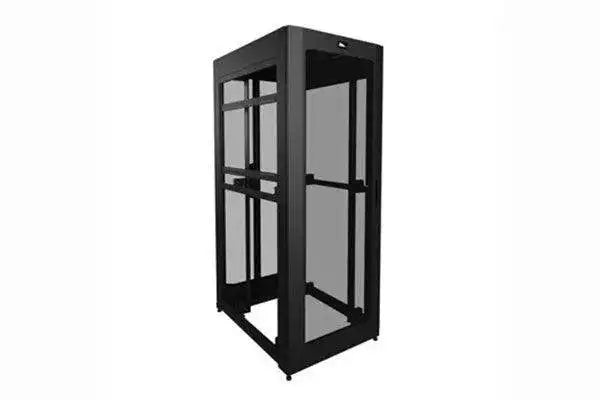

Middle Atlantic SNE24D-4542-P1AB – 24"W 45U 42"D Digital Enclosure Add-a-Bay

Product Overview

The Middle Atlantic SNE24D-4542-P1AB is a 24-inch wide, 45U, 42-inch deep Add-a-Bay digital enclosure for AV integrators expanding an existing SNE24 primary rack installation. This unit attaches directly to a primary SNE24 enclosure to add 45U of rack capacity without the cost or footprint of a standalone cabinet. The D-series enclosed design with passive open-rear airflow (P1) is well suited for AV equipment rooms and facilities where a professional enclosed appearance and adequate thermal management are both requirements.

Product Description

The SNE24D-4542-P1AB adds 45U of rack space to an existing SNE24 primary installation in a 24-inch wide by 42-inch deep Add-a-Bay configuration. The 42-inch depth accommodates AV amplifiers, media servers, video processors, and other deep rackmount equipment that exceeds the capacity of 36-inch depth models. The D-series digital enclosed frame provides solid side panels giving a finished, professional appearance appropriate for conference rooms, performance venues, and enterprise AV spaces where aesthetics are a consideration. Passive P1 airflow through the open rear allows heat to dissipate via natural convection, supporting AV amplifiers and media processing equipment operating within standard thermal ratings. Adjustable EIA-310 rails accept standard 19-inch equipment across the full 45U height at variable mounting depths within the 42-inch interior. Side panels are removable for attachment to the adjacent primary SNE24 enclosure and for lateral service access during installation. The SNE24D-4542-P1AB is the direct Add-a-Bay counterpart to the SNE24D-4542-P1 standalone unit, sharing the same depth and enclosure type within the gang-expansion form factor.

Key Features

• Add-a-Bay (AB) Configuration — Attaches to an existing SNE24 primary enclosure for integrated rack expansion.
• 45U Capacity — Full 45U expansion capacity for high-density AV and IT equipment.
• 24"W × 42"D Footprint — Accommodates deep AV gear including amplifiers and video processors in a 24-inch wide frame.
• D-Series Digital Enclosed Design — Solid side panels for a finished appearance in customer-facing rooms.
• Passive Open-Rear Airflow (P1) — Natural convection cooling without fan accessories or additional power.
• Adjustable EIA-310 Rack Rails — Supports standard 19-inch AV and IT equipment at variable depths.
• Removable Side Panels — Enables seamless gang attachment to the primary SNE24 enclosure.
• Middle Atlantic SNE24 Compatibility — Designed for integration with SNE24 primary enclosures.

Typical Applications

• AV equipment room rack expansion in conference and performance venues
• Broadcast facility equipment bay additions
• Enterprise AV closet capacity extensions
• Houses of worship AV system infrastructure expansion
• Education and government facility AV rack additions

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the SNE24D-4542-P1AB and the SNE24D-4542-P1?

A: The SNE24D-4542-P1 is a standalone primary enclosure. The SNE24D-4542-P1AB is the Add-a-Bay version of the same enclosure, designed to attach to a primary SNE24 unit rather than stand independently.

Q: Which primary enclosure does this Add-a-Bay unit attach to?

A: The SNE24D-4542-P1AB is designed for attachment to Middle Atlantic SNE24 primary enclosures. Match the 24-inch width and verify primary enclosure compatibility before ordering.

Q: How does 42-inch depth compare to 48-inch in the SNE24D Add-a-Bay series?

A: The 42-inch depth accommodates most AV amplifiers and processors. The 48-inch model (SNE24D-4548-P1AB) is available for installations with equipment that requires additional depth beyond 42 inches.

Q: Can passive airflow handle a fully loaded 45U AV equipment bay?

A: Passive P1 airflow is adequate for most AV equipment at standard operating conditions. For installations with very high aggregate thermal loads, supplemental fan panels can be added within the available rack space.

Q: Are rack rails included?

A: Yes, adjustable EIA-310 rails are included and are configurable at variable depth positions within the 42-inch interior.

Q: Where can I order this enclosure?

A: The SNE24D-4542-P1AB is available at creationnetworks.net.
