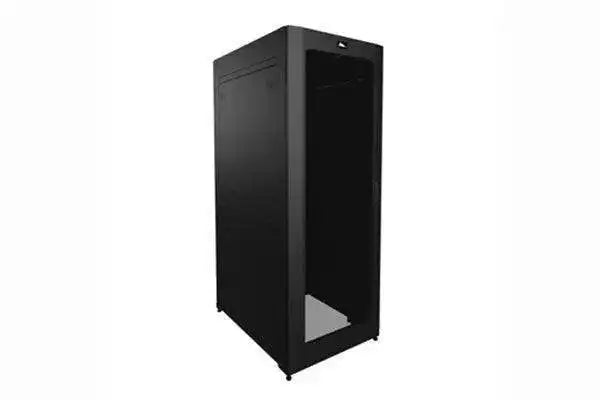

Middle Atlantic SNE24D-4248-P1 – 42U Security Network Enclosure, 48" Deep

Product Overview

The Middle Atlantic SNE24D-4248-P1 is a fully configured 42-rackspace security network enclosure built for digital, IP-based security systems with high-density cabling, network equipment, and servers. At 24 inches wide and 48 inches overall depth, the SNE Series Digital enclosure gives integrators a deep equipment footprint for switches, recorders, and server hardware in security head-end rooms and data centers. Passive front-to-rear cooling, UL/ETL listing, and seismic certification make it specification-ready for commercial deployment and government projects. It arrives as a complete kit, including doors, side panels, rackrail, hardware, leveling feet, and casters.

Product Description

The SNE Series Digital is configured specifically for digital (IP-based) security system installation, where high-density network cabling and heat-producing equipment demand controlled airflow and organized cable management. This P1 configuration provides passive ventilation with a 70 percent open area vented front door and a 70 percent open area split rear door, supporting front-to-rear cooling without powered fans. A solid top with brush cable pass-through keeps overhead cable entry clean while limiting dust intrusion. A pair of split flush-mount locking side panels secures equipment while allowing convenient service access along the 48-inch depth. Two pairs of adjustable cage-nut rackrail are included with 6mm hardware, and 100 6mm cage nuts and rack screws ship in the box so equipment loading can begin immediately. The enclosure is Lever Lock compatible and accepts all Lever Lock vertical 21-inch accessories; the optional tool-free Lever Lock system accommodates small devices such as encoders, power supplies, and access control system components without consuming rackspaces. Four leveling feet and four casters are included for positioning and final installation. UL/ETL listing and seismic certification support code-driven projects. Browse related racks and accessories in the Middle Atlantic collection at Creation Networks.

Key Features

• Configured for IP Security Systems — SNE Series Digital layout supports high-density cabling, network equipment, and servers in one enclosure.
• 42 Rackspaces, 48-Inch Depth — Deep 24-inch wide format fits servers, NVRs, and full-depth network hardware.
• Passive Front-to-Rear Cooling — 70 percent open area vented front door and split rear door move air without powered ventilation.
• UL/ETL Listed and Seismic Certified — Certification coverage simplifies approval on government and code-driven installations.
• Lever Lock Compatible — Accepts all Lever Lock vertical 21-inch accessories for tool-free mounting of encoders, power supplies, and access control devices.
• Locking Split Side Panels — Flush-mount locking side panels protect equipment and provide service access.
• Solid Top with Brush Pass-Through — Clean overhead cable entry for structured cabling and security camera home runs.
• Complete Hardware Kit — Includes 2 pair adjustable cage-nut rackrail, 100 6mm cage nuts and screws, 4 leveling feet, and 4 casters.

Typical Applications

• Government space
• Commercial meeting space
• Broadcast studio
• House of worship

Technical Specifications

Frequently Asked Questions

Q: What systems is the SNE24D-4248-P1 designed for?
A: The SNE Series Digital is configured for digital, IP-based security systems made up of high-density cabling, network equipment, and servers, and it also suits general data center and equipment room use.

Q: How is the enclosure cooled?
A: This P1 configuration uses passive front-to-rear cooling through a 70 percent open area vented front door and a 70 percent open area split rear door — no fans required.

Q: What mounting hardware is included?
A: Two pairs of adjustable cage-nut rackrail with 6mm hardware, plus 100 6mm cage nuts and rack screws, four leveling feet, and four casters ship with the enclosure.

Q: Can I mount small devices like encoders and power supplies without using rackspaces?
A: Yes. The enclosure is Lever Lock compatible and accepts all Lever Lock vertical 21-inch accessories; the optional tool-free Lever Lock system holds encoders, power supplies, and access control components on the vertical interior.

Q: Is this enclosure suitable for code-driven or government installations?
A: Yes. It is UL/ETL listed and seismic certified. Verify documentation requirements with your AHJ during the submittal process.

Q: Does the enclosure lock?
A: It includes a pair of split flush-mount locking side panels for physical security; doors and accessories from the SNE platform extend access control options.

Q: Where can I get help selecting accessories or volume pricing?
A: Creation Networks supports security and AV integrators with configuration assistance, accessory compatibility checks, and project quotes. Middle Atlantic manufacturer warranty applies.
