Middle Atlantic SANGLE27-3-48 - 3-Bay SNE Floor Angles 27D 48H

Product Overview

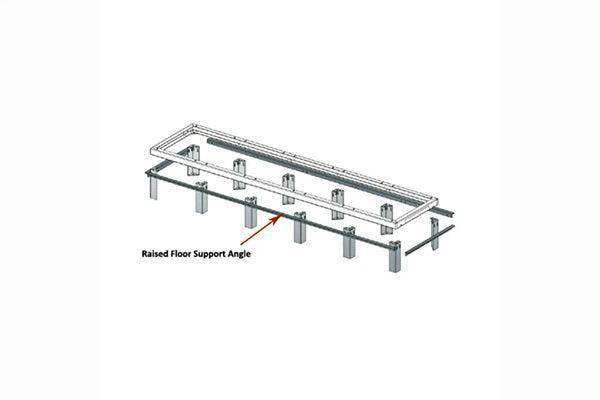

The Middle Atlantic SANGLE27-3-48 provides the floor angle base structure for 3-bay SNE rack systems at 27-inch depth and 48-inch height. These precision-fabricated structural components establish correct rack geometry, load distribution, and floor-level alignment for large-format SNE rack arrays used in enterprise AV and IT environments. The 27-inch depth and 48-inch height dimensions address the specific requirements of deep, tall SNE configurations common in broadcast and data center facilities.

Product Description

The SANGLE27-3-48 floor angles are engineered to support 3-bay SNE rack arrays that require a 27-inch depth footprint and reach a 48-inch vertical height. This combination of dimensions is associated with large, fully loaded SNE systems that house substantial AV processing, amplification, and IT infrastructure in broadcast, corporate, and government AV facilities. Each angle is fabricated from heavy-gauge steel with factory-machined hole patterns precisely aligned with SNE upright and cross-member attachment points, ensuring a square, level rack array from the initial assembly step. The 27-inch depth dimension provides floor contact that fully supports the rack's center of gravity under maximum equipment loads, reducing tip-forward risk in populated rack configurations. The 48-inch height dimension accommodates the base-to-upright transition geometry of tall SNE rack arrays, providing the structural interface that transfers vertical rack loads to the floor mounting surface. A powder-coat finish protects the angles against corrosion in mechanical rooms, raised-floor data centers, and conditioned equipment spaces. Facilities managers and AV integrators rely on the SANGLE27-3-48 as the first installed component in any large SNE rack build where structural precision and long-term stability are non-negotiable requirements.

Key Features

• 3-Bay SNE Compatibility — Engineered specifically for 3-bay Middle Atlantic SNE rack configurations.
• 27-Inch Depth — Provides stable floor contact for deep SNE configurations under maximum equipment loads.
• 48-Inch Height — Accommodates the base-to-upright geometry of tall SNE rack arrays.
• Heavy-Gauge Steel — Supports fully loaded 3-bay SNE rack arrays without deformation or structural fatigue.
• Pre-Drilled Mounting Holes — Factory-machined to SNE specifications for square, level installation without field modification.
• Powder-Coat Finish — Corrosion resistance for mechanical rooms and raised-floor installation environments.
