Middle Atlantic 6 RU 10-32 Rackrail - RRF6

Product Overview

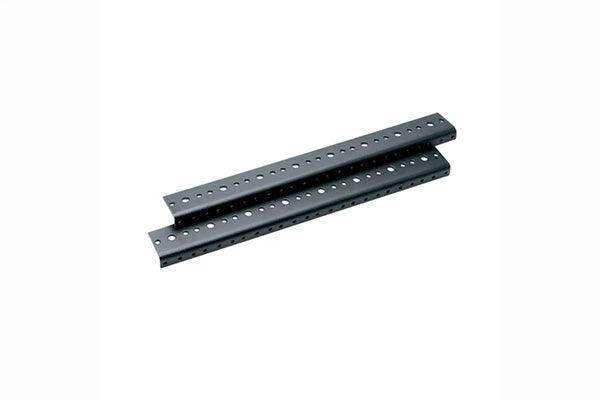

The Middle Atlantic RRF6 is a pair of 6U 10-32 threaded rack rails designed for use with 19-1/8-inch wide rough openings in standard rack enclosures. Constructed from 1/8-inch thick steel with a durable black e-coat finish, these rack rails provide reliable equipment mounting positions for AV, broadcast, and IT rack installations using the 10-32 thread standard. Sold as a pair with EIA standard hole spacing, the RRF6 is a direct-mount rack rail solution for integrators building or retrofitting rack structures that require 6 rack units of threaded mounting positions.

Product Description

Rack rails are the foundation of any equipment rack installation, providing the threaded or square-hole mounting points that secure AV and IT equipment in place. The Middle Atlantic RRF6 rack rail pair offers 6U of 10-32 threaded positions in a 1/8-inch thick all-steel construction — heavy enough to support standard rack equipment weights without deflection. The black e-coat finish provides corrosion resistance and a consistent appearance in the rack interior. EIA standard hole spacing ensures the RRF6 is compatible with all EIA-compliant rack equipment, which covers the vast majority of commercial AV and IT products. The rails are designed for 19-1/8-inch wide rough openings, the standard dimension for most rack cabinets and enclosures. Sold as a pair, the RRF6 provides matched left and right rails for a complete front or rear rail position. At 10.5 inches in length and weighing 1.3 pounds per pair, the RRF6 is a compact rail kit appropriate for shallow rack enclosures, wall mount racks, or any application where a 6U rail pair is needed. AV integrators use these rails in open-frame rack builds, rack furniture installations, and wherever standard rack mounting positions are required.

Key Features

• 6U Rack Rail Pair — Provides 6 rack units of 10-32 threaded mounting positions, sold as a matched pair.
• EIA Standard Hole Spacing — Compatible with all EIA-compliant rack equipment for maximum versatility across AV and IT products.
• 10-32 Thread Standard — Standard thread type used throughout commercial AV and IT rack equipment mounting.
• 1/8-Inch Steel Construction — Heavy-gauge steel provides rigidity and load-bearing strength for rack equipment mounting.
• Black E-Coat Finish — Durable electrocoat finish resists corrosion and maintains appearance in rack interiors.
• 19-1/8 Inch Rough Opening — Designed for standard rack cabinet and enclosure rough opening dimensions.

Technical Specifications
