Middle Atlantic RM-LCD-PNLK – 3-Space Pivot/Tilt LCD Rack Panel

Product Overview

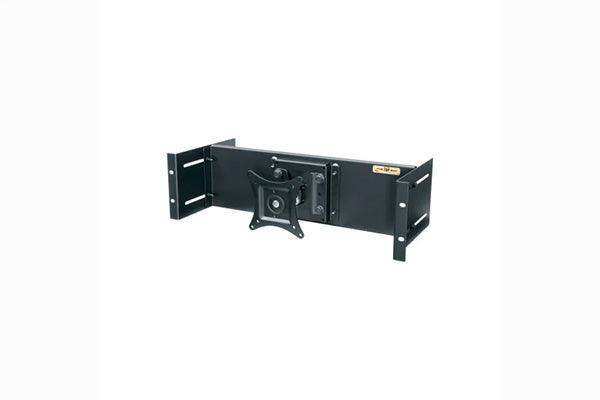

The Middle Atlantic RM-LCD-PNLK is a 3-space LCD rackmount panel with a pivot/tilt knuckle that puts a monitor directly in the equipment rack. It accepts displays with standard VESA 75 and VESA 100 mounting patterns and holds screen sizes from 15 to 19 inches, plus some 20-inch monitors. Built from 16-gauge steel with a black powder-coat finish, it gives integrators a clean, durable way to add a confidence monitor or control display to any standard 19-inch rack.

Product Description

Equipment rooms, broadcast racks, security head ends, and control systems all benefit from a display mounted at the rack face, and the RM-LCD-PNLK makes that installation straightforward. The panel occupies three rack spaces and mounts the monitor on a knuckle that provides pivot and tilt adjustment up to 160 degrees, so technicians can angle the screen toward their working position whether seated at a console or standing at the rack. Generous front-to-back adjustment helps position different display depths flush with the rack face.

Monitor attachment uses the industry-standard VESA 75 and VESA 100 hole patterns, covering the vast majority of small-format LCD displays used in commercial AV and IT integration. The mount carries up to 27 lb (12.2 kg), well above the weight of typical 15 to 20 inch panels, and the maximum overall display width supported is 17.38 inches. Sturdy 16-gauge steel construction with a black powder-coat finish matches surrounding Middle Atlantic rack hardware, and the panel carries RoHS and GREENGUARD listings for commercial deployment. It is one of five LCD mounting styles in the Middle Atlantic line, which also includes fixed and fully articulating models — see related options in our Middle Atlantic collection.

Key Features

• Pivot/Tilt Knuckle — Adjustable knuckle provides up to 160 degrees of tilt to angle the display toward the operator.
• VESA 75 / VESA 100 Compatible — Standard mounting patterns accept most 15 to 19 inch LCD monitors and some 20-inch models.
• 3-Space Rack Panel — Occupies 3 RU in any standard 19-inch equipment rack.
• 27 lb Load Capacity — Supports displays up to 27 lb (12.2 kg) with a maximum overall width of 17.38 inches.
• Front-to-Back Adjustment — Generous depth adjustment positions different monitor profiles cleanly at the rack face.
• 16-Gauge Steel Construction — Black powder-coat finish and heavy-gauge steel suited to commercial installation environments.
• Compliance Listings — RoHS compliant and GREENGUARD listed.
