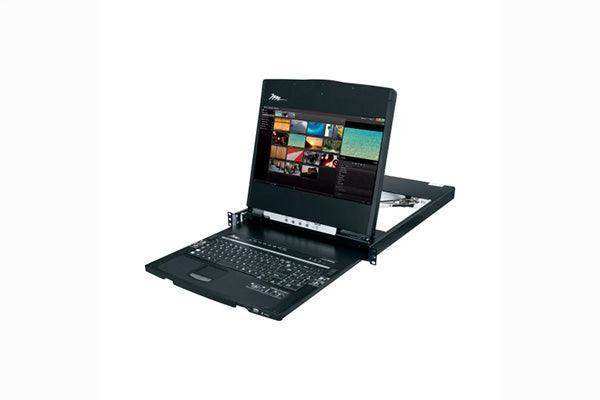

Middle Atlantic RM-KB-LCD17KVMHD – 17" HD Rackmount Console with 8-Port KVM

Product Overview

The Middle Atlantic RM-KB-LCD17KVMHD is a 1U rackmount console combining a 17.3" 1080p widescreen display, integrated keyboard, touchpad, and an 8-port IP-enabled KVM switch for centralized server room management and data center rack control. Built on a fully digital HDMI/DVI platform with HDCP compliance, this rackmount KVM console maintains complete digital signal integrity from source to display with no compatibility issues and no specialty cabling. Quick-install rails and a dual-rail design that allows the monitor to remain open for continuous system monitoring while the keyboard is recessed make it well suited for IT facilities managers, data center operators, and AV system integrators managing multi-server rack environments.

Product Description

The RM-KB-LCD17KVMHD delivers a 100% digital rackmount console solution for environments where multiple servers or systems must be accessed from a single operator station within a standard equipment rack. The 17.3" widescreen display runs at 1920 x 1080 at 60 Hz for sharp, clear visibility of server interfaces, and the integrated keyboard and touchpad provide full input control without requiring a separate KVM station outside the rack.

The integrated 8-port KVM switch is IP-enabled, supporting remote monitoring and management over a network connection. IP-based user connection, user access management, and broadcast mode allow administrators to manage credentials and push commands to multiple connected systems simultaneously. HDMI and DVI inputs with HDCP compliance ensure compatibility with modern server graphics outputs, and the console works with industry-standard cables and extenders without requiring proprietary accessories.

The dual-rail design is a practical field advantage: the monitor section can be left open in the monitoring position while the keyboard tray is retracted, allowing operators to watch system status without occupying rack space unnecessarily. Single-person installation with quick-install rails reduces deployment time. The unit draws 19.4 watts and operates on AC 120/230V (50/60 Hz), making it compatible with standard rack PDUs in both North American and international installations. Compliant with UL 60950, FCC Part 15, RoHS, ISO 9001, and ISO 14001 among other standards.

Key Features

• 17.3" 1080p Widescreen Display — Native 1920 x 1080 at 60 Hz resolution in a 16:9 widescreen format provides sharp visibility of server and system interfaces.
• 8-Port IP-Enabled KVM Switch — Manage up to 8 servers from a single console; IP-based access enables remote monitoring and management over the network.
• 100% Digital HDMI/DVI Platform — HDCP-compliant digital signal path maintains complete signal integrity from source to display with no analog conversion artifacts.
• Standard Cable Compatibility — Works with industry-standard HDMI and DVI cables and extenders; no proprietary cabling required.
• Dual-Rail Design — Monitor can remain open in the monitoring position while the keyboard tray is retracted, enabling continuous system status viewing without blocking rack access.
• Integrated Keyboard and Touchpad — Full input control built into the 1U form factor; no external keyboard, mouse, or display required.
• IP-Based User Access Management — KVM switch supports user credential management, broadcast mode for simultaneous multi-system commands, and remote access over IP.
• Quick-Install Rails — Single-person installation with quick-install rails reduces rack deployment time on large-scale projects.
• 1U Rack Space — Compact 1-rack-space design (16.1" x 25.2" x 1.7") conserves valuable rack real estate in dense server environments.
• Universal Power Input — AC 120/230V (50/60 Hz) operation at 19.4W is compatible with standard rack PDUs in North American and international installations.
• Multi-OS Support — Compatible with Windows, macOS, Linux (Red Hat, SuSE, Mandrake), FreeBSD, Solaris, AIX, Novell NetWare, and DOS environments.

Typical Applications

• Server rooms and data centers requiring centralized rack management
• IT closets and network equipment rooms
• Broadcast control rooms with multi-server rack systems
• Government and enterprise data facilities
• Healthcare IT infrastructure rooms
• Education institution server environments
• AV systems integrators managing complex rack-based systems

Technical Specifications

Frequently Asked Questions

Q: How many servers can the RM-KB-LCD17KVMHD manage?

A: The integrated 8-port KVM switch allows a single console to manage up to 8 servers or systems simultaneously. Multiple consoles can be used in a single rack installation for larger environments.

Q: Does this console require proprietary cabling?

A: No. The RM-KB-LCD17KVMHD is designed to work with industry-standard HDMI and DVI cables and extenders. No specialty cabling or proprietary accessories are required.

Q: Can I access the KVM switch remotely over the network?

A: Yes. The KVM switch is IP-enabled, supporting IP-based user connection and remote monitoring and management over a network connection. User access management controls credentials for each connected administrator.

Q: What operating systems are compatible?

A: The console supports Windows, macOS (9.0 or later), Red Hat Linux (9.0+), SuSE Linux (10.0+), Mandrake Linux (9.0+), FreeBSD (5.5+), Solaris (8+), IBM AIX (4.3+), Novell NetWare (5.0+), and MS-DOS (6.2+).

Q: Can the display stay open while the keyboard is stored?

A: Yes. The dual-rail design allows the monitor to remain in the open position for continuous system monitoring while the keyboard tray is recessed, saving rack space in monitoring-heavy environments.

Q: What is the warranty on the RM-KB-LCD17KVMHD?

A: The unit carries a 1-year limited manufacturer warranty. Contact Creation Networks at https://creationnetworks.net for warranty service details and support options.

Q: Is the RM-KB-LCD17KVMHD compatible with standard rack PDUs?

A: Yes. The unit operates on AC 120/230V (50/60 Hz) at 19.4W, making it compatible with standard rack power distribution units in both North American and international rack installations.
