Middle Atlantic RLNK-P920R – Premium+ PDU 9-Outlet 20A 2-Stage Surge
Middle Atlantic RLNK-P920R – Premium+ PDU 9-Outlet 20A 2-Stage Surge is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

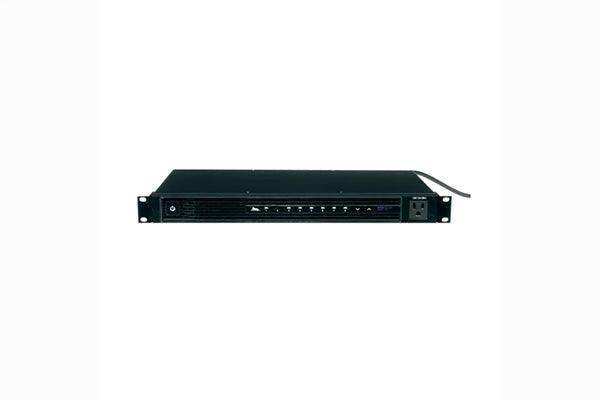

Middle Atlantic RLNK-P920R – Premium+ PDU 9-Outlet 20A 2-Stage Surge
Product Overview
The Middle Atlantic RLNK-P920R is a RackLink Premium+ intelligent power distribution unit with 9 outlets, 20-amp service, and 2-stage surge protection. It provides network-controlled outlet management, allowing AV integrators and IT managers to power-cycle individual devices, monitor load, and automate power sequencing remotely. The 20A rating makes it appropriate for higher-draw equipment configurations in professional rack installations.
Product Description
The RLNK-P920R operates on a 20-amp circuit, providing the headroom needed for racks populated with amplifiers, servers, video processing equipment, and other higher-draw devices. Nine individually switchable outlets give the system administrator granular control over what is powered and when, which is essential for managed AV systems, remote sites, and after-hours power management. The 2-stage surge protection circuit provides a first stage at the PDU inlet and a second stage at individual outlets, offering layered defense against transient voltage events that can damage sensitive electronics. Network connectivity enables integration with building management systems, control system platforms, and remote monitoring tools. Power-on sequencing can be configured to bring equipment up in a controlled order, reducing inrush current stress and preventing equipment conflicts on startup. The RLNK-P920R fits standard 1U rack space and connects to the network via Ethernet for management. Available through Creation Networks for AV and IT infrastructure projects.
Key Features
- 9 Individually Switched Outlets — Remote power control and cycling of each connected device.
- 20-Amp Service — Supports higher-draw rack configurations including amplifiers and servers.
- 2-Stage Surge Protection — Inlet and per-outlet surge suppression for layered equipment protection.
- Network-Controlled Management — Ethernet-connected for remote monitoring, switching, and automation.
- Power Sequencing — Configurable startup order reduces inrush current and equipment conflicts.
- 1U Rackmount Form Factor — Fits standard rack installations without consuming excess rack space.
Typical Applications
- Managed AV rack systems with remote power control requirements
- IT server racks requiring outlet-level switching and monitoring
- Remote AV sites where on-site power cycling is not practical
- Conference room AV racks with automated power management
- Broadcast and production racks with controlled startup sequencing
Technical Specifications
| Specification | Value |
|---|---|
| Model | RLNK-P920R |
| Outlets | 9 |
| Amperage | 20A |
| Surge Protection | 2-Stage (inlet + per-outlet) |
| Management | Network (Ethernet) |
| Form Factor | 1U Rackmount |
Frequently Asked Questions
- What is the difference between the RLNK-P920R and the RLNK-P915R?
- The RLNK-P920R operates on a 20-amp circuit while the RLNK-P915R operates on a 15-amp circuit. Choose the 20A version for racks with higher total load requirements. Both offer the same 9-outlet, 2-stage surge, network-managed feature set.
- What network protocols does the RLNK-P920R support?
- Refer to Middle Atlantic's published specifications for supported protocols. Contact Creation Networks for integration guidance with specific control systems.
- Can the outlet switching be automated on a schedule?
- Yes, the RackLink platform supports scheduled outlet control. Configuration details are available in the Middle Atlantic RackLink documentation.
