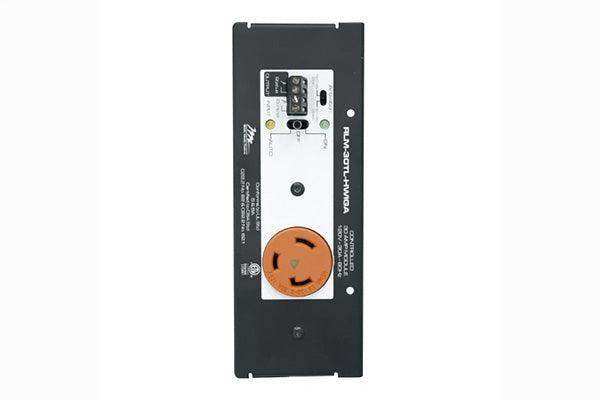

Middle Atlantic MPR Module, 30A Controlled Iso Ground Hardwired - RLM-30TL-HWIGA
Middle Atlantic MPR Module, 30A Controlled Iso Ground Hardwired - RLM-30TL-HWIGA is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Middle Atlantic MPR Module, 30A Controlled Iso Ground Hardwired - R...
Product Overview
The Middle Atlantic RLM-30TL-HWIGA is an MPR power module rated at 30 amps with controlled isolated ground and hardwired installation. It is designed to deliver clean, isolated power to sensitive AV and broadcast equipment where ground noise and interference must be minimized.
Product Description
Ground loops and electrical noise are common problems in professional AV, broadcast, and recording environments. The RLM-30TL-HWIGA provides a controlled isolated ground (IG) circuit that separates the equipment ground from the building's normal ground path, eliminating a primary source of audio hum and video noise. The hardwired configuration ensures a permanent, secure connection at 30 amps, suitable for high-draw equipment groupings. This module integrates into the Middle Atlantic MPR raceway power distribution platform.
Key Features
- 30A rated capacity
- Controlled isolated ground (IG) circuit
- Hardwired installation for permanent, secure connection
- Eliminates ground loop noise in AV and broadcast systems
- Integrates with Middle Atlantic MPR raceway
- Suitable for sensitive audio, video, and broadcast equipment
Typical Applications
- Broadcast production and on-air equipment racks
- Professional recording studio power distribution
- High-end AV systems requiring low-noise power
- Control room equipment with sensitive ground requirements
Technical Specifications
| Specification | Value |
|---|---|
| Amperage | 30A |
| Ground Type | Controlled Isolated Ground (IG) |
| Installation | Hardwired |
| Platform | Middle Atlantic MPR Raceway |
FAQ
- What is an isolated ground and why is it used?
- An isolated ground provides a dedicated ground path for sensitive equipment, physically separated from the standard ground to prevent noise pickup from other devices sharing the same ground conductor.
- Is hardwiring required for the RLM-30TL-HWIGA?
- Yes. This module is hardwired, requiring a licensed electrician for installation in compliance with local electrical codes.
- Where can I purchase the RLM-30TL-HWIGA?
- Available at creationnetworks.net.
