Middle Atlantic RLM-15A – MPR Controlled Power Module, 15A

Product Overview

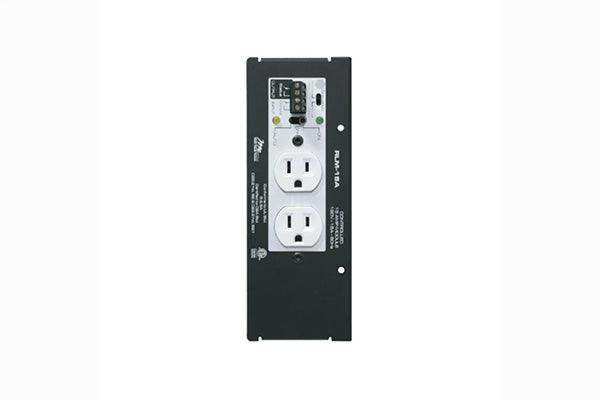

The Middle Atlantic RLM-15A is a 15A controlled power module for MPR Series vertical raceways, providing a single switched circuit with two NEMA 5-15R outlets. It supports both remote and local control, with LED and contact closure status indication so connected equipment state can be confirmed at the module or monitored by a control system. As part of the modular MPR power platform, it gives integrators a fast, flexible way to place controlled power exactly where it is needed in the raceway.

Product Description

Modular power distribution is the core idea behind Middle Atlantic's MPR Series: rather than committing to a fixed outlet strip, integrators populate an MPR vertical raceway with the specific power modules each project requires. The Middle Atlantic RLM-15A MPR power module adds a remotely controlled 15A circuit to that raceway, letting a control system, sequencer, or local switch turn its duplex of 5-15R outlets on and off. That makes it the right module for loads that should not run continuously, such as displays, amplifiers, or accessory equipment that powers down with the room. Status is easy to verify: an LED indicates the circuit state at the module, while a contact closure output reports state back to monitoring or control equipment. The module is steel-constructed for durability and installs in MPR Series vertical raceways as a fast, flexible answer to installation challenges that would otherwise require custom wiring. It is RoHS and Greenguard certified, measures 8 inches in length, and carries a single controlled circuit rated at 15 amps. Heavier loads can step up to the Middle Atlantic RLM-20A 20A controlled module, and noise-sensitive systems can specify the RLM-20IGA isolated ground version, keeping the entire raceway on one consistent platform.

Key Features

• 15A Controlled Circuit — Single switched circuit rated at 15 amps for remotely managed equipment power.
• Remote and Local Control — Circuit can be switched by a control system or operated at the module.
• LED and Contact Closure Status — Visual indication at the module plus a status output for monitoring systems.
• Two NEMA 5-15R Outlets — Duplex receptacle powers a pair of devices from the controlled circuit.
• MPR Raceway Mounting — Drops into MPR Series vertical raceways for fast, flexible power placement.
• Steel Construction — Durable module body built for commercial installation environments.
• RoHS and Greenguard Certified — Meets environmental and indoor air quality standards for commercial projects.

Technical Specifications
