Middle Atlantic PDS-615R 6OUT SEQUENCED 1X15A POWE

Product Overview

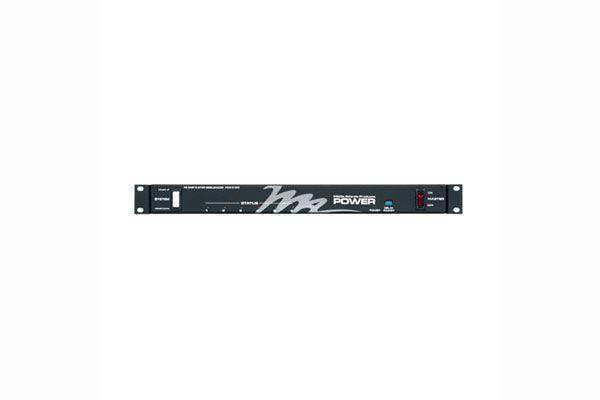

The Middle Atlantic PDS-615R is a 6-outlet sequenced power distribution strip rated at 15 amps, designed to deliver controlled, sequential power-up to AV and broadcast equipment racks. By staggering the startup sequence across outlets, the PDS-615R eliminates inrush current spikes that can trip breakers or damage sensitive electronics when an entire rack powers on simultaneously.

Product Description

Built for professional AV integration and broadcast environments, the PDS-615R mounts in a standard 19-inch rack and provides six sequenced AC outlets on a single 15A circuit. Each outlet activates in a timed sequence on power-up, protecting amplifiers, signal processors, displays, and other rack-mounted devices from voltage sag and overcurrent events. The unit is compact and straightforward to configure, making it a reliable foundation for any professionally managed equipment rack.

Key Features

• 6 sequenced AC outlets — staggered power-up eliminates inrush current spikes
• 15-amp circuit rating suitable for standard AV and IT rack loads
• Rackmount form factor fits standard 19-inch EIA rails
• Simple, reliable sequential switching with no complex programming required
• Helps prevent breaker trips during full-rack power-on events
• Compatible with Middle Atlantic UPS and surge suppression accessories

Typical Applications

• Professional AV integration racks in conference rooms and auditoriums
• Broadcast and production equipment racks
• IT server and network equipment cabinets requiring controlled startup
• House of worship AV systems with multiple amplifiers and signal processors
• Rental and staging rigs where reliable sequenced power is critical

Technical Specifications

FAQ

What does sequenced power distribution mean?

Sequenced power distribution means each outlet activates one at a time in a timed order during power-up, rather than all outlets energizing simultaneously. This prevents the large inrush current that occurs when multiple devices — especially amplifiers — turn on at once, which can trip circuit breakers or cause voltage sag.

How many outlets does the PDS-615R provide?

The PDS-615R provides 6 sequenced AC outlets on a single 15-amp circuit.

Where can I purchase the PDS-615R?

The PDS-615R is available at creationnetworks.net.

Is the PDS-615R compatible with other Middle Atlantic rack accessories?

Yes. The PDS-615R is designed to integrate with Middle Atlantic rack systems and is compatible with Middle Atlantic UPS units and other power accessories.
