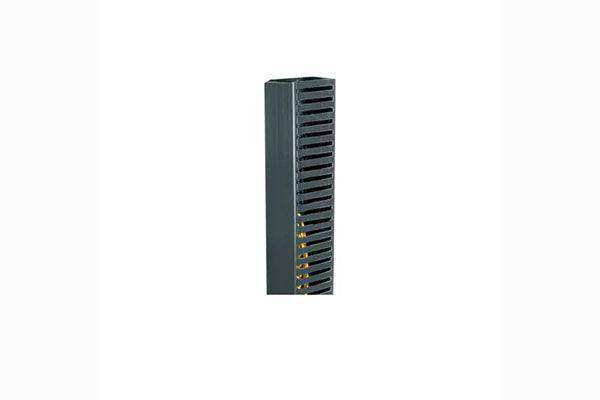

Middle Atlantic PCD – Vertical Plastic Cable Duct Series

Product Overview

The Middle Atlantic PCD Series is a family of vertical plastic cable ducts designed to protect, route, and organize data cables, patch cords, and power cords in two-post and four-post rack installations. A slotted plastic finger design lets installers exit cables exactly where needed, while included hinged covers keep finished cable runs concealed and protected. With single-duct and dual-duct configurations in 30, 38, and 45 rack-unit heights, plus compact 1.5-inch raw duct options, the PCD Series scales from a single equipment rack to a full row of network and AV racks. It is a cost-effective vertical cable management solution for commercial AV integration, IT closets, and equipment room deployments.

Product Description

Effective vertical cable management is the difference between a rack room that is serviceable for years and one that becomes a maintenance liability. The Middle Atlantic PCD Vertical Plastic Cable Duct Series gives integrators and IT facilities teams a straightforward way to dress patch cords and power cabling alongside the rack rail, keeping bend radii controlled and signal and power paths separated. Each duct uses a slotted plastic finger profile, so cables can transition from the duct to equipment at any rack-unit position without sharp edges or tie-wrap pressure points. Individual fingers can be removed to create larger openings for high-density cable bundles or pre-terminated trunks. Hinged plastic covers are included with each duct, allowing quick access during moves, adds, and changes while presenting a clean finished appearance for client walkthroughs. The series is offered in a range of widths and depths to match cable fill requirements, from narrow 1.5-inch raw duct for light patch cord routing up to 4-inch by 8-inch dual-duct assemblies that segregate two cable groups in a single vertical run. Heights of 30, 38, and 45 rack units align with common Middle Atlantic rack frames used in commercial deployment. Mounting hardware is included with all configurations except the 1.5-inch raw duct. For matching racks, lacing bars, and horizontal cable management, browse the full Middle Atlantic collection at Creation Networks.

Key Features

• Slotted Finger Design — Plastic fingers along the full duct height let cables exit exactly where needed at any rack-unit position.
• Removable Fingers — Individual fingers snap out to create larger openings for dense cable bundles or pre-terminated trunk cabling.
• Hinged Covers Included — Plastic covers conceal and protect cabling while allowing fast access during moves, adds, and changes.
• Single and Dual Duct Configurations — Dual-duct models separate power from data or segregate cable groups in one vertical assembly.
• Sized for 2-Post and 4-Post Racks — Available in a range of widths, depths, and heights to match all common two-post and four-post rack frames.
• 30, 38, and 45 RU Heights — Duct heights align with standard Middle Atlantic rack frames for a flush, integrated installation.
• Cost-Effective Cable Protection — Plastic construction delivers organized, protected cable routing at a lower cost than steel duct alternatives.
• Mounting Hardware Included — All configurations ship with mounting hardware except the 1.5-inch width raw duct.

Typical Applications

• Boardroom and conference room equipment racks
• Broadcast studio rack rooms
• Government space network and AV closets
• Training room and all-hands room AV head ends
• Auditorium equipment rooms

Technical Specifications

Frequently Asked Questions

Which racks are PCD vertical cable ducts compatible with?
The PCD Series is offered in widths, depths, and heights designed to match all common Middle Atlantic two-post and four-post rack frames, including relay racks used in network and AV installations.

What is the difference between SC and DC models?
SC models are single-duct assemblies with one hinged cover. DC models are dual-duct assemblies that provide two separate channels, which is useful for separating power cords from data or AV signal cabling.

How do I choose the right duct size?
Match the duct height (30, 38, or 45 RU) to your rack frame, then size the width and depth to your expected cable fill. Larger 4-inch by 8-inch dual-duct models support high-density patch fields, while 2-inch by 3-inch ducts suit lighter cable counts.

Can cables exit the duct at any point?
Yes. The slotted finger design allows cable exit at any position along the duct, and individual fingers can be removed to create larger openings for cable bundles.

Is mounting hardware included?
Yes, mounting hardware is included with all configurations except the 1.5-inch width raw duct versions.

Does Creation Networks provide support for AV integration projects?
Yes. Creation Networks supports integrators, IT teams, and procurement with product selection, project quotes, and commercial deployment guidance. Contact our team for volume pricing on rack and cable management packages.

What warranty applies to Middle Atlantic cable management?
Middle Atlantic products are covered by the manufacturer's warranty. Contact Creation Networks with your model number and we will confirm the current warranty terms for your purchase.
