Middle Atlantic MW-CFRD – MW Split Rear Fan Door Series

Product Overview

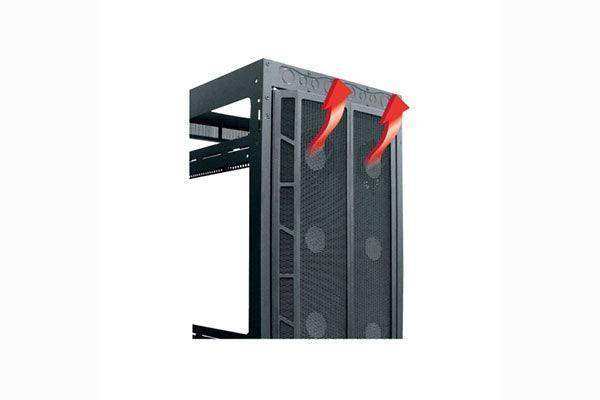

The Middle Atlantic MW-CFRD is a split rear fan door replacement for MW and DRK series racks, providing thermostatic fan-assisted thermal management at the rear of the enclosure. It replaces a standard passive rear door with an active fan door that monitors rack temperature and operates fans automatically based on configurable thresholds. The split door design allows each half to be opened independently, maintaining access to rear-mounted equipment and cabling during servicing.

Product Description

The MW-CFRD installs in place of the standard rear door on compatible Middle Atlantic MW and DRK series racks, converting a passive enclosure into an actively cooled system without requiring external fan trays or modifications to the rack frame. The built-in thermostat monitors air temperature at the rear of the rack and activates the fans when temperature exceeds the set threshold, reducing power consumption during periods of light equipment load. The split door configuration divides the rear door into two independently hinged panels, allowing each half to be opened separately — useful when rear cable access is needed without fully opening the door. Fan speed is thermostatic, so noise levels scale with actual heat load rather than running at full speed continuously. The unit mounts directly to the rear door frame of compatible MW and DRK racks using standard hardware. Available through Creation Networks at creationnetworks.net.

Key Features

• Thermostatic Fan Control — Fans activate and modulate based on rack temperature, not a fixed schedule.
• Split Door Design — Two independently hinged panels allow partial rear access without opening the full door.
• Drop-In Replacement — Installs in place of the standard rear door on compatible MW and DRK racks.
• Active Rear Exhaust — Draws warm air out of the rear of the enclosure to reduce equipment thermal load.
• Configurable Thresholds — Temperature setpoints can be adjusted to match the equipment load and room conditions.
• Compatible with MW and DRK Series — Fits existing rack frames without structural modification.

Typical Applications

• MW and DRK series racks with high-density equipment generating significant heat
• Enclosed AV equipment racks in rooms without dedicated HVAC management
• Racks in closets and equipment rooms where passive ventilation is insufficient
• Retrofitting existing enclosed racks with active thermal management

Technical Specifications

Frequently Asked Questions

Which racks is the MW-CFRD compatible with?

The MW-CFRD is designed as a rear door replacement for Middle Atlantic MW and DRK series racks. Verify your specific rack model's rear door dimensions against Middle Atlantic's compatibility guide before ordering.

Does the fan run continuously?

No. The thermostatic control activates fans only when the monitored temperature exceeds the configured threshold, reducing noise and power draw during periods of light equipment load.

Can I open one half of the door without opening the other?

Yes. The split design allows each door panel to be opened independently, providing partial rear access without fully opening the enclosure.

Where can I order the MW-CFRD?

Available through Creation Networks, an authorized Middle Atlantic distributor.
