Middle Atlantic MW-10FT – 10 Inch Fan Top Panel Series

Product Overview

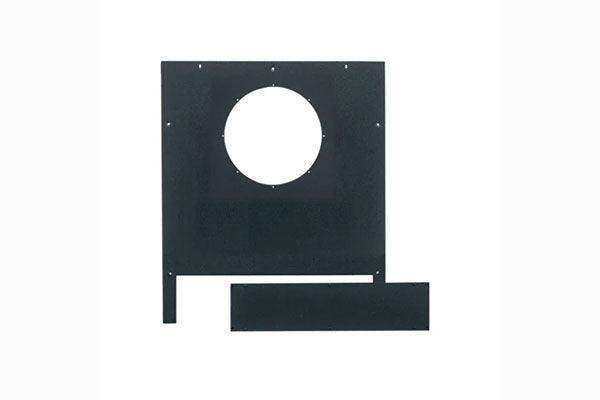

The Middle Atlantic MW-10FT Series brings active thermal management to MRK, VRK, VMRK, and WMRK equipment racks using a single 10-inch exhaust fan. The base MW-10FT is a fan-ready top panel that mounts one 10-inch fan, while the MW-10FT-550CFM ships as a complete 550 CFM fan top and the MW-10FT-FC adds an integrated fan controller to the same 550 CFM platform. A removable two-space service plate lets installers take the top off without disturbing cable bundles. Steel construction with a black finish matches Middle Atlantic rack enclosures.

Product Description

For enclosed racks carrying amplifiers, switchers, servers, and other heat-producing equipment, a single large-diameter exhaust fan moves substantial air while keeping noise and complexity down. The Middle Atlantic MW-10FT fan top panel series uses one 10-inch fan position in place of the standard rack top, giving integrators an efficient top-exhaust path for commercial AV installation and IT equipment room deployments. The fan-ready MW-10FT panel lets you select and install your own 10-inch fan to match the rack's thermal load. The MW-10FT-550CFM arrives as a factory-built 550 CFM fan top for high heat loads, and the MW-10FT-FC pairs the same 550 CFM airflow with an integrated fan controller, a strong choice when the rack lives in or near occupied spaces and proportional, quieter operation is required. The series fits Middle Atlantic WR, WRK, MRK, VRK, VMRK, and DRK racks, so it can be specified for new rack builds or retrofitted to existing installations. Each top includes a removable two-space service plate, allowing the top to be removed for fan maintenance or equipment access without disrupting the vertical cable bundles routed through it. Steel construction with a durable black finish maintains a consistent equipment room appearance. Find compatible racks, fan accessories, and power distribution in the Middle Atlantic collection at Creation Networks.

Key Features

• Single 10-Inch Fan Design — One large-diameter fan position provides efficient top exhaust for enclosed equipment racks.
• 550 CFM Factory Option — The MW-10FT-550CFM ships as a complete fan top delivering 550 CFM for high-density thermal loads.
• Integrated Controller Option — The MW-10FT-FC combines 550 CFM airflow with a fan controller for managed, quieter operation near occupied rooms.
• Fan-Ready Base Panel — The MW-10FT accepts one 10-inch fan, letting integrators match the fan to the rack's actual heat load.
• Broad Rack Compatibility — Fits Middle Atlantic WR, WRK, MRK, VRK, VMRK, and DRK rack enclosures.
• Removable Two-Space Service Plate — Permits top removal without disrupting cable bundles, simplifying service in finished installations.
• Steel Construction, Black Finish — Durable steel panel matches Middle Atlantic racks for a uniform commercial deployment.

Typical Applications

• Boardroom and conference room equipment racks
• Commercial meeting space and huddle room rack enclosures
• House of worship and auditorium amplifier racks
• Broadcast studio equipment racks
• Government space and training room AV head ends

Technical Specifications

Frequently Asked Questions

Which Middle Atlantic racks accept the MW-10FT Series?
The series fits WR, WRK, MRK, VRK, VMRK, and DRK racks, covering most Middle Atlantic floor-standing enclosures specified in commercial AV integration.

Does the MW-10FT include a fan?
No. The base MW-10FT is a fan-ready panel that mounts one 10-inch fan of your choosing. The MW-10FT-550CFM and MW-10FT-FC ship as complete fan top assemblies rated at 550 CFM.

When is the MW-10FT-FC controller version the right choice?
Choose the MW-10FT-FC when the rack is installed in or near occupied spaces such as boardrooms or conference rooms, where controlled fan operation and reduced noise are important.

Can this fan top be retrofitted to an installed rack?
Yes. The fan top replaces the standard top panel on compatible racks, and the removable two-space service plate allows the swap without disturbing existing cable bundles.

How does the MW-10FT compare with the MW-4FT Series?
The MW-10FT uses one 10-inch fan, while the MW-4FT mounts up to four 4-1/2 inch fans. Both serve the same rack families; selection comes down to airflow requirements, fan preference, and acoustic goals for the installation.

What warranty and support are available?
Middle Atlantic products carry the manufacturer's warranty, and Creation Networks supports integrators, IT teams, and procurement with model selection, thermal planning, and project quotes. Contact us with your rack model to confirm fit.
