Middle Atlantic MRK-4436-NVR – 44RU 36" Deep NVR Security Rack

Product Overview

The Middle Atlantic MRK-4436-NVR is a 44-space, 36-inch deep floor-standing rack enclosure pre-configured for network video recorder (NVR) and physical security system deployments. Built on Middle Atlantic's MRK Series platform—known for fully welded construction and high seismic load ratings—this NVR rack arrives with power distribution, cable management, brush grommet panels, and vented doors included as a single part number. It is the preferred choice for installing contractors on multi-bay security and surveillance installations where structural integrity and efficient installation are priorities. The MRK-4436-NVR is suited for security operations centers, commercial building surveillance infrastructure, and multi-camera NVR system deployments requiring a purpose-configured rack enclosure.

Product Description

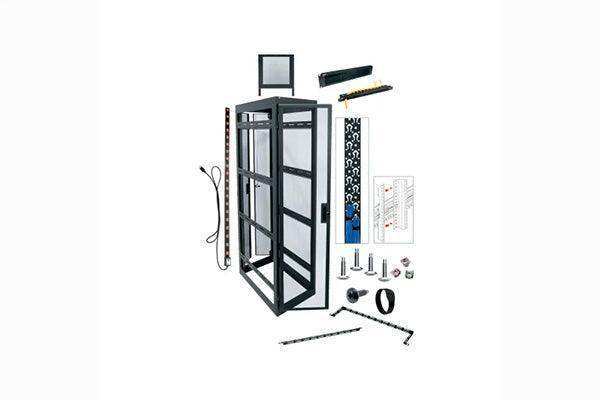

The MRK-4436-NVR delivers 44 rack units in a 36-inch deep fully welded steel enclosure designed to house NVR appliances, PoE switches, UPS systems, and associated security infrastructure. Fully welded construction provides greater rigidity and load capacity compared to knockdown rack designs, and the MRK Series carries a high seismic load rating that meets requirements for installations in seismic zones. The included 20A, 20-outlet corded power strip (PDT-2020C-NS) handles power distribution for high-draw NVR and switching equipment without requiring a separate PDU purchase. The enclosure includes a 64% open front door for front-access airflow, a 79% open split rear door for rear cable access and thermal exhaust, and a 64% open top for additional airflow and top cable entry. Cable management hardware includes a LACE-OP lacer strip, four straight lacer bars, two offset lacer bars, and 12 Velcro cable straps. Brush grommet panels (1-space and 2-space) provide clean cable passage points without requiring conduit. Front and rear cage nut rackrails with one pair of cage nut Z-rail adapters support both 6mm and 10-32 threaded fasteners. Racks are designed to gang together in multi-bay configurations when fully loaded. The package includes 100 6mm threaded cage nuts and rack screws, 50 10-32 threaded cage nuts and rack screws, side panels, and leveling feet.

Key Features

• Fully Welded Construction — Provides greater structural rigidity and load capacity than knockdown designs, suited for high-density NVR and security equipment installations.
• High Seismic Load Rating — MRK Series carries seismic certification for installations in seismic zone environments and mission-critical deployments.
• NVR Pre-Configured Accessory Package — Ships with power, cable management, brush grommet panels, and hardware configured for network video recorder system installations.
• 20A, 20-Outlet Corded PDU Included — PDT-2020C-NS provides sufficient outlet density for NVR units, PoE switches, and supporting network equipment.
• 64% Open Front Door and 79% Open Split Rear Door — High-airflow vented doors support passive cooling for heat-generating NVR and storage equipment.
• Multi-Bay Gang Capability — MRK Series racks gang together when fully loaded, enabling clean multi-bay security rack installations without gaps.
• Dual Fastener System — Accepts both 6mm and 10-32 threaded cage nuts, compatible with a wide range of rackmount security and network appliances.
• Brush Grommet Panels Included — 1RU and 2RU brush grommet panels provide cable passage points for structured cabling without open gaps in the enclosure.
• Comprehensive Cable Management — LACE-OP lacer strip, straight and offset lacer bars, and 12 Velcro straps manage camera, network, and power cabling within the rack.
• Side Panels and Leveling Feet Included — Finished appearance and stable positioning are provided out of the box without additional accessory purchases.

Typical Applications

• Network video recorder (NVR) and IP camera system racks
• Security operations centers and surveillance control rooms
• Commercial building physical security infrastructure
• Retail loss prevention and multi-camera NVR deployments
• Corporate campus security system equipment rooms
• Education facility surveillance and access control infrastructure
• Healthcare and government facility security systems
• Multi-bay security rack installations requiring seismic compliance

Technical Specifications

Frequently Asked Questions

Q: What type of equipment is the MRK-4436-NVR designed for?

A: The MRK-4436-NVR is pre-configured for network video recorder systems, PoE switches, IP camera management appliances, and associated physical security infrastructure. It accommodates any standard EIA-310 19-inch rackmount equipment up to 44 rack units.

Q: Does the rack meet seismic requirements?

A: Yes. The MRK Series carries a high seismic load rating and seismic certification, making it suitable for installations in seismic zones and projects requiring seismic compliance documentation.

Q: How many power outlets does the included PDU provide?

A: The included PDT-2020C-NS power strip provides 20 outlets on a 20-amp circuit, suitable for powering NVR units, PoE switches, UPS systems, and network equipment within the rack.

Q: Can multiple MRK-4436-NVR racks be ganged together in a multi-bay configuration?

A: Yes. The MRK Series is engineered to gang together when fully loaded, allowing adjacent racks to share structural support in multi-bay security room installations.

Q: What fastener types does this rack support?

A: The MRK-4436-NVR includes both 6mm threaded cage nuts (100 qty) and 10-32 threaded cage nuts (50 qty), along with corresponding rack screws and Z-rail adapters, supporting the full range of rackmount security and network hardware.

Q: Is the MRK-4436-NVR compatible with standard AV rack accessories?

A: Yes. The front and rear cage nut rackrails accept standard EIA-310 19-inch rackmount equipment and accessories. Middle Atlantic also offers a full range of rackmount shelves, cable management, and mounting hardware compatible with the MRK Series.

Q: What warranty applies to this product?

A: Middle Atlantic MRK Series products carry Legrand AV's standard commercial product warranty. Contact Creation Networks for current warranty terms, lead times, and procurement support.

Q: Is freight delivery required?

A: Yes. Due to its size and fully welded steel construction, the MRK-4436-NVR ships via freight carrier. Contact Creation Networks at creationnetworks.net for shipping quotes and estimated delivery times.
