Middle Atlantic MRK-4431-DVR – Pre-Configured DVR Security Rack, 44 RU

Product Overview

The Middle Atlantic MRK-4431-DVR is a pre-configured DVR equipment rack built for surveillance recording systems and security head-end installations in commercial facilities. This 44 RU, 31-inch deep MRK Series enclosure arrives with power distribution, cable management, and ventilated doors already included, so installing contractors can rack recording hardware without sourcing accessories separately. With its fully welded steel frame and high seismic load rating, this security rack enclosure is a dependable choice for government, campus, and enterprise security deployments.

Product Description

Specify the MRK Series when you need an equipment rack built to perform like a workhorse on larger-scale projects. The MRK-4431-DVR is factory-configured for DVR and video surveillance recording equipment, pairing 44 rack spaces of capacity with a 31-inch usable mounting depth in a 22-inch wide frame. Fully welded construction delivers the strength and rigidity that multi-bay installations demand, and MRK racks gang together even when fully loaded, which simplifies phased build-outs in security equipment rooms. Airflow is addressed with a 64% open front door, a 79% open split rear door, and a 64% open top, keeping recording appliances and storage arrays ventilated around the clock. A 20A, 20-outlet corded power strip (PDT-2020C-NS) is included for clean, consolidated power distribution to rack-mounted devices. Cable management is handled by an included LACE-OP lacer strip, four straight and two offset lacer bars, and twelve hook-and-loop straps, while 1-space and 2-space brush grommet panels manage cable pass-through without dust intrusion. Front and rear 10-32 threaded rackrail with 100 included rack screws accommodates standard EIA 19-inch equipment, and side panels plus leveling feet complete the enclosure. The series also carries seismic certification, making it suitable for jurisdictions and facilities that require seismic-rated AV and security infrastructure. For integrators handling commercial AV installation alongside security work, this rack keeps both disciplines on a common, proven mounting platform.

Key Features

• Pre-Configured for DVR Systems — Ships factory-configured for surveillance recording equipment, reducing accessory sourcing and on-site assembly time.
• Fully Welded Construction — The welded steel frame provides the strength and rigidity required for heavy recording and storage equipment loads.
• High Seismic Load Rating — Seismic certification supports deployments in facilities and regions with seismic compliance requirements.
• Gangable Design — Racks gang together even when fully loaded, simplifying multi-bay security and AV equipment room build-outs.
• Ventilated Doors and Top — A 64% open front door, 79% open split rear door, and 64% open top promote passive airflow for continuously running equipment.
• Included Power Distribution — The 20A, 20-outlet PDT-2020C-NS corded power strip consolidates device power inside the rack.

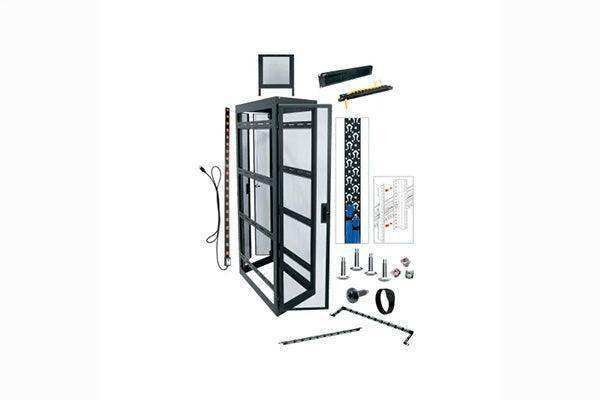

• Complete Cable Management Kit — Includes a LACE-OP lacer strip, six lacer bars, twelve hook-and-loop straps, and brush grommet panels for organized, serviceable cabling.
• Ready-to-Mount Hardware — Front and rear 10-32 threaded rackrail with 100 rack screws, side panels, and leveling feet are all in the box.

Typical Applications

• Government space
• House of worship
• Commercial meeting space
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

What equipment is the MRK-4431-DVR designed for?

It is factory-configured for DVR and NVR surveillance recording systems, and it accepts any standard EIA 19-inch rack-mount equipment, including servers, storage, and AV components.

Does this rack include power distribution?

Yes. A 20A, 20-outlet corded power strip (PDT-2020C-NS) is included, so recording devices and accessories can be powered inside the enclosure from day one.

Can multiple MRK racks be joined for larger installations?

Yes. MRK Series racks gang together even when fully loaded, which makes them well suited to multi-bay security and AV equipment rooms.

Is the rack suitable for seismic-rated projects?

The MRK Series carries a high seismic load rating and seismic certification, supporting installations where seismic compliance is specified.

How is airflow handled for continuously running recorders?

The 64% open front door, 79% open split rear door, and 64% open top provide generous passive ventilation for 24/7 recording equipment.

What mounting hardware is included?

The rack ships with front and rear 10-32 threaded rackrail, 100 rack screws, side panels, leveling feet, and a complete cable management kit.

What warranty and support apply?

The rack is covered by Middle Atlantic's manufacturer warranty. Contact Creation Networks for warranty details, lead times, and help specifying the right rack for your project.
