Middle Atlantic MPR Always On Modules – 15A & 20A Raceway Power

Product Overview

Middle Atlantic MPR Always On modules deliver constant, unswitched AC power to equipment mounted in MPR Series modular power raceways. Available in 15A and 20A versions with duplex or IEC outlet configurations, these modules let integrators customize rack power distribution to match the exact load profile of each project. Each module accepts 115V input power through a unique genderless connector and is built from steel with a black textured powder coat finish for long service life in commercial installations.

Product Description

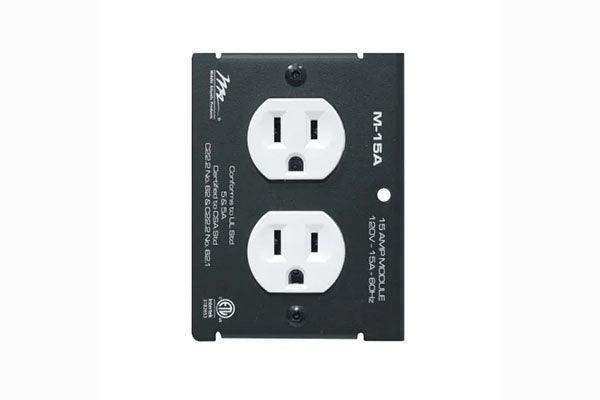

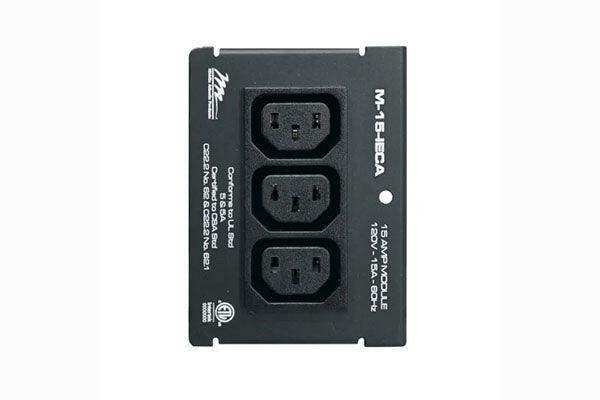

The MPR Series modular power raceway replaces fixed-configuration power strips with a build-to-suit approach: integrators select the raceway, then populate it with the specific power modules each rack requires. Always On modules are the foundation of that design, providing uninterrupted power for equipment that must never be switched off — network switches, control processors, DSPs, and other infrastructure devices in commercial AV deployments. Four variants cover common requirements: the M-15A and M-20A supply 15A and 20A duplex outlet power respectively, while the M-15-IECA and M-20-IECA provide IEC outlet connections for equipment with IEC power inlets. Every module connects to the raceway circuit through a genderless 115V input connector, which pairs with MPR J Series jumpers for fast, orientation-proof installation with no field termination. The steel chassis and black textured powder coat finish match Middle Atlantic rack hardware and stand up to the handling of integration shops and equipment rooms. Because modules can be added, swapped, or rearranged as project needs change, the MPR platform reduces rework when rack elevations evolve between design and commissioning. Build out the complete power system with raceways, jumpers, and sequencing modules from our Middle Atlantic collection.

Key Features

• Always On Power Delivery — Provides constant, unswitched AC power for infrastructure equipment that must remain energized at all times.
• Customizable Power Strip Design — Modules let integrators configure raceway power distribution to meet the exact needs of each project.
• MPR Raceway Compatibility — Designed to install in Middle Atlantic MPR Series raceways for vertical in-rack power distribution.
• 15A and 20A Options — Choose the current rating that matches the connected equipment load and circuit design.
• Duplex or IEC Outlets — Duplex models serve standard equipment cords while IECA models connect gear with IEC power inlets.
• Genderless 115V Input Connector — Unique genderless connector accepts MPR jumpers in either orientation for error-free installation.
• Steel Construction — Steel housing with black textured powder coat finish matches Middle Atlantic racks and resists wear in commercial environments.

Technical Specifications

Available Variants
