Middle Atlantic MDV-CNR3 MDV SYS CORNER UNIT
Product Overview

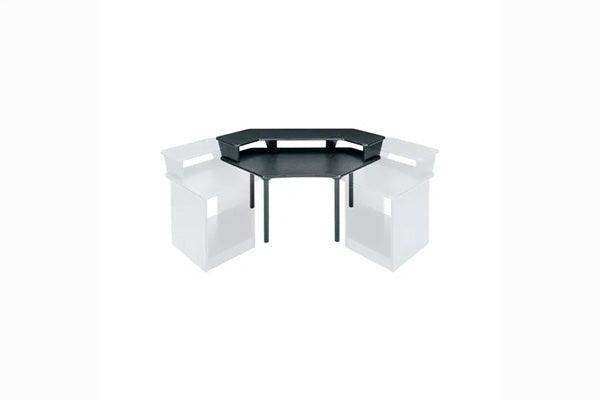

The Middle Atlantic MDV-CNR3 is a corner unit for the MDV (Modular Design Video) system, providing the structural connection element required to create angled multi-bay control room console configurations. The MDV system is a professional modular furniture platform designed for broadcast, control room, and operations center environments where operator ergonomics, equipment integration, and a structured aesthetic must all be maintained. The MDV-CNR3 connects adjacent MDV console bays at a defined corner angle, enabling L-shaped, U-shaped, and multi-position operator workstation layouts without custom fabrication.
Product Description
The MDV-CNR3 is engineered to serve as the structural and visual cornerstone of an MDV console system, filling the transition zone between straight MDV bays in multi-position control room configurations. The unit is fabricated to match the height, finish, and panel line of all MDV system components, ensuring a seamless, uniform appearance across complex multi-bay layouts. The corner geometry is optimized for operator accessibility—positioning monitors, control panels, and equipment within ergonomic reach of a seated operator across adjacent console bays. The MDV system's modularity means the MDV-CNR3 can be combined with any number of straight MDV bays, work surface sections, and equipment mounting frames to build out control rooms of varying scale. The unit integrates with MDV cable management provisions, allowing cabling from adjacent bays to route through the corner unit cleanly without external conduit or exposed bundles. The MDV-CNR3 is finished in Middle Atlantic's standard MDV system color and texture to maintain visual consistency across the complete console installation. Hardware for securing the corner unit to adjacent MDV bays is included. The MDV system, including the MDV-CNR3, is designed for permanent control room installation by professional AV integrators. All components of the MDV line are built to withstand the demands of 24/7 broadcast and operations center environments.
Key Features
- MDV System Corner Unit — Structural connector for angled multi-bay MDV console configurations.
- Enables L, U, and Multi-Position Layouts — Supports diverse control room floor plan requirements.
- Matched MDV Finish and Height — Seamless visual integration with adjacent MDV console bays.
- Ergonomic Corner Geometry — Positions equipment and monitors within operator reach across bay transitions.
- Integrated Cable Routing — Connects MDV cable management provisions between adjacent bays through the corner.
- Modular System Compatibility — Pairs with any MDV straight bay, work surface, and equipment frame.
- Hardware Included — Mounting and connection hardware for joining to adjacent MDV bays.
- 24/7 Rated Construction — Built for continuous-use broadcast and operations center environments.
Typical Applications
- Broadcast master control and production room multi-position consoles
- Network operations center and command center operator workstations
- Television and radio studio control room console builds
- Security operations and dispatch center console configurations
- Government and military command center furniture systems
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Corner Unit |
| System | MDV (Modular Design Video) |
| Configuration | Connects adjacent straight MDV bays at corner angle |
| Finish | MDV system standard |
| Cable Management | Integrated, connects to adjacent MDV bay provisions |
| Hardware | Included for bay-to-bay connection |
| Application | Permanent professional installation |
Frequently Asked Questions
- What angle does the MDV-CNR3 create between adjacent bays?
- The MDV-CNR3 is designed to create the standard MDV system corner angle between adjacent bays. Refer to Middle Atlantic MDV system layout documentation for specific corner degree options available within the product line.
- Can the MDV-CNR3 be used to connect three or more bays?
- The MDV-CNR3 connects two adjacent MDV bays at a corner transition. For U-shaped or more complex configurations, multiple corner units combined with straight bay sections are used to complete the layout.
- Does the MDV-CNR3 provide equipment mounting space?
- The MDV-CNR3 is a structural corner unit. Equipment mounting is handled by adjacent MDV straight bays and equipment frame components. The corner unit provides the transition geometry and cable routing between those bays.
- Where can I purchase the MDV-CNR3?
- The MDV-CNR3 is available through Creation Networks at creationnetworks.net.
