Middle Atlantic M-30TL-HWA – 30A L5-30R MPR Module, Hardwired

Product Overview

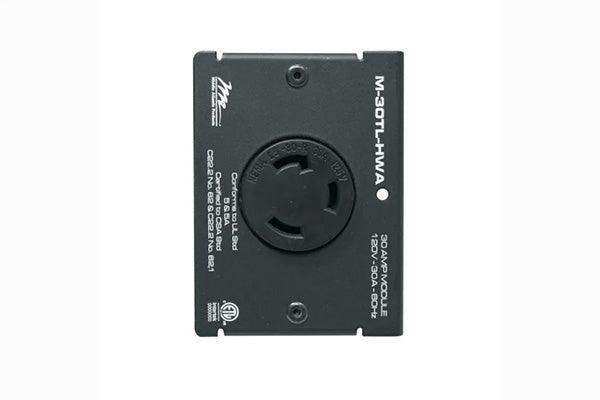

The Middle Atlantic M-30TL-HWA is a 4-inch always-on power module for MPR series raceways, delivering a 30-amp NEMA L5-30R twist-lock receptacle from a hardwired 115V input. It snaps into the open channel of an MPR raceway, letting integrators place high-current twist-lock power exactly where a UPS, power conditioner, or amplifier needs it. The strain-relieved hardwired connection is terminated by an electrician, keeping the high-amperage feed permanent and secure. Steel construction with a black textured powder coat matches the rest of the rack power system.

Product Description

Middle Atlantic's MPR system treats rack power as a set of modules rather than a fixed strip, and the M-30TL-HWA is the module to specify when a single device needs a dedicated 30-amp circuit. The NEMA L5-30R twist-lock receptacle locks the mating plug in place, preventing accidental disconnection of critical loads such as rack-mount UPS units and high-current power distribution gear. Unlike cord-fed modules, the HWA hardwired version connects incoming 115V power through a strain-relieved hardwired termination, the appropriate method for a permanently installed 30-amp branch circuit. The module occupies a 4-inch position in any MPR series raceway, where it can sit alongside standard duplex modules, protected modules, and blank covers in whatever arrangement the equipment layout demands. Because the module is always-on, the connected load is unaffected by sequencing elsewhere in the rack. Steel housing with a black textured powder coat finish stands up to repeated plug cycles and matches Middle Atlantic rack hardware. Specify one M-30TL-HWA per 30-amp twist-lock load, and complete the raceway with additional MPR modules and tails from Creation Networks.

Key Features

• 30A Twist-Lock Receptacle — NEMA L5-30R locking outlet secures high-current plugs against accidental pull-out.
• Hardwired 115V Input — Strain-relieved hardwired connection suits permanent 30-amp branch circuit installation.
• MPR Raceway Compatible — 4-inch module drops into any MPR series raceway channel position.
• Always-On Operation — Keeps UPS and conditioning equipment powered independent of switching elsewhere in the rack.
• Modular Power Placement — Position the outlet at the exact rack height the connected device requires.
• Steel Construction — Black textured powder coat finish over steel for long service life.
