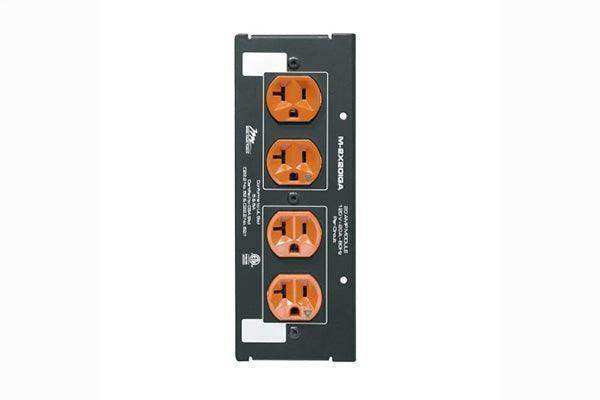

Middle Atlantic M-2X20IGA – 20A Isolated Ground Double Duplex MPR Module

Product Overview

The Middle Atlantic M-2X20IGA is an 8" power module that adds a 20A isolated ground double duplex outlet set to MPR Series vertical power raceways. As part of Middle Atlantic's modular power platform, it lets integrators build a rack power strip configured to the exact outlet types a project requires. Steel construction and a black textured powder coat finish match the rest of the MPR system.

Product Description

Middle Atlantic's MPR Series takes a modular approach to rack power distribution: instead of a fixed outlet layout, installers populate a raceway with the specific power modules each system needs. The M-2X20IGA contributes four isolated ground receptacles in a double duplex, 20-amp configuration, making it the right module for audio amplifiers, DSPs, and other noise-sensitive electronics that benefit from an isolated ground power path. Isolated ground outlets keep the equipment grounding conductor separate from the raceway chassis ground, a common specification in broadcast, conferencing, and performance audio installations. The module accepts 115V input power through Middle Atlantic's genderless connector system, which simplifies linking modules along the raceway. Its 8" form factor drops into MPR Series raceways without tools beyond standard installation hardware, and the steel housing with black textured powder coat stands up to rack-room handling. For AV integrators standardizing on MPR vertical power, the M-2X20IGA covers the always-on, isolated ground portion of the outlet plan. Combine it with standard duplex, IEC, or controlled MPR modules to complete a customized rack power distribution layout.

Key Features

• 20A Double Duplex Configuration — Provides four receptacles rated for 20-amp service in a single 8" module.
• Isolated Ground Receptacles — Separates the equipment ground from chassis ground to support noise-sensitive audio and video gear.
• MPR Series Compatibility — Installs directly into Middle Atlantic MPR Series vertical power raceways.
• Modular Power Customization — Mix with other MPR modules to build a power strip matched to project requirements.
• Genderless 115V Connector — Unique connector design simplifies power linking between modules in the raceway.
• Steel Construction — Durable housing with a black textured powder coat finish for a uniform rack appearance.

Technical Specifications
