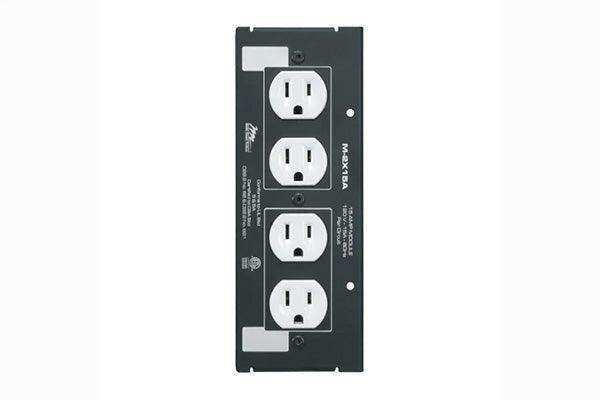

Middle Atlantic M-2X15A – 8 in. MPR 15A Double Duplex Module

Product Overview

The Middle Atlantic M-2X15A is an 8-inch, 15 amp double duplex MPR power module that snaps into MPR Series raceways to provide four always-on outlets in a single module position. As part of the MPR Always On family, it delivers unswitched 115V power to equipment that should never lose its feed. Steel construction with a black textured powder coat finish and a unique genderless input connector make installation fast and configuration flexible.

Product Description

The MPR system lets integrators build a power strip to match the project instead of forcing the project to match the strip, and the M-2X15A is the high-density option in the Always On lineup. Where a standard duplex module provides two outlets per position, this double duplex MPR power module packs four 15 amp outlets into one 8-inch module — useful behind clusters of source gear, network equipment, or any zone of the rack where outlet demand outruns raceway space. It accepts 115V input power through a unique genderless connector, which simplifies wiring between modules and jumpers since there is no plug orientation to manage. Pair it with MPR jumpers such as the JMS-12X6 to carry the circuit along the raceway, and mix it with controlled or protected modules where switched or surge-protected power is required. Steel construction with a black textured powder coat finish matches the MPR raceway and Middle Atlantic enclosures. Because modules can be added, moved, or swapped as the rack evolves, the M-2X15A protects the original power infrastructure investment. Shop MPR raceways, jumpers, and other Middle Atlantic power components at Creation Networks.

Key Features

• Double Duplex Outlet Density — Four 15 amp outlets in a single 8-inch module position for outlet-hungry rack zones.
• Always On Power — Provides unswitched power for equipment that must stay energized at all times.
• MPR Raceway Compatible — Installs directly into Middle Atlantic MPR Series raceways such as the MPR-9A.
• Genderless 115V Connector — Unique genderless input connector simplifies module-to-module and jumper wiring.
• Customizable Power Configuration — Modules allow the power strip to be tailored to exact project needs and reconfigured later.
• Steel Construction — Black textured powder coat steel housing stands up to commercial installation environments.

Technical Specifications
