Middle Atlantic M-20TL-HWA – 20A L5-20R Twist-Lock MPR Module
Product Overview

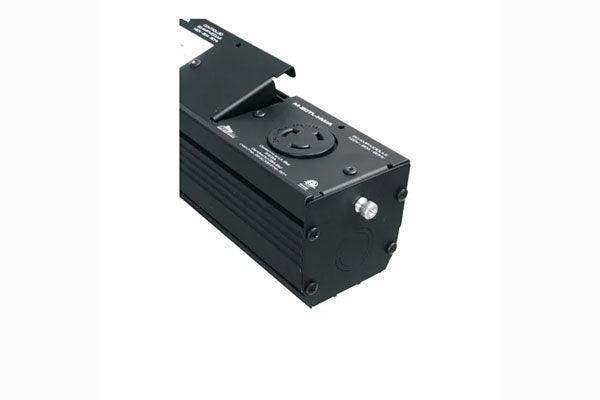

The Middle Atlantic M-20TL-HWA is a 4-inch MPR Series power module that provides a 20-amp NEMA L5-20R twist-lock receptacle on a hardwired, always-on circuit. Designed to snap into MPR Series raceways, it lets integrators build a vertical power strip configured to the exact requirements of each rack. Steel construction with a black textured powder coat finish matches the rest of the MPR platform.
Product Description
The MPR Series treats rack power as a modular system: a vertical raceway supplies the structure, and individual modules supply the outlets, so the power strip is customized to meet project needs rather than forced into a fixed outlet count. The Middle Atlantic M-20TL-HWA contributes a twist-lock connection to that system — a single NEMA L5-20R receptacle rated for 20-amp service, ideal for equipment with locking plugs that must not be dislodged by vibration or cable tension. As a hardwired, always-on module, it ties directly to the supply circuit and keeps its receptacle energized at all times, appropriate for loads that should never be switched or sequenced off. The module operates on 115V input power and uses the MPR platform's unique genderless connector for power pass-through within the raceway. Like the rest of the line, it is built from steel with a black textured powder coat finish for durability in the rack environment. The 4-inch module height occupies a single module position in MPR-6A, MPR-8A, and MPR-9A raceways. For higher-current twist-lock service, the companion M-30TL-HWA provides a 30-amp L5-30R receptacle in the same hardwired format.
Key Features
- 20A Twist-Lock Receptacle — Single NEMA L5-20R locking outlet secures plugs against accidental disconnection.
- Hardwired Always-On Circuit — Direct-wired feed keeps the receptacle energized at all times for critical loads.
- MPR Raceway Compatible — Installs in MPR Series raceways as part of a fully customized vertical power strip.
- Genderless Power Connector — 115V input with the MPR platform's unique genderless connector design.
- Steel Construction — Black textured powder coat finish matches MPR raceways and rack hardware.
Technical Specifications
| Model | M-20TL-HWA |
|---|---|
| Brand | Middle Atlantic Products (Legrand AV) |
| Product Type | MPR Series always-on power module, hardwired |
| Receptacle | NEMA L5-20R twist-lock |
| Rating | 20 A |
| Input | 115V, genderless connector |
| Module Size | 4 in. |
| Compatibility | MPR Series raceways |
| Construction | Steel, black textured powder coat finish |
| Related Models | M-30TL-HWA (30A, L5-30R) |
