Middle Atlantic LL-DWR/SR-BP DWR/SR BACK PAN LL BKT
Middle Atlantic LL-DWR/SR-BP DWR/SR BACK PAN LL BKT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Middle Atlantic LL-DWR/SR-BP DWR/SR BACK PAN LL BKT
Product Overview

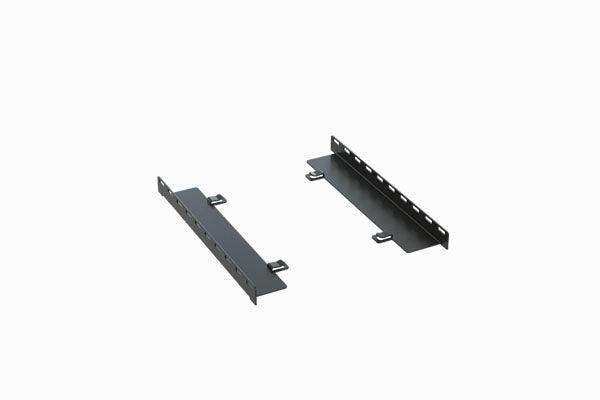

The Middle Atlantic LL-DWR/SR-BP is a Lever Lock back panel bracket kit for DWR and SR series wall rack enclosures. The kit includes a pair of brackets that mount into the existing cable tie-off bridge lances in the back pans of DWR and SR racks, enabling Lever Lock vertical accessory plates (LL-VP2110 or LL-VP1710, both sold separately) to be installed in the back panel area of the enclosure.
Product Description
The back panels of DWR and SR series wall rack enclosures have cable tie-off bridge lances but no rackrail, leaving that interior space without a direct way to mount accessories. The LL-DWR/SR-BP kit adds Lever Lock mounting capability to this area by providing two brackets that attach to the existing lance points in the back pan. The brackets can be rotated to accommodate either the LL-VP2110 or LL-VP1710 Lever Lock vertical plates. Once installed, these plates provide the universal hole pattern needed for attaching Lever Lock accessories including tie saddles, D-rings, and small device mounting brackets. This makes previously unused back panel real estate available for mounting small AV components, cable management hardware, or control system modules. The Lever Lock plates are sold separately.
Key Features
- Enables Lever Lock Mounting in Back Panel — Adds LL vertical plate capability to DWR/SR back pan area.
- Uses Existing Lance Points — Mounts into existing cable tie-off bridge lances without new holes.
- Rotatable Brackets — Adjustable to fit LL-VP2110 or LL-VP1710 plates.
- Pair of Brackets Included — Provides both mounting points needed for one plate.
- LL-VP Plates Sold Separately — LL-VP2110 and LL-VP1710 required and sold separately.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LL-DWR/SR-BP |
| Compatible Enclosures | DWR and SR series wall racks |
| Kit Contents | Pair of brackets |
| Compatible LL Plates | LL-VP2110 or LL-VP1710 (sold separately) |
| Mounting | Into existing cable tie-off bridge lances |
| Manufacturer | Middle Atlantic |
