LundHalsey Visionline 24/7 Command & Control Console Bridging Cabinet series

Product Overview

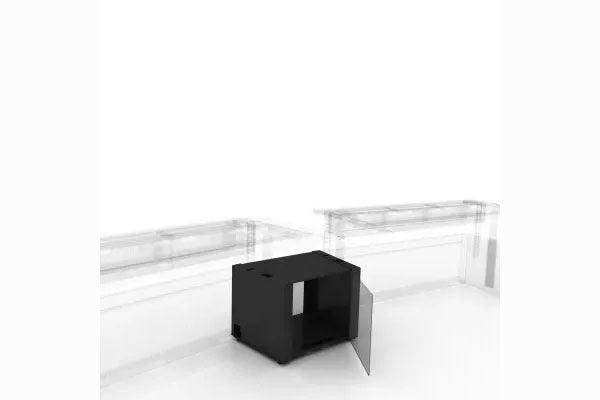

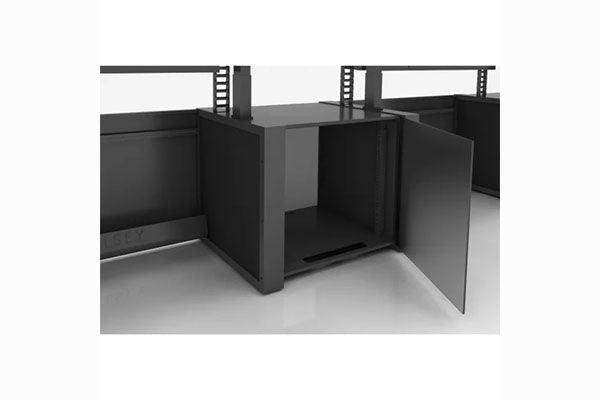

The LundHalsey Visionline Bridging Cabinet Series (LH-BCW15) provides the structural and aesthetic connection between Visionline 24/7 command and control consoles in multi-operator control room layouts, in a configuration optimized for installations where a wider bridging span is required. The LH-BCW15 is specified by AV system designers and facilities managers building NOC furniture rows, dispatch console configurations, and security operations center layouts where console footprint and inter-console spacing must be precisely matched to room dimensions and operator positioning requirements.

Product Description

Control room furniture layout is determined by a combination of operator count, room geometry, supervisor sightlines, and AV infrastructure routing. The LH-BCW15 Visionline Bridging Cabinet Series gives integrators a wider configuration option when connecting Visionline console units into continuous multi-operator rows, allowing the console run to be adapted to rooms where standard bridging cabinet widths do not achieve the required spacing between operator positions.

Like its counterpart the LH-BCWS, the LH-BCW15 is a native Visionline system component — it shares the console's high-gloss piano black end panel finish, LED accent lighting, and internal cable management channel architecture. All infrastructure routed between adjacent operator stations, including power, data, KVM, and audio signal cabling, passes through the bridging cabinet's internal channels, maintaining the organized cable routing that control room AV teams require for ongoing maintenance access. The LH-BCW15 is manufactured in the UK at LundHalsey's Aylesbury facility and is rated for 24/7 operations alongside the full Visionline console system. For standard-width bridging applications, the LH-BCWS is also available.

Key Features

• Wider Bridging Configuration — LH-BCW15 provides an alternate width span for Visionline installations where room geometry or operator spacing requires a wider inter-console gap.
• Native Visionline Integration — Factory-specified system component; no custom fabrication needed to integrate with adjacent console units.
• Matched Console Finish — High-gloss piano black end panel and LED accent lighting match the full Visionline console aesthetic for a unified, professional appearance.
• Internal Cable Management — Continues the Visionline cable routing architecture between operator positions for power, data, KVM, and signal infrastructure.
• 24/7 Operations Rating — Structural components specified for mission-critical, around-the-clock deployment environments.
• UK Manufactured — Produced at LundHalsey's Aylesbury, Buckinghamshire facility to the same quality and tolerances as the Visionline console series.

Typical Applications

• Government space
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: What distinguishes the LH-BCW15 from the LH-BCWS bridging cabinet?

A: Both are Visionline bridging cabinets that connect adjacent console units into multi-operator rows. The LH-BCW15 is a wider configuration, allowing integrators to achieve a greater inter-console spacing when room dimensions or operator positioning requirements call for it. The LH-BCWS is the standard-width variant. Contact Creation Networks for guidance on which configuration suits your project layout.

Q: How do I determine the correct bridging cabinet width for my Visionline installation?

A: The correct bridging width depends on your room geometry, the number of operator positions, console model widths, and any AV infrastructure routing requirements between stations. Creation Networks and LundHalsey's regional planning team can assist with layout drawings and component selection.

Q: Does the LH-BCW15 include cable management provisions?

A: Yes. The LH-BCW15 continues the internal cable management channel architecture of the Visionline system, routing power, data, KVM, and signal cabling between adjacent operator positions without exposed runs.

Q: How many LH-BCW15 units are required for a multi-console Visionline row?

A: One bridging cabinet is required between each pair of adjacent console units. A four-console row requires three bridging cabinets. Bridging cabinet type (LH-BCWS or LH-BCW15) is selected based on the required inter-console spacing for the specific installation.

Q: Is the LH-BCW15 compatible with height-adjustable Visionline console configurations?

A: Compatibility with height-adjustable Visionline variants should be confirmed with LundHalsey based on your specific console models and height adjustment specifications before finalizing the system design.

Q: Can the LH-BCW15 be added to an existing Visionline installation?

A: Contact LundHalsey or Creation Networks to confirm retrofit compatibility with your current Visionline console configuration. Bridging cabinets are typically specified as part of the initial installation plan.

Q: Is the LH-BCW15 available through Creation Networks for US-based projects?

A: Yes. Creation Networks is a commercial AV reseller offering LundHalsey Visionline components including the LH-BCW15. Contact our team for project pricing, lead times, and integration support.
