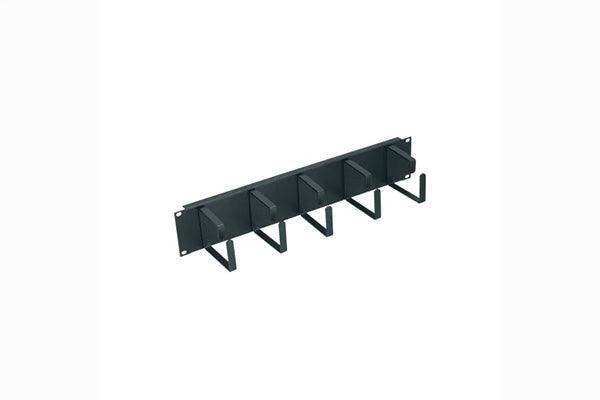

Middle Atlantic HCM-2D 2SP HORIZ CABLE MGR D-RIN

Product Overview

The Middle Atlantic HCM-2D 2-Space Horizontal D-Ring Cable Manager organizes patch cords and maintains proper cable bend radius in a 2-rack-space horizontal panel with a front-facing D-ring style opening. It is constructed from 16-gauge welded steel with a durable black powder coat finish and mounts in any standard 19-inch EIA rack. For best performance, the cable rings should not exceed 50% of their fill capacity.

Product Description

The HCM-2D Horizontal Cable Manager from Middle Atlantic Products is a 2-rack-space (2U) panel-style cable manager featuring a D-ring opening on the front face for routing patch cords and structured cabling within a 19-inch rack. Cable managers serve the critical function of keeping patch cables organized and preventing them from being pulled into tight bends that can damage conductors and degrade signal performance. The D-ring design on the HCM-2D presents a wide, rounded opening at the front of the panel, allowing cables to be quickly routed through without the need to thread them from the end. This makes adds, moves, and changes faster compared to ring-style managers with closed ends. The panel has no end rings, keeping cable access focused on the front opening. The 16-gauge welded steel construction provides a rigid frame that resists deformation under cable bundle weight. The black powder coat finish matches standard rack enclosure and panel finishes. Middle Atlantic recommends not exceeding 50% fill rate through the cable rings to maintain the required bend radius for all cables passing through the manager. The HCM-2D can also be mounted on a wall using appropriate fasteners, making it versatile for cable routing outside of rack installations.

Key Features

• 2U D-Ring Cable Manager — Front-facing D-ring opening provides fast, easy cable routing and re-routing.
• Maintains Bend Radius — Rounded D-ring geometry protects cables from sharp bends that degrade performance.
• No End Rings — Access from the front only; clean, uncluttered front-panel appearance.
• 16-Gauge Welded Steel — Rigid construction supports cable bundle weight without deformation.
• Black Powder Coat Finish — Durable finish matches standard rack and enclosure panels.
• Rack or Wall Mount — Installs in a standard 19" rack or on a wall with appropriate fasteners.
• 50% Fill Guideline — Rated for optimal performance at up to half-capacity fill through the cable rings.
