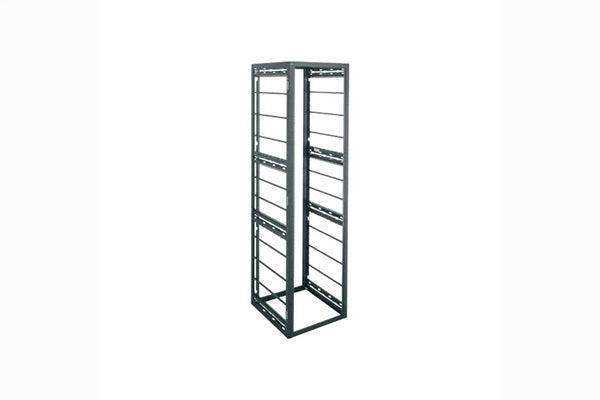

Middle Atlantic GRK-52-30HLRD – 52RU GRK Gangable Rack with H-Bars

Product Overview

The Middle Atlantic GRK-52-30HLRD is a 52 rack space welded gangable rack with 30 inches of depth, horizontal cable management H-bars, and a less-rear-door configuration for open rear access or a separately specified door. The GRK Series is built for narrow multi-bay equipment rows optimized for high-density video cable bundles, making it a standard choice for broadcast, production, and large commercial AV installations. With a 1,500 lb. weight capacity and UL-2416 listing, it carries full equipment loads in continuous ganged rows.

Product Description

The GRK Series is a versatile welded gangable rack engineered for installations where a narrow multi-bay footprint must still manage high-density video and signal cabling. The GRK-52-30HLRD provides 52 rack spaces of mounting height at 30 inches of depth, with numbered rackspace increments that simplify and speed equipment installation against the rack elevation drawing.

This configuration includes horizontal cable management bars for tie-and-slide lacing, giving installers defined support and tie-off points across the rear of the enclosure. The fully open top and bottom allow straight vertical cable runs into the rack, and finished edges at both openings improve appearance while preventing cable chafing on high-count bundles. Integrators can choose horizontal or vertical lacing strategies to match the cabling design.

Construction details support long service life in commercial deployment: a solid frame top and bottom strengthens the welded structure, grounding and bonding studs come standard top and bottom for code-compliant bonding, and the enclosure is finished in a durable black textured powder coat. The rack is UL-2416 listed (NWIN) and rated for a 1,500 lb. equipment load.

The LRD designation means this model ships less rear door, suited to racks that back up to a service aisle or that will receive a separately specified GRK door. The universal hinged GRK door family installs with left or right swing, front and back, with solid, vented, and cupboard-style beveled door options available. For door selection, multi-bay planning, or project pricing, contact Creation Networks or browse the Middle Atlantic collection.

Key Features

• 52 Rack Spaces at 30-Inch Depth — Tall, narrow-footprint capacity for high-density AV and broadcast equipment rooms.
• 1,500 lb. Weight Capacity — Welded construction with solid frame top and bottom carries full commercial equipment loads.
• Horizontal Cable Management H-Bars — Tie-and-slide lacing support keeps high-density video cable bundles organized and serviceable.
• Fully Open Top and Bottom — Straight vertical cable runs with finished edges that prevent cable chafing.
• Less Rear Door Configuration — Suits open rear-access layouts; universal hinged GRK doors install left or right swing, front and back.
• Numbered Rackspace Increments — Speeds equipment installation and keeps builds aligned to rack elevations.
• Grounding and Bonding Studs — Standard top and bottom for code-compliant system bonding.
• UL-2416 Listed (NWIN) — Safety listing for audio/video and information technology equipment racks.
• Durable Black Textured Powder Coat — Installation-ready finish for equipment room environments.

Typical Applications

• Broadcast studio and production facility equipment rows
• Government space AV and network equipment rooms
• Auditorium and house of worship production head-end racks
• Commercial meeting space and all-hands room AV cores
• Training room and conference room centralized rack rooms

Technical Specifications

Frequently Asked Questions

What does HLRD mean in this model number?

H indicates the rack includes horizontal cable management bars for tie-and-slide lacing, and LRD means it ships less rear door for open rear access or a separately specified GRK door.

What door options fit this rack?

The universal hinged GRK door family installs with left or right swing on the front or back, with solid, vented, and cupboard-style beveled options. Creation Networks can match the correct 52RU door to your thermal and security needs.

How much equipment weight can the GRK-52-30HLRD support?

The welded GRK structure is rated for a 1,500 lb. equipment load, with a solid frame top and bottom reinforcing the enclosure.

How does cabling enter the rack?

The top and bottom are fully open for straight vertical cable runs, and the openings have finished edges that prevent chafing on cable bundles entering from overhead pathways or raised floors.

Is this rack suitable for ganged multi-bay installation?

Yes. The GRK Series is a gangable platform designed for narrow multi-bay rows; racks of matching height and depth join side by side for continuous equipment bays.

Does the rack meet safety listing requirements for AV and IT equipment?

Yes. It is UL-2416 listed (NWIN) and includes standard grounding and bonding studs top and bottom for code-compliant bonding.

What warranty and support apply?

Middle Atlantic racks carry the manufacturer's warranty through Legrand AV. Creation Networks is an authorized dealer and supports integrators with configuration help and project quotes.
