Middle Atlantic FWD-CBS-2KVA-BGR38 – 2150VA Forward UPS, Cold Bypass, BGR 38"D

Product Overview

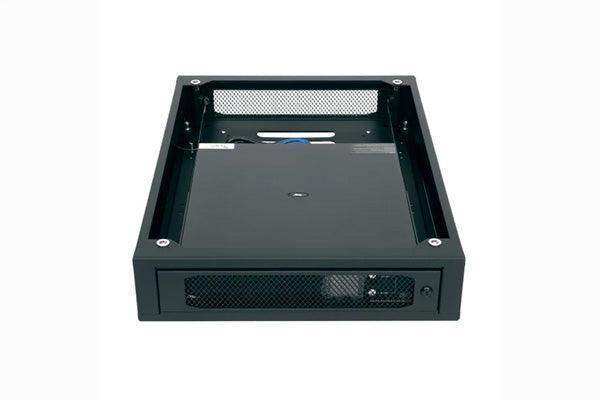

The Middle Atlantic FWD-CBS-2KVA-BGR38 is a 2150VA/1650W integrated UPS with cold-bypass switching, designed to mount inside Middle Atlantic BGR series rack enclosures with 38-inch depth. Part of the Forward Series, this unit provides critical battery backup and power protection for AV and IT equipment in BGR racks, with cold-bypass capability that allows safe UPS servicing without powering down connected rack equipment. It is the correct model for BGR 38-inch-deep rack systems and pairs directly with the BGR rack infrastructure for a fully integrated power protection solution.

Product Description

The FWD-CBS-2KVA-BGR38 is engineered for direct integration into Middle Atlantic BGR 38-inch-depth rack enclosures, eliminating the need for a standalone external UPS and simplifying power protection deployment in professional AV and IT rack builds. At 2150VA/1650W, it provides sufficient capacity for fully loaded AV racks containing amplifiers, processors, network switches, and control systems. The cold-bypass switch is a critical feature for commercial AV installations: it allows the UPS to be bypassed and removed for battery replacement or servicing without interrupting power to the equipment in the rack, which is essential for 24/7 operational environments where downtime is not acceptable. The unit delivers conditioned power output to protect connected equipment from voltage irregularities, line noise, and brief outages. Designed specifically for the BGR 38-inch rack footprint, the FWD-CBS-2KVA-BGR38 takes advantage of the BGR rack's depth to house the UPS internally without consuming additional rack unit space that would otherwise be required by a standalone unit. Integration with Middle Atlantic's BGR rack ecosystem means the UPS is supported by the rack's cable management and structural framework. This solution is appropriate for corporate boardrooms, command centers, broadcast facilities, and any environment where rack power reliability and serviceability without downtime are required.

Key Features

• 2150VA / 1650W Capacity — Supports full AV and IT rack loads in BGR 38-inch-depth enclosures.
• Cold-Bypass Switching (CBS) — Allows UPS servicing and battery replacement without powering down connected rack equipment.
• BGR 38-Inch Depth Integration — Engineered specifically to mount inside Middle Atlantic BGR 38-inch-deep rack enclosures.
• Internal Rack Mount Design — Mounts within the BGR rack footprint, preserving rack unit space for equipment.
• Conditioned Power Output — Protects equipment from voltage irregularities, line noise, and power outages.
• Forward Series Engineering — Purpose-built for professional AV rack power integration by Middle Atlantic.
• Serviceability Without Downtime — Cold bypass enables maintenance in live, 24/7 operational environments.

Typical Applications

• Corporate boardroom BGR rack power protection
• Command and control center AV infrastructure
• Broadcast and production BGR rack systems
• 24/7 operational environments requiring maintenance without downtime
• High-density AV and IT racks in BGR 38-inch enclosures
• Government and institutional AV rack installations

Technical Specifications

Frequently Asked Questions

What is cold-bypass switching and why does it matter?

Cold-bypass switching allows the UPS to be switched out of the circuit so it can be serviced or have its battery replaced while the connected equipment continues to receive unswitched mains power. This is critical in environments where rack equipment cannot be powered down for maintenance.

What is the difference between FWD-CBS-2KVA-BGR38 and FWD-CBS-2KVA-BGR32?

The BGR38 model is designed for BGR rack enclosures with 38-inch depth. The BGR32 model fits BGR enclosures with 32-inch depth. The choice depends on the depth of the BGR rack being used. Both provide 2150VA/1650W capacity.

Does this UPS mount inside the BGR rack?

Yes. The FWD-CBS-2KVA-BGR38 is specifically designed to integrate within the interior of BGR 38-inch-depth rack enclosures, using the rack's structural depth rather than consuming rack unit space.

What rack systems is this compatible with?

This unit is designed for Middle Atlantic BGR series rack enclosures with 38-inch depth. It is not intended for use in non-BGR racks or racks of a different depth.

Is this appropriate for 24/7 operational environments?

Yes. The cold-bypass capability allows battery maintenance and UPS servicing during operation, making it well-suited for continuously running environments such as command centers and broadcast facilities.
