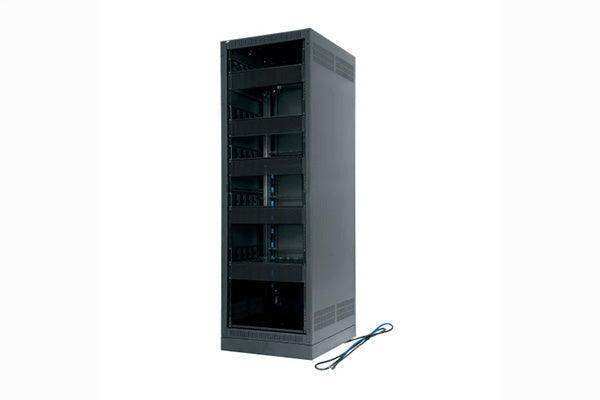

Middle Atlantic ERK-2725-CONFIG – 27RU x 25D Configured AV Equipment Rack

Product Overview

The Middle Atlantic ERK-2725-CONFIG is a pre-configured 27-space, 25-inch deep ERK Series floor-standing equipment rack that ships with the accessories most commercial AV installations need: shelving, vent panels, a power strip, cable lacing hardware, and a caster base. Built as an economical standalone enclosure with solid sides, it can also be ganged with additional ERK racks to create partitioned multi-bay installations for thermal management control or future growth. Seismic certification protects mounted components, making this configured rack a practical head-end for conference room systems, equipment closets, and rack room deployments.

Product Description

Specifying a rack as separate line items — enclosure, shelves, power, lacer bars, casters — adds quoting time to every project. The ERK-2725-CONFIG consolidates that bill of materials into one SKU built around the proven ERK Series enclosure. The fully welded construction provides the strength and squareness needed for heavy AV component loads, while solid enclosure sides with top and bottom venting support passive airflow through the bay.

Inside, standard front and rear 10-32 threaded rackrail with numbered spaces speeds layout and keeps equipment positioning consistent across multi-rack jobs. Convenient lacing points and slotted rail brackets give installers tie-off locations for clean cable management, supplemented by the included LACE-OP lacer strip and five offset lacer bars. A standard configurable rear door closes off the back of the enclosure while preserving service access.

The configuration package covers initial loading as well: four vented shelves and one heavy-duty four-point shelf handle non-rackmount devices and heavier components, four 2-space vent panels assist airflow management across the elevation, and a 15A, 10-outlet corded power strip distributes power inside the bay. The fine floor caster base lets crews load the rack in the shop and roll it into position on site. For multi-bay head ends, gang additional ERK enclosures or browse the full line of Middle Atlantic racks and accessories at Creation Networks.

Key Features

• 27RU x 25-Inch Deep Capacity — Houses a full commercial AV equipment stack with depth for modern processors and amplifiers.
• Fully Welded Construction — One-piece welded frame delivers strength and rigidity for heavy component loads.
• Seismic Certified — Certified construction protects installed components in code-driven and government projects.
• Gangable Solid-Side Design — Sides include top and bottom venting; bays gang together for partitioned multi-rack installations and future growth.
• Numbered 10-32 Threaded Rackrail — Standard front and rear rail with numbered spaces simplifies layout and documentation.
• Cable Management Included — Lacing points, slotted rail brackets, a LACE-OP lacer strip, and five offset lacer bars support clean dressing.
• Shelving Package Included — Four vented shelves plus one heavy-duty four-point shelf cover non-rackmount and heavy devices.
• Power and Ventilation Included — A 15A, 10-outlet corded power strip and four 2-space vent panels complete the initial build-out.
• Fine Floor Caster Base — Roll the loaded rack into position, ideal for shop-built systems delivered to site.
• Configurable Rear Door — Standard rear door closes the enclosure while preserving rear service access.

Typical Applications

• Boardrooms and conference room equipment closets
• House of worship AV head ends
• Government spaces requiring seismic-certified equipment racks
• Commercial meeting spaces and multi-purpose rooms
• Training rooms and all-hands rooms
• Broadcast studios and auditorium rack rooms

Technical Specifications

Frequently Asked Questions

What equipment is the ERK-2725-CONFIG compatible with?
Any standard 19-inch rackmount equipment up to 27RU total, with 25 inches of depth for deeper components such as amplifiers and video processors. The included shelves handle non-rackmount devices.

Can this rack be combined with other racks in one installation?
Yes. ERK Series enclosures are designed to gang side by side, creating partitioned multi-bay installations that support thermal management control and future expansion.

Is the rack suitable for seismic-rated projects?
Yes. The ERK Series is seismic certified, which supports specification in government, institutional, and code-driven commercial deployments.

What is included for cable management?
The configuration includes a LACE-OP lacer strip and five offset lacer bars, and the enclosure itself provides lacing points and slotted rail brackets for tie-offs throughout the bay.

Can the rack be loaded before placement?
Yes. The included fine floor caster base allows a shop-built, fully loaded rack to be rolled into its final position on site.

Does it include power distribution?
Yes. A 15A, 10-outlet corded power strip is included for in-rack power distribution; rackmount UPS and power conditioning units can be added as needed.

What warranty and support apply?
The rack is covered by Middle Atlantic's manufacturer warranty. Creation Networks is an authorized dealer and can assist with rack elevation planning, accessories, and multi-bay quotes.
