Middle Atlantic DWR-FK – CRM Fan Kit for DWR Racks
Product Overview

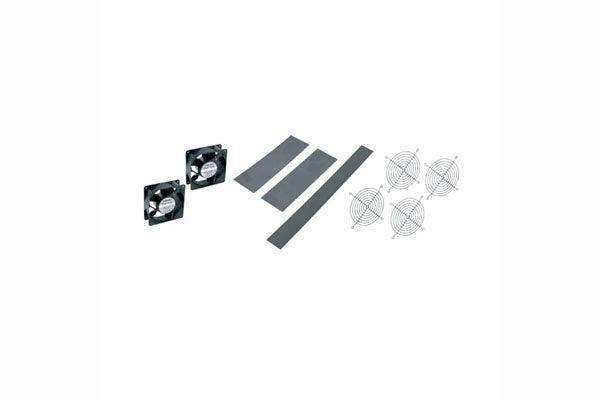

The Middle Atlantic DWR-FK is a fan kit that adds active cooling to DWR Series sectional wall racks. Each kit includes two 4-1/2 inch fans, four fan guards, and the vent blockers needed to optimize airflow through the enclosure. The fans mount in knockouts provided on the rack, so installation requires no field fabrication. Four versions are available to match DWR rack depths from 17 to 32 inches.
Product Description
Wall-mounted equipment racks concentrate heat in a confined enclosure, and passive venting alone often cannot keep amplifiers, network switches, and processors within their operating temperature range. The Middle Atlantic DWR-FK fan kit converts a passive DWR rack into an actively cooled enclosure using two 4-1/2 inch fans that mount directly in the rack's provided knockouts. Four fan guards protect both sides of each fan, and the included vent blockers let the installer close off unused openings so air moves through the equipment rather than short-circuiting around it. Directed airflow of this kind is a basic requirement in commercial AV integration, where wall racks in conference rooms, classrooms, and retail spaces frequently run loaded with heat-producing electronics. Because the kit uses factory knockouts, thermal management can be added at initial installation or retrofitted later as equipment loads grow. The kit is offered in four versions — DWR-FK17, DWR-FK22, DWR-FK26, and DWR-FK32 — each matched to the corresponding DWR rack depth. Selecting the size that matches the rack depth keeps the fan placement aligned with the enclosure airflow design. Browse DWR racks and related thermal management accessories in the Middle Atlantic collection at Creation Networks.
Key Features
- Two 4-1/2 Inch Fans — A pair of fans moves air through the DWR enclosure to cool mounted equipment.
- Knockout Mounting — Fans install in knockouts provided on the rack, with no cutting or drilling on site.
- Four Fan Guards Included — Guards protect fan blades and wiring on both faces of each fan.
- Vent Blockers for Airflow Control — Included blockers close unused vents to direct air through equipment and optimize cooling.
- Four Depth-Matched Sizes — Versions for 17, 22, 26, and 32 inch deep DWR racks cover the full series.
- Retrofit Friendly — Add active cooling to an existing DWR installation as heat loads increase.
Technical Specifications
| Model | DWR-FK Series |
|---|---|
| Brand | Middle Atlantic Products (Legrand AV) |
| Product Type | Rack fan kit (thermal management) |
| Fans | (2) 4-1/2 inch fans |
| Included Accessories | (4) fan guards, vent blockers |
| Mounting | Installs in knockouts provided on DWR racks |
| Compatibility | Middle Atlantic DWR Series racks |
Available Versions
| Model | Fits DWR Rack Depth |
|---|---|
| DWR-FK17 | 17 inch deep |
| DWR-FK22 | 22 inch deep |
| DWR-FK26 | 26 inch deep |
| DWR-FK32 | 32 inch deep |
