Middle Atlantic DWR-35-22 35SP/22D WALLRACK BLACK

Product Overview

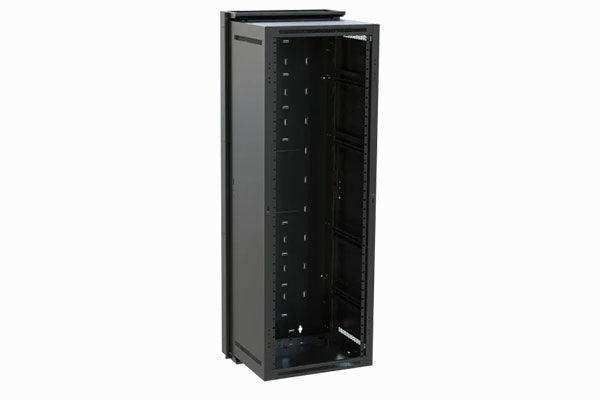

The Middle Atlantic DWR-35-22 is a 35-space, 22-inch-deep wall-mounted rack in black finish. It provides greater equipment capacity than shorter wall rack configurations while maintaining a shallower depth suited for installations where wall projection must be minimized. The open-back design allows direct cable entry from conduit or surface raceway. Available at creationnetworks.net.

Product Description

The DWR-35-22 fills the need for a larger-capacity wall rack that does not require the depth of a floor-standing unit. Thirty-five rack spaces provide room for a complete small-to-medium AV or IT system — including amplifiers, DSPs, video distribution, patch panels, and network switching — in a wall-mount format. The 22-inch depth is shallower than many wall racks in this space count, making the DWR-35-22 appropriate for locations where the finished wall projection of the rack must remain minimal, such as corridor equipment closets, shallow utility rooms, and structured wiring enclosure upgrades. The open-back construction enables cable routing directly through the mounting wall without additional conduit entry fittings. Threaded rack rails eliminate cage nut requirements for the majority of AV and IT rack equipment. Black finish integrates with standard equipment room aesthetics. The frame is engineered for attachment to structural studs or wall blocking; wall loading capacity must be verified prior to installation. Front door accessories are available separately for installations requiring panel protection. The DWR-35-22 is commonly specified by integrators in mid-size conference room AV builds, school AV closets, and retail system deployments where the wall rack must handle a full equipment complement without the footprint of a floor-standing cabinet.

Key Features

• 35 rack spaces — High capacity for a wall-mount format; accommodates complete small-to-medium AV systems.
• 22-inch depth — Shallower projection from the wall compared to standard 24"+ wall racks.
• Wall-mount design — Eliminates floor rack footprint for constrained equipment room layouts.
• Open-back construction — Direct cable access from conduit or raceway through the mounting wall.
• Threaded rails — Standard rack equipment mounts without cage nuts.
• Black finish — Standard equipment room aesthetics.

Typical Applications

• Mid-size conference room and training room AV system racks
• School and university AV equipment closets with space constraints
• Retail AV system deployments requiring full system capacity in a wall-mount format
• Corridor and shallow utility room equipment closets
• Structured wiring enclosure upgrades requiring expanded rack space

Technical Specifications

Frequently Asked Questions

Q: Is a door included with the DWR-35-22?

A: No. The rack ships without a door. Compatible front door accessories are available separately.

Q: How does the 22-inch depth compare to other DWR models?

A: The DWR-35-22 is a shallower configuration than the DWR-24-26 (26" depth). The 22" depth is suitable for AV electronics and shallow IT gear but may not fit extended-depth servers or UPS systems without confirming equipment dimensions first.

Q: What wall construction is required for the DWR-35-22?

A: The rack must be attached to structural studs, blocking, or a concrete/CMU wall with appropriate anchors. A fully loaded 35SP wall rack is significant dead load; a structural assessment is recommended before installation.
