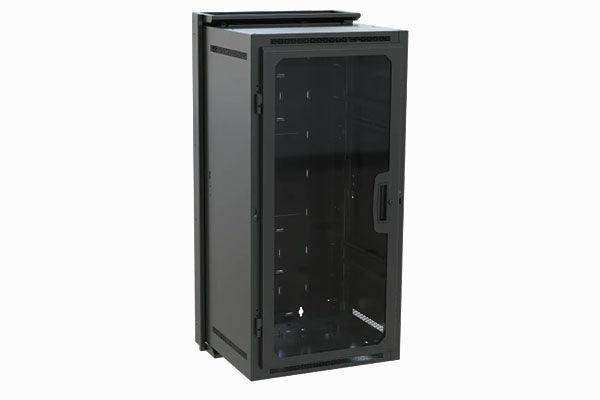

Middle Atlantic DWR-24-22PD – 24RU 22" Deep Wall Rack, Plexi Door

Product Overview

The Middle Atlantic DWR-24-22PD is a 24-space, 22-inch deep DWR Series pivoting wall rack with a factory-installed plexi door, built for commercial AV installations where floor space is unavailable or impractical. The pivoting center section swings open for full rear access to equipment and cabling, making wall-mounted head ends genuinely serviceable after installation. Forward and Lever Lock compatibility brings tool-free accessory mounting to the platform, helping integrators complete rack installations up to five times faster.

Product Description

Wall racks solve a recurring problem in commercial AV integration: equipment that needs secure, ventilated housing in rooms with no space for a floor-standing enclosure. The DWR-24-22PD provides 24 rack units of capacity at 22 inches deep, enough for switchers, amplifiers, network hardware, and control processors serving a meeting space or classroom wing. The rack is equipped with Forward rackrail, enabling the use of Forward blank panels, vent panels, and horizontal cable management; rear rackrail is available as an option (FWD-DWR-RRxx). It also accepts the patented Lever Lock tool-free, hardware-free internal device and cable management accessories in the center section and on the backpan (with the LL-DWR/SR-BP adapter), reducing screw-by-screw mounting labor in the field. Welded steel construction delivers structural strength, and seismic certification is available when used with the DWRSR-ZL latch. The center section's rear channel accommodates optional slim power, including the 10-outlet Select Vertical PDU with RackLink, to preserve rack spaces for revenue equipment. The Tool-Free Quick-Mount system lets one technician mount the center section to the backpan on the jobsite, and an optional minimum-clearance latch permits side-by-side or interior corner mounting in tight rooms. The reversible center section swing can be both key-locked and padlocked, and it is keyed differently from the optional front door for layered security. The enclosure is designed for active or passive cooling, and the included plexi door provides equipment visibility with physical protection. Find companion panels, power, and accessories in our Middle Atlantic collection.

Key Features

• 24RU Capacity, 22" Depth — Houses a full commercial AV equipment stack in a wall-mounted footprint.
• Pivoting Center Section — Swings open for complete rear access to equipment and cable terminations after installation.
• Factory-Installed Plexi Door — Protects equipment while keeping indicators and displays visible; ships installed to save site labor.
• Forward Rackrail — Supports Forward blank panels, vent panels, and horizontal cable management; optional rear rackrail (FWD-DWR-RRxx).
• Lever Lock Compatibility — Accepts tool-free, hardware-free device and cable management accessories in the center section and backpan (with LL-DWR/SR-BP).
• Tool-Free Quick-Mount System — One person can mount the center section to the backpan on the jobsite.
• Welded Steel Construction — Strong frame with seismic certification when used with the DWRSR-ZL latch.
• Slim Power Channel — Center section rear channel accepts space-saving vertical PDUs, including the 10-outlet Select Vertical PDU with RackLink.
• Layered Security — Reversible center section swing can be key-locked and padlocked, keyed differently from the optional front door.
• Flexible Mounting and Cooling — Optional minimum-clearance latch enables side-by-side or corner mounting; designed for active or passive cooling.

Typical Applications

• Conference room and boardroom equipment head ends
• Huddle room and commercial meeting space AV closets
• Training room and multi-purpose room equipment walls
• House of worship AV and control equipment
• Government space wall-mounted network and AV hardware
• Auditorium and all-hands room support spaces

Technical Specifications

Frequently Asked Questions

What makes a pivoting wall rack better for service access?
The center section swings away from the backpan, giving technicians full rear access to equipment and cable terminations without removing gear from the rack.

Does the DWR-24-22PD include rear rackrail?
Rear rackrail is optional and ordered separately as FWD-DWR-RRxx. The included Forward front rackrail supports Forward blank panels, vent panels, and horizontal cable management.

Can I use Lever Lock accessories with this rack?
Yes. The center section accepts Lever Lock tool-free accessories directly, and the backpan accepts them with the LL-DWR/SR-BP adapter.

Is this wall rack suitable for seismic-rated installations?
Yes. The DWR series achieves seismic certification when used with the DWRSR-ZL latch. Confirm documentation requirements with your project engineer.

How is power handled inside the rack?
The center section's rear channel accommodates optional slim power products, including the 10-outlet Select Vertical PDU with RackLink, preserving rack spaces for equipment.

Can one installer mount this rack on site?
Yes. The Tool-Free Quick-Mount system allows one person to mount the center section to the backpan, and the backpan installs to the wall first for easier handling.

How secure is the enclosure in public spaces?
The center section can be both key-locked and padlocked, and it is keyed differently from the optional front door for an added layer of security.
