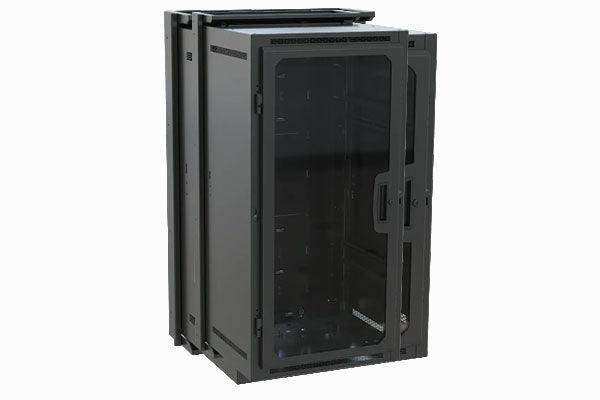

Middle Atlantic DWR-24-17PD – 24U Pivoting Wall Rack, Plexi Door

Product Overview

The Middle Atlantic DWR-24-17PD is a 24-space, 17-inch deep pivoting wall rack built for commercial AV installation where floor space is limited and equipment still needs full rear access. The pivoting center section swings open so integrators can service cabling and connections without pulling gear off the rail. With a factory-installed plexi door, it suits AV, IT, and security systems in both secured and visible areas of a building. It is a strong fit for conference room head-end equipment, network closets, and distributed commercial deployment across multiple rooms.

Product Description

The DWR Series pivoting wall rack is now Forward and Lever Lock compatible, providing maximum mounting capacity on and off the rail along with a suite of tool-free accessories that Middle Atlantic rates as making rack installations five times faster. The DWR-24-17PD provides 24 rack units of capacity at 17 inches of usable depth, sized for switchers, control processors, network switches, and audio DSPs common in commercial AV integration. Forward rackrail comes standard, accepting Forward blank panels, vent panels, and horizontal cable management; rear rackrail is available as an option (FWD-DWR-RR series). The patented Lever Lock system adds tool-free, hardware-free mounting of internal devices and cable management in the center section, and in the backpan when paired with the LL-DWR/SR-BP accessory. Welded steel construction carries seismic certification when used with the DWRSR-ZL latch, supporting installation in jurisdictions with seismic code requirements. The Tool-Free Quick-Mount system lets one technician hang the center section on the backpan at the jobsite, cutting labor on wall rack installation. The center section swing is reversible and can be both key-locked and padlocked, and it is keyed differently from the optional front door for layered security. A rear channel in the center section accommodates optional slim power, including a 10-outlet Select Vertical PDU with RackLink, to preserve rack space. The enclosure is designed for active or passive cooling to support all system types. Browse companion hardware in our Middle Atlantic collection.

Key Features

• 24RU x 17" Deep Capacity — Houses a full commercial AV or network equipment stack in a wall-mounted footprint.
• Pivoting Center Section — Swings open for full rear access to cabling and connections during service.
• Forward Rackrail Standard — Accepts Forward blank panels, vent panels, and horizontal cable management; optional rear rail available.
• Lever Lock Compatible — Tool-free, hardware-free mounting of devices and cable management in the center section and backpan (with LL-DWR/SR-BP).
• Factory-Installed Plexi Door — Protects equipment while keeping status indicators visible.
• Welded Steel with Seismic Certification — Certified when installed with the DWRSR-ZL latch for code-driven projects.
• Tool-Free Quick-Mount System — One-person mounting of the center section to the backpan on the jobsite.
• Dual Locking Security — Reversible swing with key lock and padlock provisions, keyed differently from the optional front door.
• Slim Power Channel — Rear channel accepts optional vertical PDUs, including a 10-outlet Select Vertical PDU with RackLink.
• Cooling Flexibility — Designed for active or passive cooling to support all system loads.

Typical Applications

• Conference rooms and boardrooms with wall-mounted head-end equipment
• Huddle rooms and commercial meeting spaces
• Training rooms and multi-purpose rooms
• Houses of worship with equipment in visible or back-of-house locations
• Government spaces requiring lockable, seismic-certified enclosures
• All-hands rooms with distributed AV and network gear

Technical Specifications

Frequently Asked Questions

What equipment fits in the DWR-24-17PD?

With 24 rack spaces at 17 inches of depth, it handles typical commercial AV head-end gear such as switchers, control processors, audio DSPs, network switches, and shallow amplifiers. Verify the chassis depth of each device against the 17-inch usable depth before specifying.

Can one technician install this wall rack?

Yes. The Tool-Free Quick-Mount system is designed so a single installer can mount the center section to the backpan on the jobsite after the backpan is secured to the wall structure.

Is the DWR-24-17PD seismic certified?

It carries seismic certification when installed with the optional DWRSR-ZL latch, which also enables side-by-side or interior-corner mounting with minimum clearance.

Does it work with Lever Lock accessories?

Yes. The center section accepts Lever Lock tool-free device and cable management accessories, and the backpan accepts them when fitted with the LL-DWR/SR-BP accessory.

How is ventilation handled?

The enclosure is designed for either active or passive cooling, so you can match thermal management to the heat load of the installed system.

Can I add rear rackrail?

Yes. Rear rackrail is optional and ordered separately in the FWD-DWR-RR series sized to match the rack height.

What warranty and support apply?

The DWR-24-17PD is covered by Middle Atlantic's manufacturer warranty as an authorized-channel purchase, and Creation Networks provides pre- and post-sale commercial AV integration support, including help selecting doors, latches, and power accessories.
