Middle Atlantic CSA Chassis Brackets

Product Overview

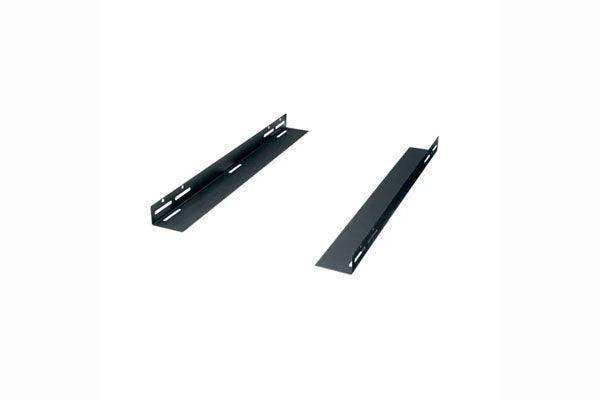

The Middle Atlantic CSA chassis support brackets provide a stable mounting platform for heavy equipment inside MRK, VRK, VMRK, and WMRK rack enclosures equipped with Z-rail or Z-rail adapters. Rather than relying solely on rack screws to support the weight of heavy amplifiers, power conditioners, or processors, these brackets distribute the load to the Z-rail and rack frame. The CSA series is also ideal for equipment that requires frequent swaps, as it allows gear to rest on the brackets without being screwed in, enabling fast removal and replacement. Sold in pairs, the CSA brackets are available in depths from 18 to 26 inches in standard and heavy-duty configurations.

Product Description

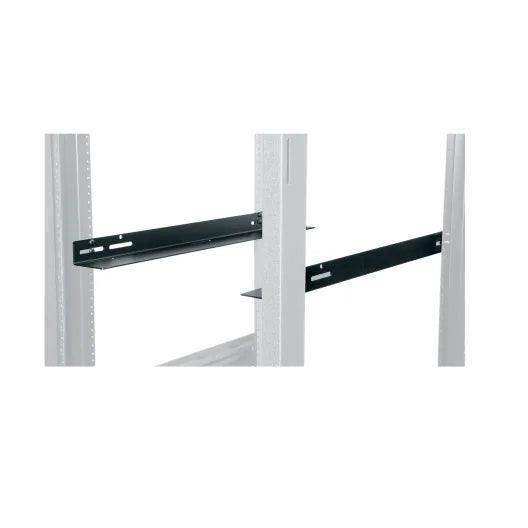

Heavy rack-mount equipment — particularly large power amplifiers, UPS systems, and transformer-based power conditioners — can stress rack screw threads and front panel mounting points when supported only by rack ears. The CSA chassis support brackets address this by providing a horizontal shelf surface attached to the Z-rail inside the enclosure, allowing the chassis to rest on the brackets while rack screws provide front panel retention. This is especially useful in installations where equipment is regularly removed and reinstalled, as it eliminates the repeated torque stress on rack ear threads. The brackets must be attached to Z-rail or a Z-rail adapter and are not compatible with standard L-shaped rackrail without hardware modifications. Available in depths of 18, 20, 22, 24, and 26 inches, with both standard and heavy-duty variants for each depth. Compatible racks include MRK, VRK, VMRK, and WMRK series only. Sold in pairs for a complete left/right chassis support solution.

Key Features

• Heavy Equipment Support — Distributes chassis weight to the Z-rail rather than relying solely on rack screws and front panel ears.
• Tool-Free Equipment Swaps — Equipment can be placed and removed without rack screws, enabling fast hot-swap maintenance procedures.
• Z-Rail Attachment Required — Must be used with Middle Atlantic Z-rail or Z-rail adapter; not compatible with standard L-shaped rackrail without modifications.
• Multiple Depth Options — Available in 18, 20, 22, 24, and 26-inch depths to match various equipment chassis lengths.
• Standard and Heavy-Duty Variants — Heavy-duty (H) versions available for maximum load capacity applications.
• Compatible Rack Series — Works with MRK, VRK, VMRK, and WMRK Middle Atlantic rack enclosures.
• Sold in Pairs — Both left and right brackets included for a complete mounting solution.

Technical Specifications
