Middle Atlantic CLH-SD8 – Cable Ladder Side Drop with Spools

Product Overview

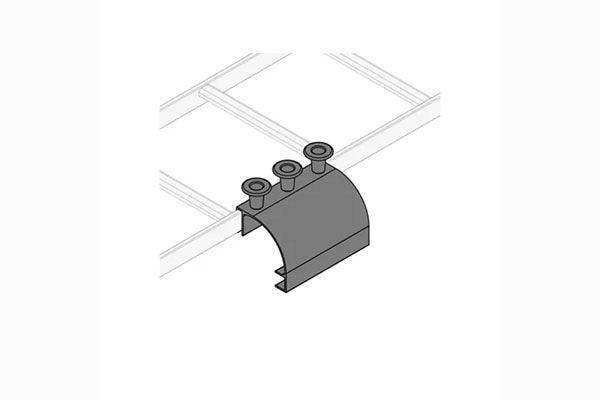

The Middle Atlantic CLH-SD8 is an 8-inch-wide cable ladder side drop with spools that transitions cabling cleanly from overhead ladder runs down to racks and wall fields. The aluminum drop carries a black powder coat finish, and the black plastic spools guide cables through the transition while protecting bend radius. It is compatible with most popular cable ladder brands and accessories and works on both new and existing installations; a 4-piece pack (CLH-SD8-4) is available for larger projects.

Product Description

The vertical transition is where overhead cable management most often goes wrong: cables leaving a ladder run can sag, kink, or rest on sharp edges. The CLH-SD8 side drop solves this by giving structured cabling and AV signal lines a defined, spool-guided path off the side of the ladder. The plastic spools maintain proper bend radius through the drop, which matters for category cable and other bend-sensitive media feeding equipment racks in commercial installations.

The drop itself is aluminum with a black powder coat finish, keeping weight low on the ladder while matching the appearance of Middle Atlantic runway and rack systems. Because it is compatible with most popular cable ladder brands and accessories, integrators can specify it on mixed-vendor pathway designs without compatibility concerns, and because it works on new and existing installations, it is just as useful for adding a drop point to a live equipment room as for new construction. Order the single CLH-SD8 for an individual drop location or the CLH-SD8-4 four-piece pack when outfitting multiple racks along a ladder run. Complete the pathway with ladder, supports, and accessories from our Middle Atlantic collection.

Key Features

• Bend Radius Protection — Spool-guided drop maintains proper cable bend radius from ladder to rack or wall field.
• Aluminum Construction — Lightweight aluminum drop with black powder coat finish keeps added ladder load low.
• Black Plastic Spools — Smooth spools route and separate cables through the vertical transition.
• Broad Ladder Compatibility — Works with most popular cable ladder brands and accessories for flexible specification.
• New and Retrofit Installation — Installs on both new construction and existing cable ladder runs.
• 4-Piece Pack Option — CLH-SD8-4 supplies four drops for multi-rack rows and larger commercial deployments.

Typical Applications

• Broadcast studio rack rooms with overhead ladder feeding equipment rows
• Government space telecom and AV head-end rooms
• House of worship equipment closets and amp rooms
• Auditorium control rooms with structured cabling pathways
• Commercial meeting space IT/AV equipment rooms

Technical Specifications

Frequently Asked Questions

What does a cable ladder side drop do?
It provides a controlled vertical transition for cables leaving the side of an overhead ladder run, guiding them down to racks or wall termination fields while the spools protect bend radius.

Is the CLH-SD8 compatible with non-Middle Atlantic cable ladder?
Yes. Middle Atlantic designed it to be compatible with most popular cable ladder brands and accessories, so it fits mixed-vendor pathway systems.

Can I install it on an existing ladder run?
Yes. The CLH-SD8 works on both new and existing installations, making it practical to add drop points to an operating equipment room as cabling needs grow.

Why does bend radius protection matter for AV integration?
Category cable, and other bend-sensitive media can degrade in performance if kinked or bent too tightly. The spool-guided drop keeps cables within a safe curve as they leave the ladder.

What is the CLH-SD8-4?
It is a 4-piece pack of the same 8-inch side drop, sized for projects that need drop points at multiple racks along a ladder run.

Is the CLH-SD8 covered by a manufacturer warranty?
Yes, it is backed by Middle Atlantic's manufacturer warranty. Contact Creation Networks for current warranty terms and documentation.

Can Creation Networks help design the full cable pathway?
Yes. We support integrators and facilities teams with the complete Middle Atlantic cable management line, including ladder, supports, drops, spools, and rack accessories.
