Middle Atlantic CLH-ED – Cable Ladder End Drop with Spools

Product Overview

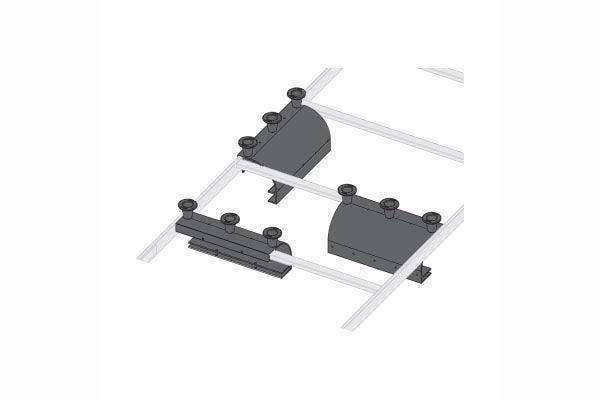

The Middle Atlantic CLH-ED cable ladder end drop transitions cabling from overhead ladder runs down to racks and enclosures while protecting cable bend radius at the drop point. Built from aluminum with a black powder coat finish and fitted with black plastic spools, it guides bundles smoothly off the end of a cable ladder without kinking or stress. The series is offered in 5, 8, 11, 17, and 23 inch widths to match common ladder sizes, including a 4-piece pack of the 11-inch model for larger commercial deployments. It is a straightforward upgrade for both new construction and existing rack room installations.

Product Description

Maintaining proper bend radius is one of the most overlooked details in structured cabling and AV rack integration, and it directly affects signal performance and long-term cable reliability. The CLH-ED end drop addresses this at the most vulnerable point in an overhead pathway: the vertical transition where cables leave the ladder and descend to equipment racks. Smooth plastic spools distribute the bundle across a curved path so category cable, fiber, and AV interconnects are never forced over a sharp edge.

The drop itself is fabricated from aluminum, keeping it light enough for retrofit work while standing up to fully loaded cable bundles. A black powder coat finish matches Middle Atlantic racks and cable ladder components for a consistent appearance in equipment rooms and head ends. Because the design is compatible with most popular ladder brands and accessories, integrators can specify it on mixed-vendor pathways without adapters. Installation works on both new and existing ladder runs, so it can be added during initial commercial AV installation or as part of a cable management cleanup on a live system. Choose the width that matches your ladder: CLH-ED5 (5 in.), CLH-ED8 (8 in.), CLH-ED11 (11 in., single or 4-piece CLH-ED11-4), CLH-ED17 (17 in.), or CLH-ED23 (23 in.). Pair it with racks and accessories from our Middle Atlantic collection to complete the pathway.

Key Features

• Bend Radius Protection — Plastic spools guide cables off the ladder end in a controlled curve, preventing kinks and signal-degrading stress.
• Aluminum Construction — Lightweight aluminum body with a durable black powder coat finish suits long service in equipment rooms.
• Five Width Options — Available in 5, 8, 11, 17, and 23 inch widths to match standard cable ladder sizes.
• Multi-Pack Option — The CLH-ED11-4 supplies four 11-inch end drops for multi-rack and campus-scale deployments.
• Broad Compatibility — Works with most popular cable ladder brands and accessories, not just Middle Atlantic runway.
• Retrofit Friendly — Installs on both new and existing ladder installations without rebuilding the pathway.

Typical Applications

• Broadcast studio equipment rooms with overhead cable runway feeding production racks
• Government spaces where structured pathways and inspection-ready cable management are required
• House of worship AV head ends transitioning ladder runs to amplifier and DSP racks
• Auditorium control and rack rooms supporting performance AV systems
• Commercial meeting space MDF/IDF rooms serving conference and boardroom AV

Technical Specifications

Frequently Asked Questions

Will the CLH-ED work with non-Middle Atlantic cable ladder?
Yes. The end drop is designed to be compatible with most popular ladder brands and accessories, so it can be specified on mixed-vendor overhead pathways.

Which width should I order?
Match the end drop to the width of your cable ladder. The series covers 5, 8, 11, 17, and 23 inch runway, and the 11-inch model is also offered as a 4-piece pack (CLH-ED11-4).

Can I add this to a ladder run that is already carrying cable?
Yes. The CLH-ED installs on both new and existing installations, making it practical for retrofits and cable management cleanups on live systems.

Why does bend radius protection matter for AV integration?
Category cable, fiber, and AV interconnects lose performance when bent past their rated radius. The spooled drop maintains a controlled curve at the ladder-to-rack transition, protecting signal integrity.

Is the finish compatible with Middle Atlantic racks?
Yes. The black powder coat finish matches Middle Atlantic racks and cable ladder components for a uniform equipment room appearance.

What warranty and support apply?
The CLH-ED is covered by Middle Atlantic's manufacturer warranty, and Creation Networks provides pre-sale specification help and post-sale support for commercial deployments.
