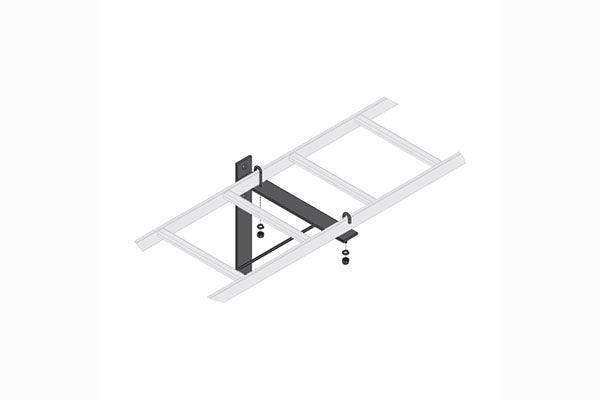

Middle Atlantic CLB-TSB – Triangle Wall Support Bracket for Cable Ladder

Product Overview

The Middle Atlantic CLB-TSB triangle wall support bracket provides wall-mounted support for cable ladder runs in equipment rooms, head-end closets, and rack rooms. Built from steel with a black zinc finish, it anchors overhead cable runway to the wall in both new construction and retrofit installations. The bracket family is available in 12-inch, 18-inch, and 24-inch widths to match common cable ladder sizes, including a 6-piece pack of the 12-inch model for larger structured cabling installations.

Product Description

Cable ladder is only as reliable as the hardware that supports it, and the CLB-TSB triangle wall support bracket gives integrators a straightforward way to carry ladder runs along walls without depending solely on ceiling attachment. Its triangulated steel design transfers the load of populated cable ladder directly to the wall structure, which simplifies cable management above equipment racks and along corridor pathways. The black zinc finish resists corrosion and blends with rack-room environments where Middle Atlantic enclosures and cable runway are already standard.

Compatibility is a key strength of this bracket family: it works with most popular cable ladder brands and accessories, so it can be specified for mixed-vendor pathway systems as easily as for all-Middle Atlantic deployments. Because the bracket works on both new and existing installations, it is equally useful when designing a commercial AV integration from scratch or when adding capacity to an operating equipment room. Choose the 12-inch CLB-TSB for standard runway, the CLB-TSB-W18 for 18-inch ladder, or the CLB-TSB-W24 for 24-inch ladder; high-volume projects can order the CLB-TSB-6 six-piece pack to keep installation crews supplied. Pair these brackets with ladder, bends, and accessories from our Middle Atlantic collection to complete the pathway design.

Key Features

• Steel Construction — Heavy-duty steel fabrication supports populated cable ladder runs along wall pathways.
• Black Zinc Finish — Corrosion-resistant black finish matches rack-room hardware and Middle Atlantic runway systems.
• Broad Ladder Compatibility — Works with most popular cable ladder brands and accessories for flexible specification.
• New and Retrofit Installation — Suitable for both new construction and additions to existing cable runway installations.
• Three Width Options — Available in 12-inch, 18-inch, and 24-inch versions to match standard cable ladder widths.
• Contractor Pack Available — CLB-TSB-6 supplies six 12-inch brackets for larger commercial deployment projects.

Typical Applications

• Broadcast studio equipment and rack rooms with overhead cable runway
• Government space telecom and AV head-end rooms
• House of worship AV equipment closets and amp rooms
• Auditorium control and rack rooms with structured cabling pathways
• Commercial meeting space IT/AV equipment rooms serving conference floors

Technical Specifications

Frequently Asked Questions

Which cable ladder brands work with the CLB-TSB bracket?
Middle Atlantic designed the CLB-TSB to be compatible with most popular cable ladder brands and accessories, so it can support Middle Atlantic CLB-series runway as well as comparable ladder from other manufacturers.

How do I choose between the 12, 18, and 24-inch versions?
Match the bracket width to your cable ladder width: CLB-TSB for 12-inch ladder, CLB-TSB-W18 for 18-inch ladder, and CLB-TSB-W24 for 24-inch ladder.

Can I add these brackets to an existing cable ladder installation?
Yes. The bracket works on both new and existing installations, which makes it practical for adding wall support when expanding pathway capacity in an operating equipment room.

What is the CLB-TSB-6 option?
The CLB-TSB-6 is a 6-piece pack of the 12-inch triangle wall support bracket, intended for integrators and contractors stocking larger commercial installation projects.

How does this bracket fit into a full AV rack integration?
Triangle wall supports carry ladder runs from wall pathways to the top of equipment racks, completing the cable management route between building cabling and rack-mounted AV and IT gear.

Is the CLB-TSB covered by a manufacturer warranty?
Yes, it is backed by Middle Atlantic's manufacturer warranty. Contact Creation Networks for current warranty terms and documentation for your project submittals.

Can Creation Networks help spec a complete cable runway system?
Yes. Our team supports integrators and facilities buyers with product selection across the full Middle Atlantic cable management line, including ladder, bends, supports, and rack accessories.
