Middle Atlantic CBS-ERK-20R - Floor-Friendly Caster Base ERK
Overview

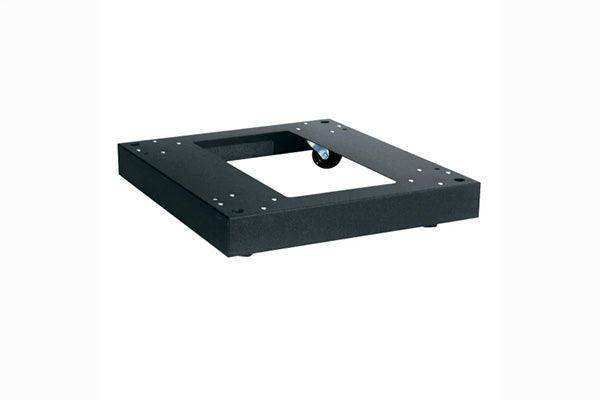

The Middle Atlantic CBS-ERK-20R is a floor-friendly skirted caster base engineered for ERK Series rack systems at 20-inch depth. It enables rack mobility in environments with finished flooring, using synthetic rubber fine floor casters to prevent surface damage. AV integrators, facilities managers, and IT infrastructure teams specify this base for deployments where both rack mobility and floor protection are non-negotiable requirements.
Description
The CBS-ERK-20R bolts to the underside of ERK Series rack frames, converting stationary installations to mobile configurations. The skirted enclosure conceals all caster hardware, maintaining a clean, professional rack appearance consistent with high-finish installation environments. Four fine floor casters are pre-installed at the factory, reducing field assembly time. Each caster is constructed from synthetic rubber to distribute load evenly and prevent marking or scratching of hardwood, tile, vinyl, and other finished surfaces. The base adds 3-3/4 inches to the overall rack height and supports up to 700 pounds of equipment load. Black powder coat finish matches ERK rack system aesthetics.
Key Features
- Designed for Middle Atlantic ERK Series racks at 20-inch depth
- Four pre-installed fine floor casters included
- Synthetic rubber caster construction protects finished flooring
- 700 lb. weight capacity
- Skirted enclosure hides caster hardware
- Adds 3-3/4 inches to overall rack height
- Steel construction with black powder coat finish
- Non-locking caster configuration
Typical Applications
- Corporate AV rooms and boardrooms with finished flooring
- Hospitality deployments in hotel and conference spaces
- Residential AV installations with hardwood or tile
- Education facilities requiring mobile rack positioning
- Any ERK rack deployment where floor protection is required
Technical Specifications
| Attribute | Value |
|---|---|
| Model | CBS-ERK-20R |
| Compatible Rack Series | Middle Atlantic ERK |
| Rack Depth Compatibility | 20 inches |
| Casters | 4 pre-installed, non-locking |
| Caster Material | Synthetic rubber (fine floor) |
| Weight Capacity | 700 lbs. |
| Height Addition | 3-3/4 inches |
| Skirt Design | Full perimeter |
| Material | Steel |
| Finish | Black powder coat |
FAQ
- Will the CBS-ERK-20R damage hardwood floors?
- No. The synthetic rubber fine floor casters are designed specifically to prevent marking or scratching of finished surfaces.
- Are the casters locking?
- The CBS-ERK-20R includes non-locking casters. Contact Creation Networks if locking casters are required for your application.
- What is the maximum load this base supports?
- The CBS-ERK-20R is rated for 700 pounds of equipment load.
- How does this base attach to the rack?
- The base bolts directly to the underside of the ERK rack frame. Casters are pre-installed and no additional tools are required for caster assembly.
