Middle Atlantic CBS-5R - Floor-Friendly Caster Base Slim-5
Overview
The Middle Atlantic CBS-5R is a floor-friendly skirted caster base designed for Slim-5 Series rack systems at 20-inch depth. Built to protect finished floors while enabling rack mobility, it is the preferred solution for corporate, hospitality, and residential AV installations where fine flooring is present. AV integrators and facilities managers rely on the CBS-5R for deployments that balance functionality with aesthetic sensitivity.
Description

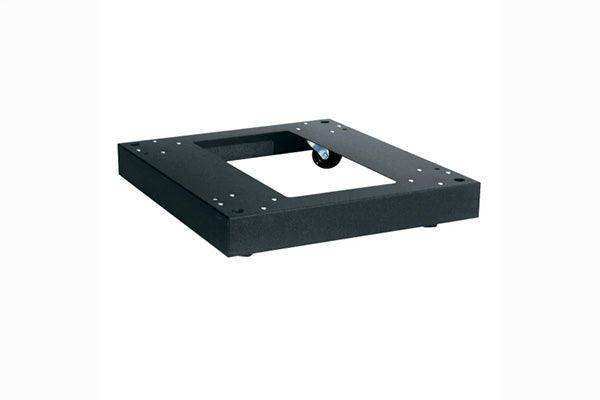

The CBS-5R attaches to the bottom of compatible Slim-5 rack frames, adding mobility without altering the structural or visual profile of the rack system. The skirted design hides the caster hardware, giving the installation a clean, furniture-grade appearance. Four fine floor casters come pre-installed on the base, each constructed from synthetic rubber to distribute load and prevent marking or scratching of hardwood, tile, LVT, and other finished surfaces. The base supports up to 700 pounds of equipment load and adds 3-3/4 inches to the overall rack height. Robust steel construction with a black powder coat finish matches the Slim-5 rack aesthetic.
Key Features
- Designed for Middle Atlantic Slim-5 racks at 20-inch depth
- Four pre-installed fine floor casters included
- Synthetic rubber caster construction protects finished flooring
- 700 lb. weight capacity
- Skirted enclosure hides caster hardware
- Adds 3-3/4 inches to overall rack height
- Steel construction with black powder coat finish
- Non-locking caster configuration
Typical Applications
- Residential AV installations with hardwood or tile floors
- Corporate boardrooms and executive offices with finished flooring
- Hospitality AV deployments in hotel rooms or conference areas
- Education facilities with vinyl composite tile or hardwood
- Any deployment where rack mobility and floor protection are required
Technical Specifications
| Attribute | Value |
|---|---|
| Model | CBS-5R |
| Compatible Rack Series | Middle Atlantic Slim-5 |
| Rack Depth Compatibility | 20 inches |
| Casters | 4 pre-installed, non-locking |
| Caster Material | Synthetic rubber (fine floor) |
| Weight Capacity | 700 lbs. |
| Height Addition | 3-3/4 inches |
| Skirt Design | Full perimeter |
| Material | Steel |
| Finish | Black powder coat |
FAQ
- Will the CBS-5R scratch hardwood floors?
- No. The casters use synthetic rubber construction specifically formulated to protect fine flooring including hardwood, tile, and LVT.
- Are the casters locking?
- The CBS-5R includes non-locking casters. If locking casters are required, contact Creation Networks to discuss options.
- How much does this base add to rack height?
- The CBS-5R adds 3-3/4 inches to the overall height of the Slim-5 rack system.
- Is assembly required?
- The casters come pre-installed. The base bolts to the underside of the rack frame on-site.
