Middle Atlantic CBS-5 SKIRTED CASTER BASE FOR S
Overview

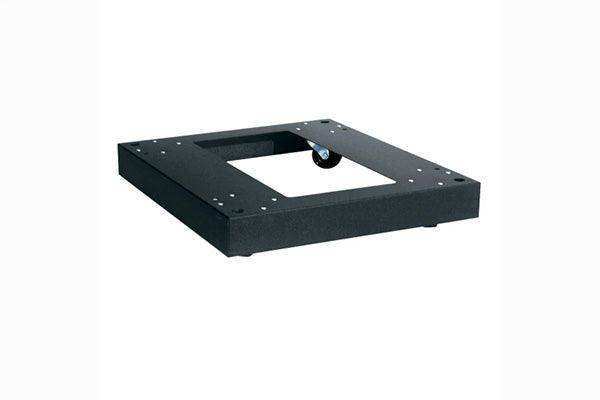

The Middle Atlantic CBS-5 is a skirted caster base purpose-built for Slim-5 Series rack enclosures. It adds rolling mobility to your Slim-5 system while keeping casters hidden behind a steel skirt for a polished, finished look on any installation site.
Description
The CBS-5 bolts to the underside of Slim-5 Series rack systems and raises the overall height by 3-3/4 inches. Four heavy-duty non-locking 3-inch swivel casters arrive pre-installed, making deployment fast and straightforward. The powder-coated steel skirt provides both aesthetic continuity and mechanical protection for the caster assembly. UL Listed in the US and Canada.
Key Features
- Designed specifically for Middle Atlantic Slim-5 Series racks
- 4 pre-installed 3-inch non-locking commercial-grade swivel casters
- Steel skirt conceals and protects the caster mechanism
- Black powder coat finish for consistent rack aesthetics
- Adds 3-3/4 inches to overall system height
- UL Listed (US and Canada)
Typical Applications
- Mobile Slim-5 racks in corporate AV or boardroom environments
- Portable production systems moved between rooms or venues
- Education AV carts requiring frequent repositioning
- Rental staging setups with Slim-5 rack configurations
- Flexible IT deployment where rack mobility is required
Technical Specifications
| Attribute | Value |
|---|---|
| Model | CBS-5 |
| Compatible Series | Slim-5 |
| Caster Type | 3-inch non-locking swivel |
| Number of Casters | 4 (pre-installed) |
| Height Added | 3-3/4 inches |
| Finish | Black powder coat |
| Certifications | UL Listed (US and Canada) |
FAQ
- Is the CBS-5 compatible with all Slim-5 rack heights?
- Yes — the CBS-5 is designed for the full range of Slim-5 Series enclosures. The bolt pattern accommodates all standard Slim-5 footprints.
- Are the casters lockable?
- The CBS-5 ships with non-locking swivel casters. For installations requiring wheel locks, contact Creation Networks to discuss locking caster alternatives.
- How much does the base add to total rack height?
- The CBS-5 adds exactly 3-3/4 inches to the overall rack height. Factor this into rack clearance and ADA pathway planning.
- Does the skirt interfere with airflow?
- The skirt surrounds the caster area at the base only and does not restrict the rack's primary airflow zones, which remain on the front, rear, and top panels of the Slim-5 enclosure.
