Middle Atlantic C3-24-LD1U – C3 24-In Credenza Single Display Mount, Universal

Product Overview

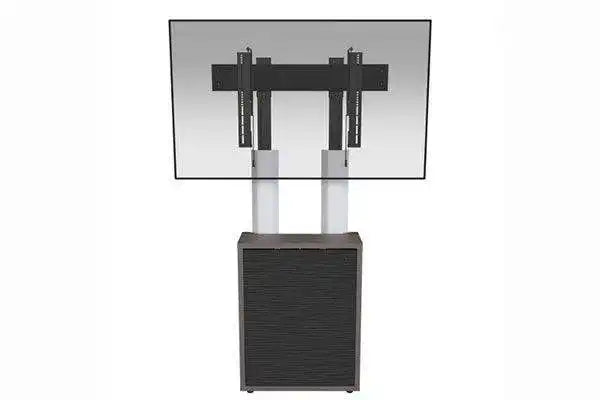

The Middle Atlantic C3-24-LD1U is a universal credenza display mount that converts a 24-inch-high C3 Credenza into a complete conference room AV system. Developed in partnership with Chief, the mount pairs telescoping height adjustment with integrated cable management and a minimal-hardware wall attachment for fast commercial installation. It is compatible with 24-inch-high 1, 2, 3, and 4 bay C3 Credenza frames and woodkits, giving integrators a single display mounting solution that scales across room sizes. For AV designers standardizing on credenza-based systems, the C3-24-LD1U keeps display, electronics, and cabling in one serviceable footprint.

Product Description

Credenza-based AV systems solve a common problem in commercial meeting space design: where to put the rack when there is no equipment closet. The C3-24-LD1U extends that approach by mounting the display directly to the credenza structure, so the display, mount, and equipment enclosure install as one coordinated system. Telescoping uprights set the display mount height during installation, and 6 inches of post-installation fine-tune adjustment let installers dial in exact display placement after the room is built out. The mount attaches to the wall with minimal hardware because the display weight is carried by the C3 Credenza and stabilizing feet, which simplifies wall preparation and reduces structural requirements during AV integration. A 300 lb weight capacity and a universal mounting pattern range of 100x100 to 800x400 cover large commercial displays commonly specified for boardrooms and training rooms. Because the mount uses the Chief Fusion extrusion, it accepts applicable Fusion series accessories, including camera shelves that support Vaddio cameras for video conferencing deployments. White paintable upright covers are included, allowing the uprights to be color-matched to the wall so the mount blends into the room. The result is a clean, integrated display installation that pairs with the broader Middle Atlantic product line available at Creation Networks.

Key Features

• C3 Credenza Compatibility — Works with 24-inch-high 1, 2, 3, and 4 bay C3 Credenza frames and woodkits, covering a range of room sizes from a single SKU.
• Telescoping Uprights — Height-adjustable uprights set display position during installation without custom fabrication.
• 6-Inch Fine-Tune Adjustment — Post-installation vertical adjustment lets installers achieve exact display placement after the system is assembled.
• Minimal Wall Hardware — Display weight is supported by the credenza and stabilizing feet, reducing wall attachment requirements and speeding installation.
• 300 lb Weight Capacity — Supports large commercial displays specified for boardrooms, training rooms, and all-hands spaces.
• Universal Mounting Pattern — Accommodates display mounting patterns from 100x100 up to 800x400.
• Chief Fusion Accessory Support — Built on the Chief Fusion extrusion and compatible with applicable Fusion series accessories, including camera shelves for Vaddio cameras.
• Paintable Upright Covers — Included white covers can be painted to match the wall so the mount disappears into the room design.

Typical Applications

• Boardrooms
• Conference rooms
• Training rooms
• Commercial meeting spaces
• Multi-purpose rooms
• Government spaces
• All-hands rooms

Technical Specifications

Frequently Asked Questions

Which C3 Credenzas is the C3-24-LD1U compatible with?
It is compatible with 24-inch-high 1, 2, 3, and 4 bay C3 Credenza frames and woodkits. For 32-inch-high credenzas, see the corresponding 32-inch display mount model.

What display mounting patterns does this mount support?
The universal interface accommodates mounting patterns from 100x100 up to 800x400, covering most large commercial displays.

Does the wall need to carry the display weight?
No. The mount attaches to the wall with minimal hardware, and the display weight is supported by the C3 Credenza and the stabilizing feet, which simplifies wall preparation during installation.

Can I add a camera shelf for video conferencing?
Yes. The mount uses the Chief Fusion extrusion and is compatible with applicable Fusion series accessories, including camera shelves that support Vaddio cameras.

Can the display height be adjusted after installation?
Yes. In addition to the telescoping uprights, the mount provides 6 inches of post-installation fine-tune adjustment for precise display placement.

Is the C3-24-LD1U covered by a manufacturer warranty?
Yes. Middle Atlantic products are backed by a manufacturer warranty. Contact Creation Networks for current warranty terms for this model.

Can Creation Networks help with system design and integration?
Yes. Creation Networks supports commercial AV deployments and can assist with specifying the C3 Credenza, display mount, and related Middle Atlantic equipment for your project.
