Middle Atlantic BGR-ISO-Z4 – BGR Seismic Isolation Kit
Product Overview

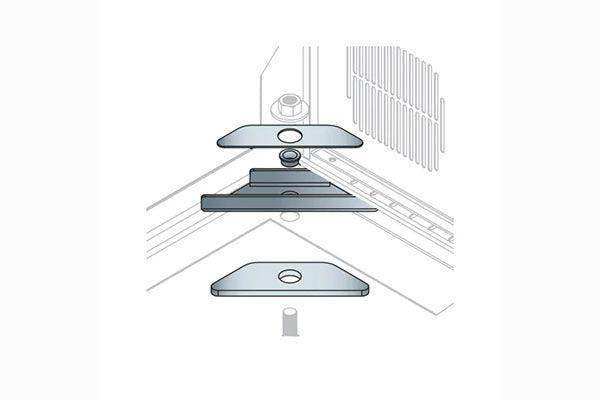

The Middle Atlantic BGR-ISO-Z4 is a seismic isolation kit for BGR Series racks that combines electrical isolation from the floor with seismic-rated anchoring. The kit includes insulating pads and shoulder washers to break the electrical path between rack and slab, plus an anchoring bracket set that supports a seismic-certified installation. One kit is required per rack.
Product Description
Broadcast and critical-infrastructure facilities often have two competing requirements at the rack base: the rack must be anchored to withstand seismic events, yet electrically isolated from the building floor to control ground loops and stray current paths. The BGR-ISO-Z4 addresses both in a single kit for BGR Series racks. Insulating pads install between the rack base and the floor, while shoulder washers isolate the anchoring hardware itself, so the mechanical connection to the slab does not create an electrical one. The included anchoring bracket set provides the mounting points needed to support a seismic-certified installation, keeping the loaded rack secured in zones where code requires engineered anchorage. Maintaining floor isolation matters in facilities with single-point grounding schemes, where an unintended rack-to-slab bond can introduce hum, noise, or grounding faults into sensitive signal paths. Because the kit is engineered around the BGR rack base, installation integrates cleanly with the enclosure rather than relying on generic isolation materials. Specify one BGR-ISO-Z4 kit for each BGR rack in the project. Site-specific anchor hardware and engineering requirements should be confirmed with the project's structural documentation.
Key Features
- Seismic Mounting Plus Electrical Isolation — Combines both requirements in one engineered kit.
- Electrically Isolates the Rack from the Floor — Helps maintain controlled grounding schemes in technical facilities.
- Insulating Pads and Shoulder Washers — Break the electrical path at the base and at the anchor hardware.
- Seismic Anchoring Bracket Set — Supports a seismic-certified installation of the loaded rack.
- One Kit Per Rack — Specify a kit for each BGR Series rack in the installation.
Technical Specifications
| Model | BGR-ISO-Z4 |
|---|---|
| Brand | Middle Atlantic Products (Legrand AV) |
| Product Type | Seismic isolation kit |
| Compatibility | BGR Series racks |
| Function | Electrical isolation from floor with seismic mounting |
| Kit Contents | Insulating pads, shoulder washers, anchoring bracket set |
| Quantity Required | One set per rack |
